Home / Products / Sport and fitness / Street workout / CALIFORNIA SET

Product code:

CALIFORNIA SET

  • 12 y
  • 2.2 m
  • 4.9 m
  • 8.2 m
  • 2.7 m
  • TUV Logo
+

    Specifications-

    Technical information

    Width of structure4.9 m
    Length of structure8.2 m
    Height of structure2.7 m
    Max. fall height2.2 m
    Recommended age of children12+
    For simultaneous use by several children6

    Product description

    The product consists of: 2 horizontal ladders, a vertical ladder, triple parallel bars, a monkey bar, 2 chin pull bars, a cross bar, chin pull and back muscle bars of various grip widths and directions. The construction of the device is made of vertical steel profiles measuring 80 x 80 mm with a wall thickness of 5 mm, and the training devices are attached to it with a bolt connection. Material: Powder-coated metal; hot-dip galvanised and powder-coated on request. The equipment is fixed to the ground by concreting, and an anchor bolt connection is available as a special solution. The set is TÜV certified according to the standard EN 16630: 2015.

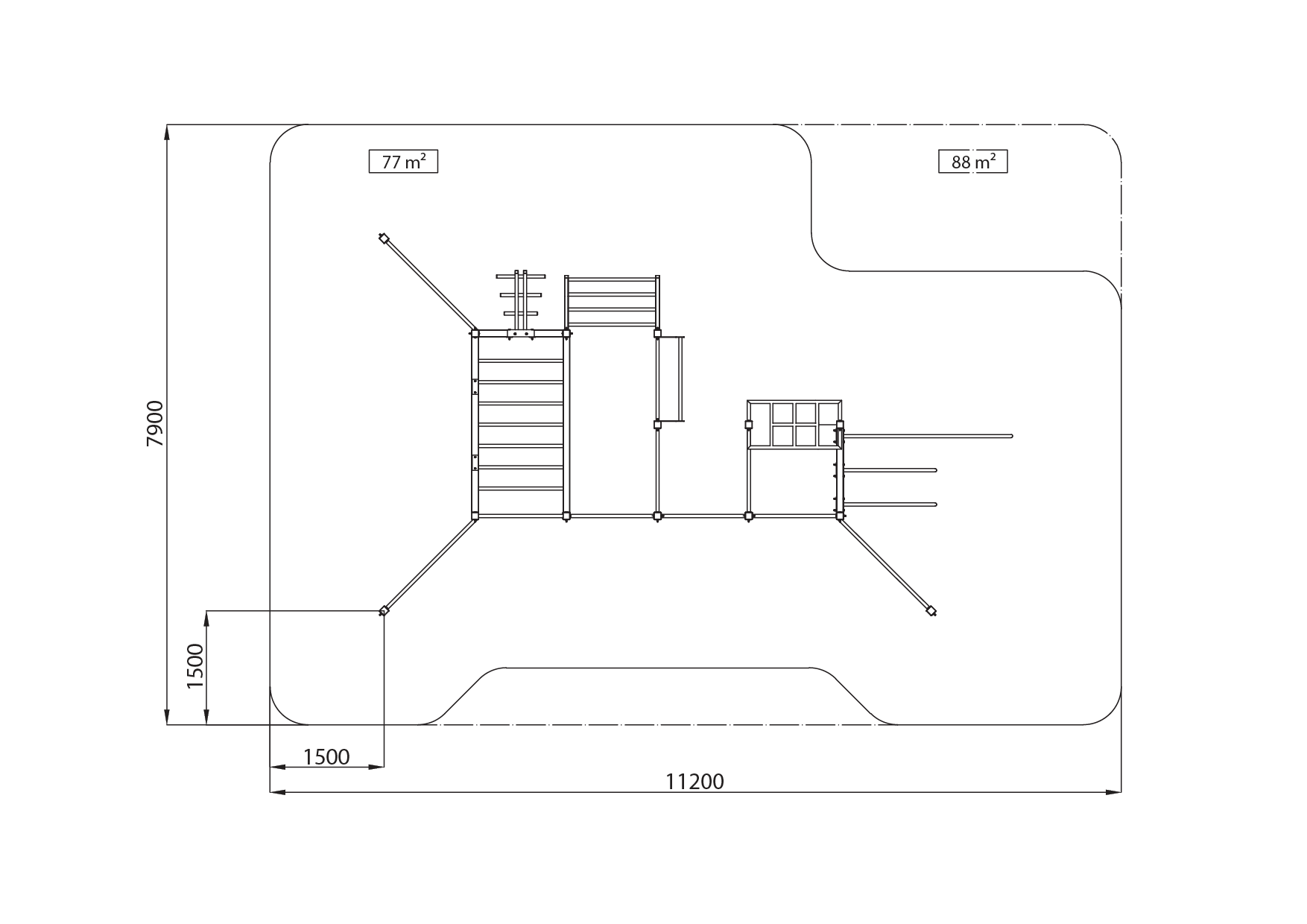

    Safety area
