Product code: LIND5 MF

Climbing frame JACKDAW

  • 3 y
  • 1.1 m
  • 1.01 m
  • 7.72 m
  • 2.57 m
  • TUV Logo
+

Specifications-

Technical information

Safety area width4.01 m
Safety area length10.72 m
Width of structure1.01 m
Length of structure7.72 m
Height of structure2.57 m
Max. fall height1.1 m
Recommended age of children3+
For simultaneous use by several children1-18

Product consists of

Climbing nets1 pcs
16 mm six-strand PES cover braided steel ropes
Slopes1 pcs
HDPE plastic
Panels/Plates2 pcs
HDPE plastic

Product description

Climbing frame JACKDAW helps children learn what their bodies are capable of, develop coordination skills and climb as high as their abilities allow.
Product frame, support beams and metal details are made of hot-dipped galvanized steel, all fixing accessories from stainless steel. All side panels and ramp are made of 15 mm HDPE. The net has pressed aluminum connectors. Product’s ground fixings are made of hot-dip galvanized metal and as standard solution it is concreted into the ground.

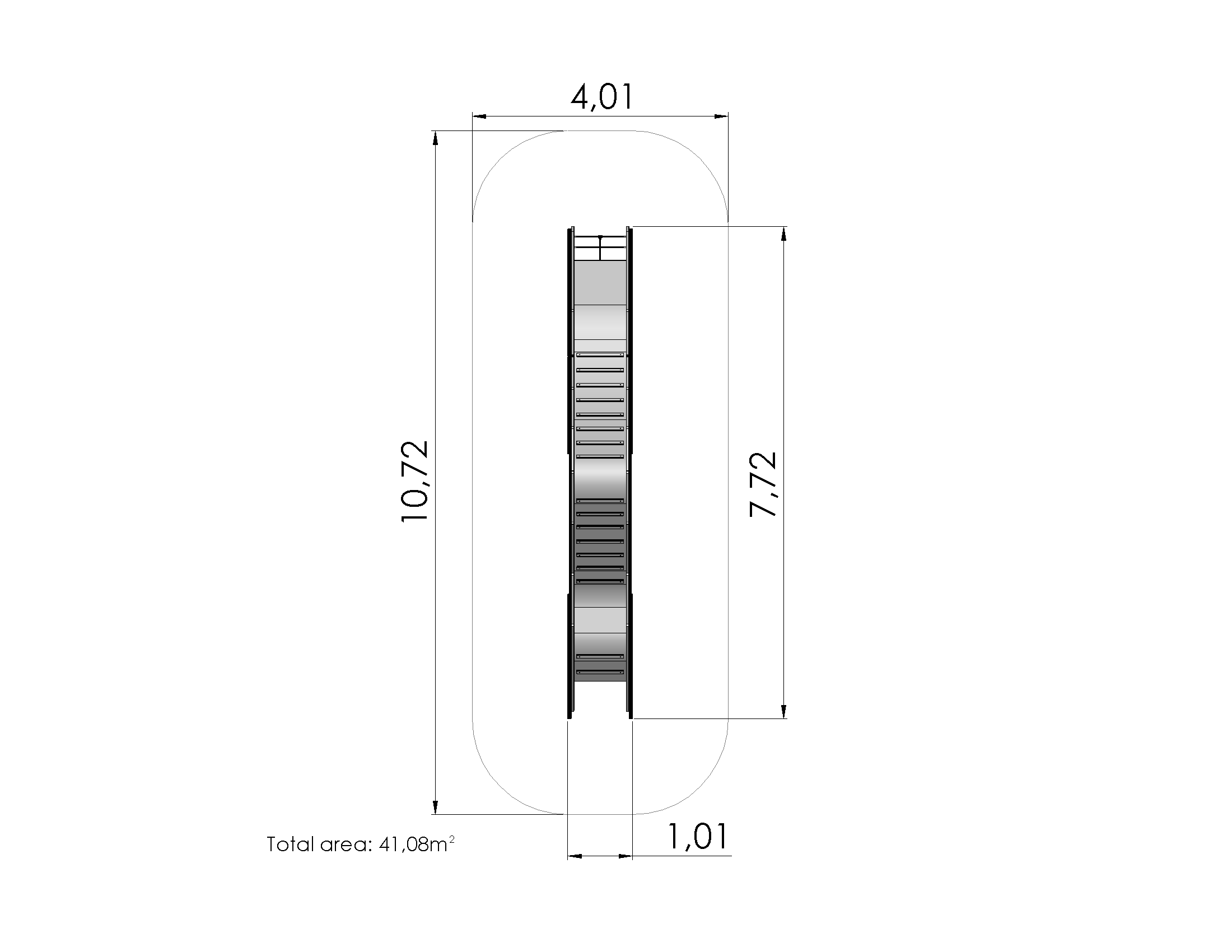

Safety area

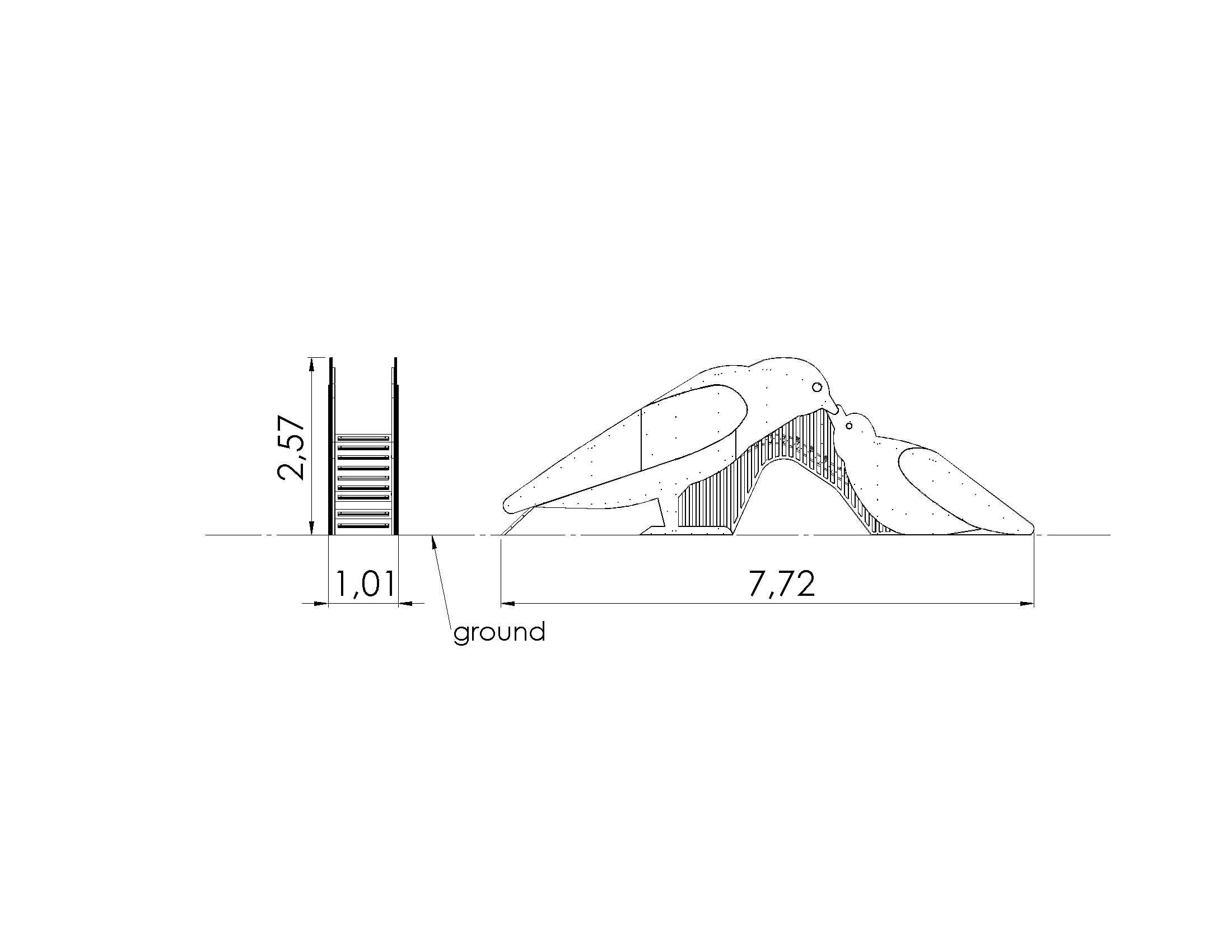

Side view

Downloads+

Material+

Installation info+
