Home / Products / Series / OCTO series / Climbing frame OCTO kid 3

Product code:

Climbing frame OCTO kid 3

  • 3 y
  • 0.95 m
  • 2.83 m
  • 4.52 m
  • 1.91 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width5.83 m
    Safety area length7.52 m
    Width of structure2.83 m
    Length of structure4.52 m
    Height of structure1.91 m
    Max. fall height0.95 m
    Recommended age of children3+
    For simultaneous use by several children1-6

    Product consists of

    Platforms1 pcs with a height 0.95 m
    Slides2 pcs with a height 0.95 m
    Stainless-steel, HDPE plastic sides
    Climbing nets2 pcs
    16 mm six-strand PES cover braided steel ropes

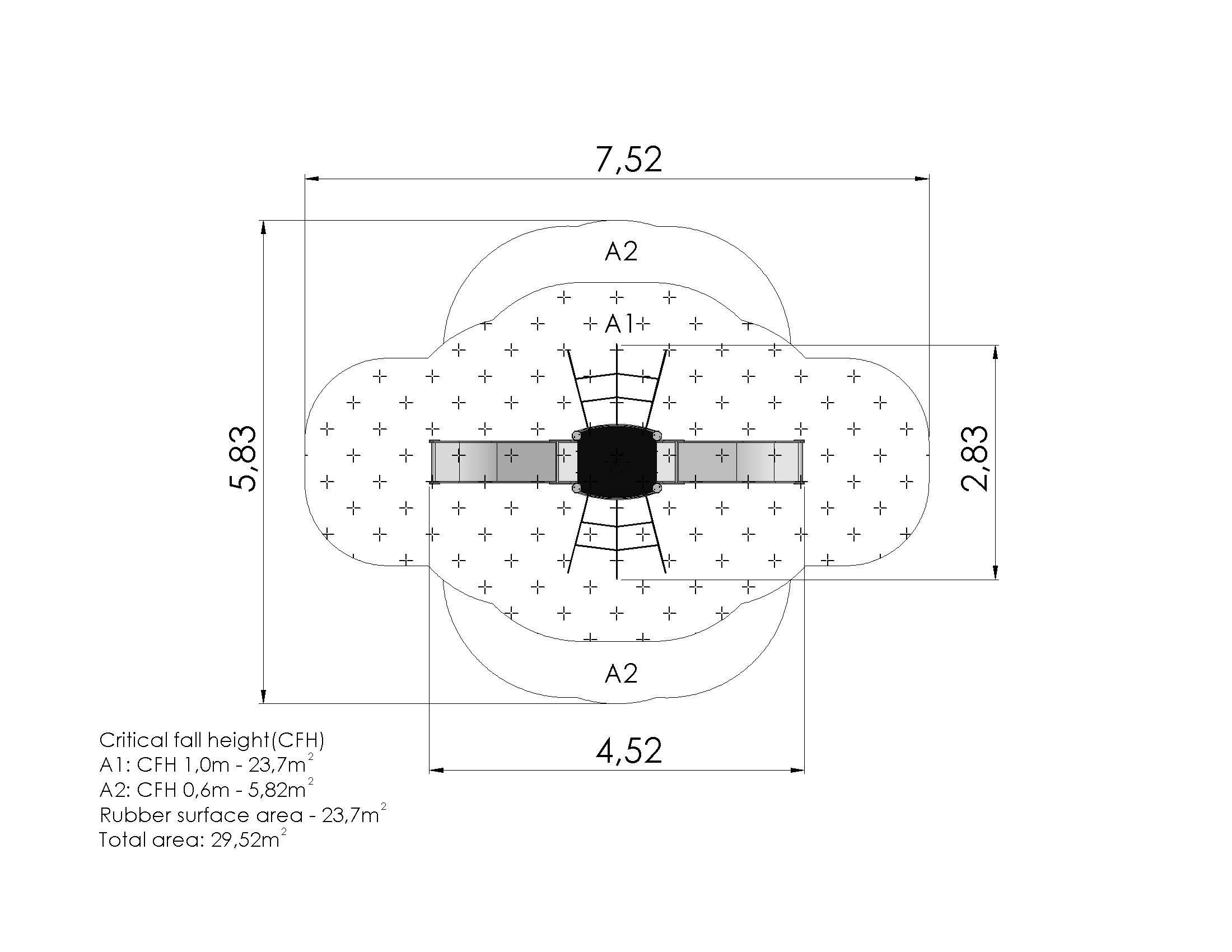

    Safety area

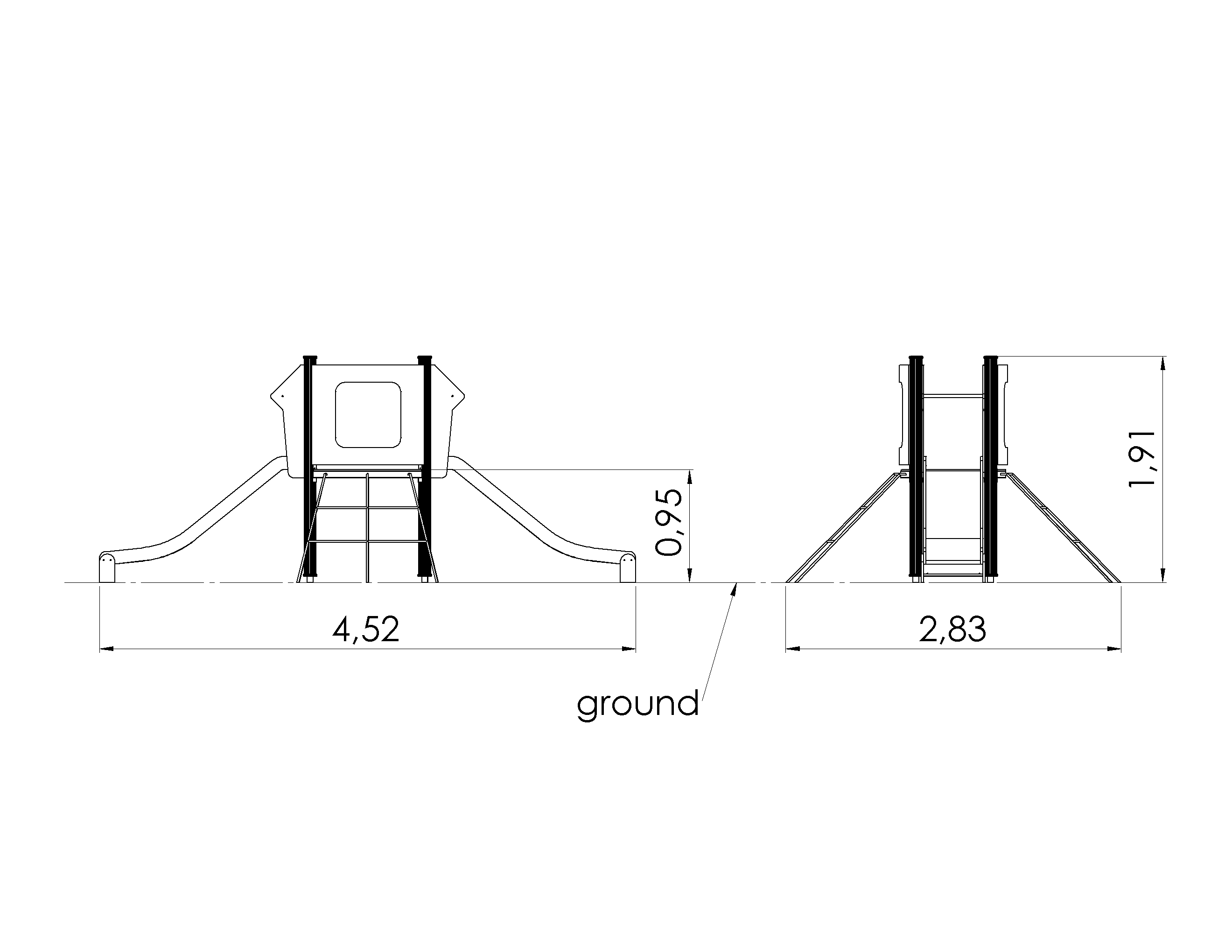

    Side view

    Downloads+

    Material+

    Installation info+
