Product code:

Climbing frame SNOW CRAB

  • 3 y
  • 1.8 m
  • 5.74 m
  • 5.91 m
  • 2.94 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width8.74 m
    Safety area length9.41 m
    Width of structure5.74 m
    Length of structure5.91 m
    Height of structure2.94 m
    Max. fall height1.8 m
    Recommended age of children3+
    For simultaneous use by several children1-15

    Product consists of

    Platforms1 pcs with a height 1.55 m
    Slides1 pcs with a height 1.55 m
    Climbing nets2 pcs
    Slopes1 pcs
    Play corners1 pcs

    Product description

    Climbing structure SNOW CRAB is shaped like a crab that is found in the cold northern regions. Accessing the crab from the back, it starts with balancing on a plate with spring and the climbing up a wobbly rubber belt ramp with climbing grips and ends with a slide that looks like the crabs pincher claws on their frontmost pair of legs. The middle pair of legs hold two vertical nets and next to them two ladders with curved rungs. The crab also has a control system hidden under the platform - can the massive crab be a robot instead? Who knows... let the kids imagination run wild on this amazing playground structure.
    Material:The platforms are made of slip-proof 19mm rubber coated HDPE platic. Posts are made from powder coated aluminium. Rungs and springs are made from galvanized and powder coated steel. All fixing accessories from stainless steel. All side panels are made of 15 mm HDPE. The slide has got a stainless-steel sliding surface, which can be replaced by HDPE in case requested. Rubber belt is made of 11mm PAH free rubber mat with textile inlay. Product’s ground fixings are made of hot-dip galvanized metal and as standard solution it is concreted into the ground.

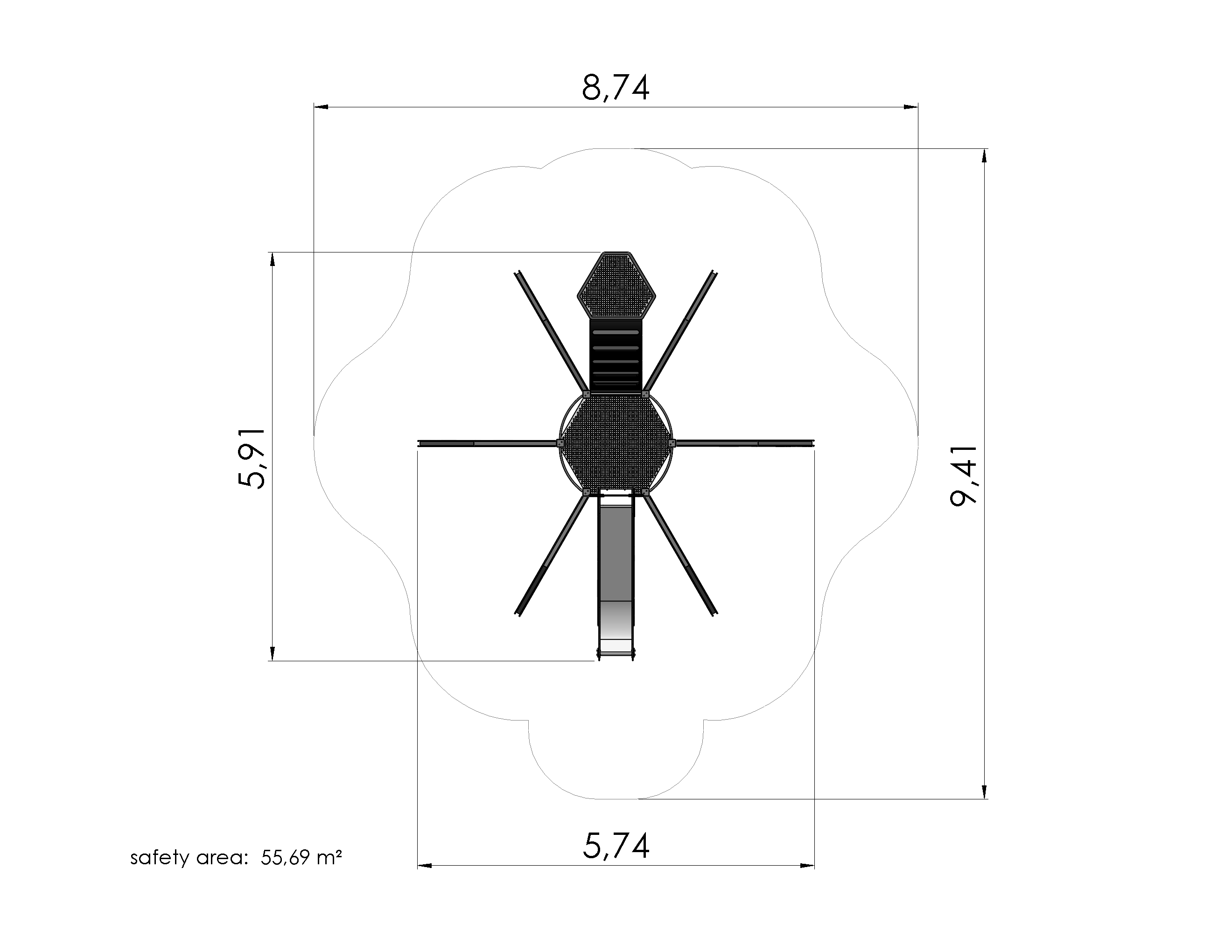

    Safety area

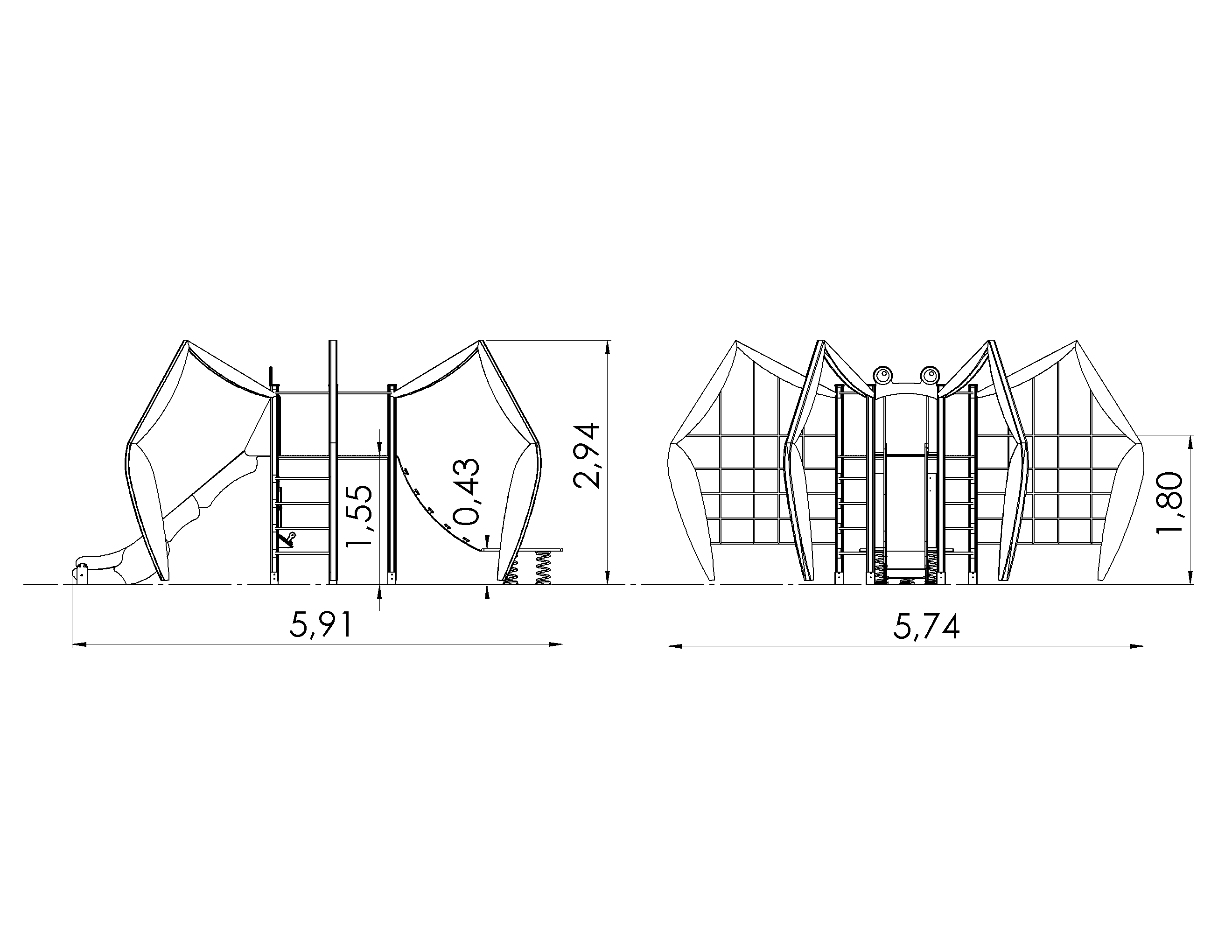

    Side view
