Home / Products / Series / TRIBUTE TO WILDLIFE / Embankment slide FOX

Product code:

Embankment slide FOX

  • 1 y
  • 1 m
  • 0.59 m
  • 3.8 m
  • 3.55 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width3.59 m
    Safety area length7.3 m
    Width of structure0.59 m
    Length of structure3.8 m
    Height of structure3.55 m
    Max. fall height1 m
    The product needs a safety surface
    Recommended age of children1+
    For simultaneous use by several children1-3

    Product consists of

    Slides1 pcs with a height 1.55 m

    Product description

    Slope slide FOX is a 1.55 metre long slide with a platform, suitable for slopes. Shaped like a fox looking into the sky.
    Product frame, support beams and metal details are made of hot-dipped galvanized steel, all fixing accessories from stainless steel. All side panels are made of 15 mm HDPE. The slide has got a stainless-steel sliding surface, which can be replaced by HDPE in case requested. Product’s ground fixings are made of hot-dip galvanized metal and as standard solution it is concreted into the ground.

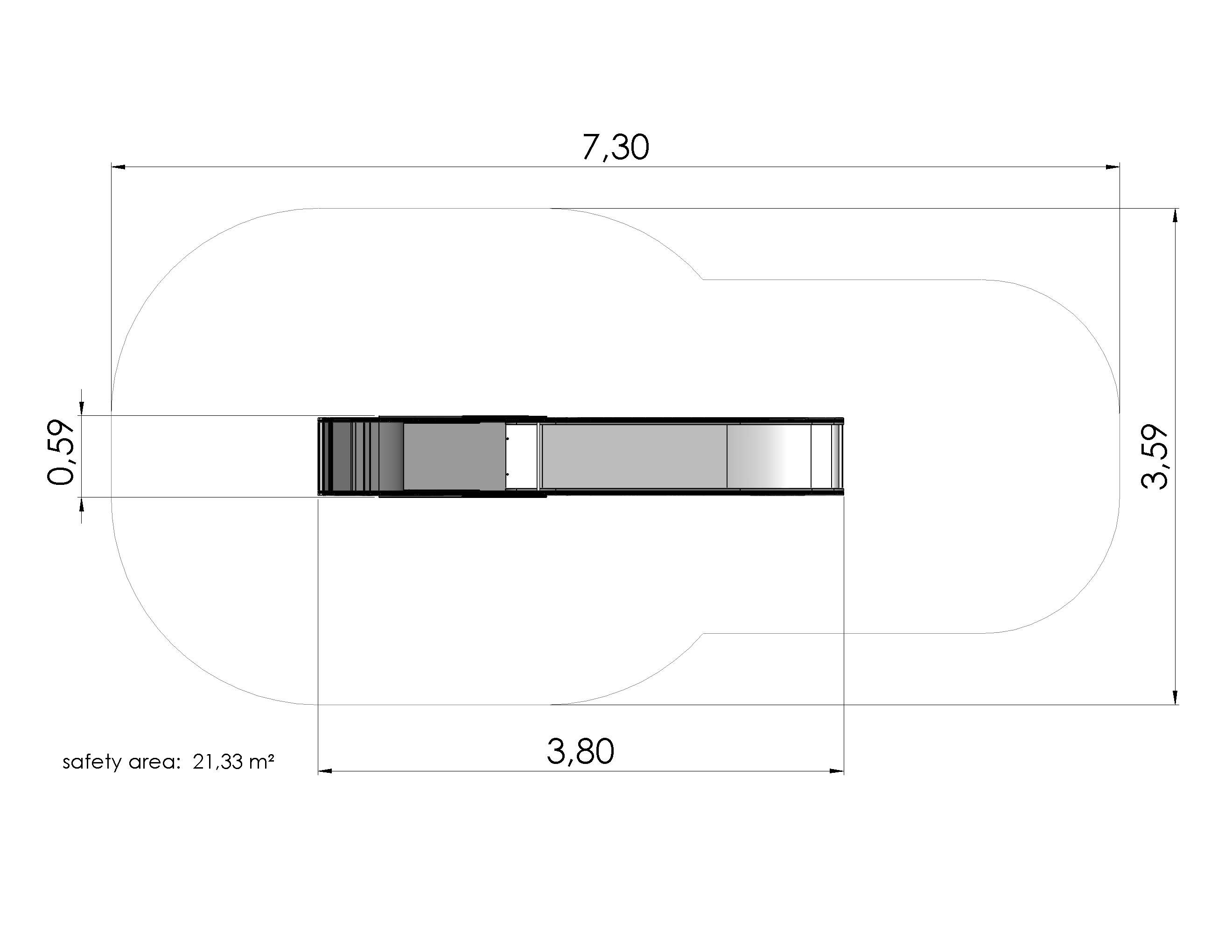

    Safety area

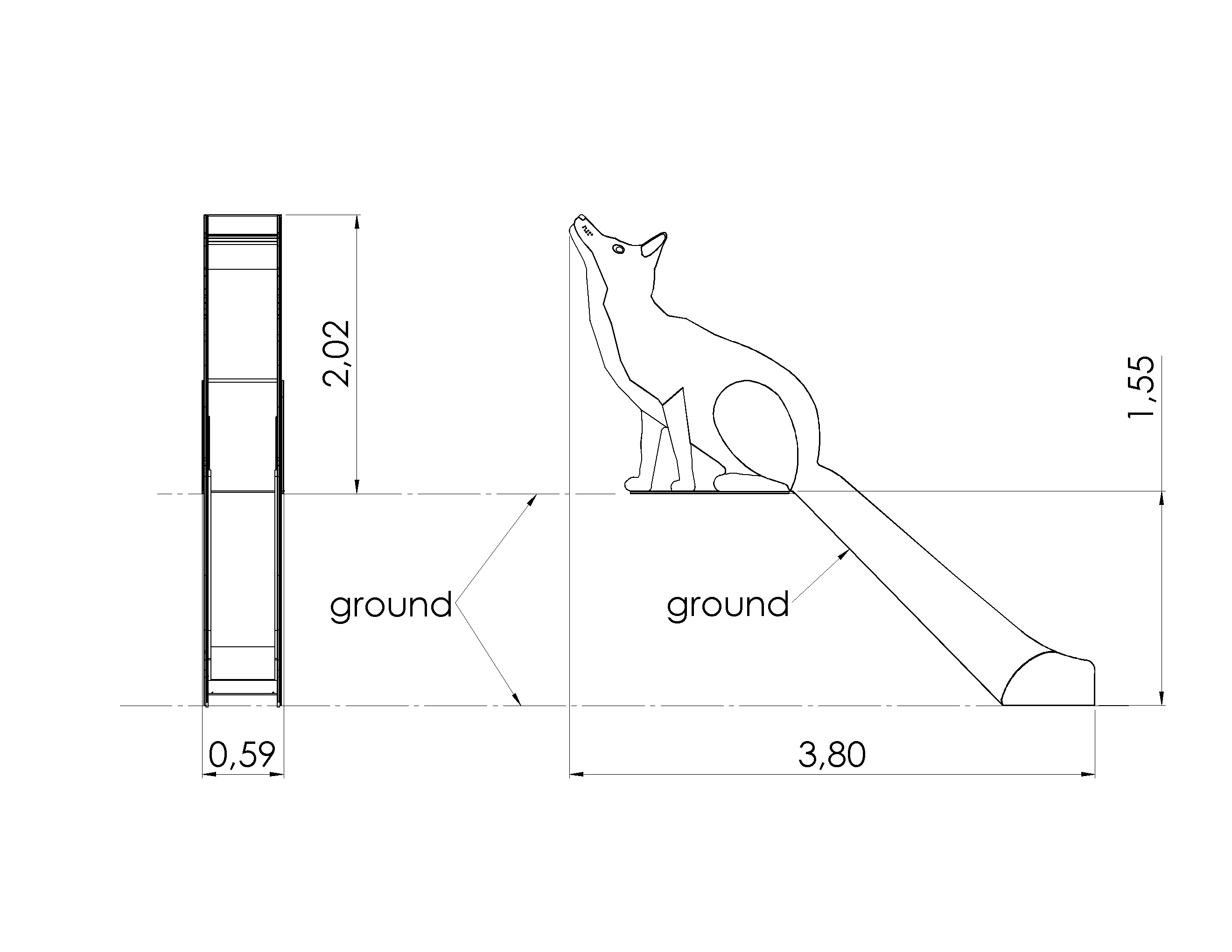

    Side view
