Product code:

Play centre CARLOS

  • 5 y
  • 2.92 m
  • 1.2 m
  • 6.16 m
  • 3.26 m
  • TUV Logo

Colour options

Material

+

    Specifications-

    Technical information

    Safety area width5.97 m
    Safety area length9.63 m
    Width of structure1.2 m
    Length of structure6.16 m
    Height of structure3.26 m
    Max. fall height2.92 m
    The product needs a safety surface
    Recommended age of children5+
    For simultaneous use by several children3-6

    Product consists of

    Platforms1 pcs with a height 2.15 m
    Slides1 pcs with a height 2.15 m
    Climbing walls1 pcs
    Ladders1 pcs
    Posts6 pcs
    Panels/Plates1 pcs
    Tubes11 pcs

    Product description

    A play centre with a platform, a slide and a horizontal ladder. The platform can be accessed via the vertical ladder or the horizontal ladder, which offers a challenge to climb up to the platform and slide without stepping down.

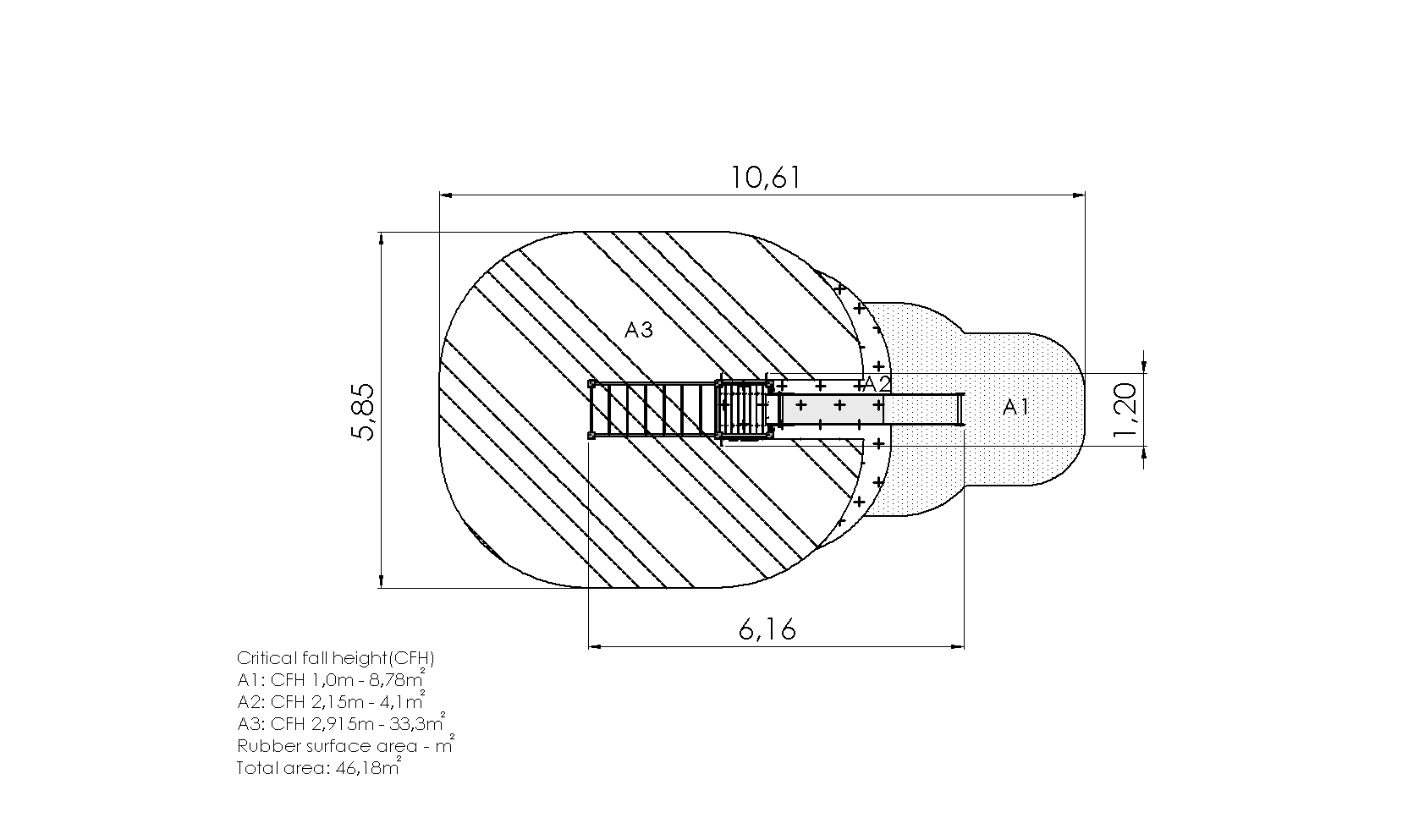

    Safety area

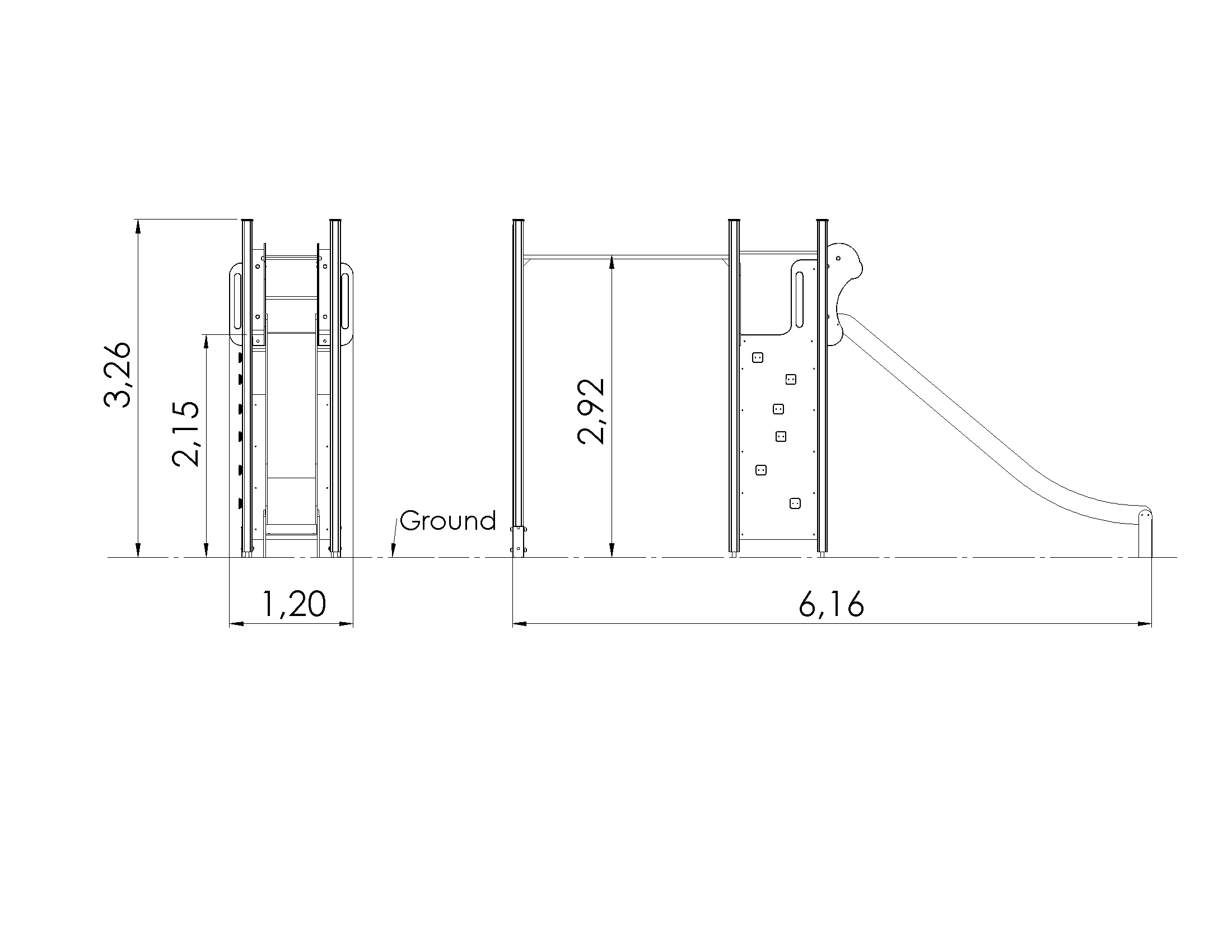

    Side view
