Home / Products / Playgrounds / Play centres / Play Centre CONRAD

Product code: LM219 FORP PE

Play Centre CONRAD

  • 4 y
  • 1.55 m
  • 3.65 m
  • 4.44 m
  • 3.82 m
  • TUV Logo

Colour options

Material

+

Specifications-

Technical information

Safety area width6.65 m
Safety area length7.94 m
Width of structure3.65 m
Length of structure4.44 m
Height of structure3.82 m
Max. fall height1.55 m
The product needs a safety surface
Recommended age of children4+
For simultaneous use by several children4-8

Product consists of

Platforms2 pcs with a height 1.55 m
Plastic covered laminated wood
Roofs1 pcs
HDPE plastic
Slides1 pcs with a height 1.55 m
Stainless-steel, HDPE plastic sides
Climbing nets1 pcs
16 mm six-strand PES cover braided steel ropes
Bridges1 pcs
Fireman poles1 pcs
Galvanized and powder-coated steel
Posts6 pcs
Laminated wood
Panels/Plates3 pcs
HDPE plastic
Tubes3 pcs
Galvanized and powder coated steel

Product description

Play centre with two platforms, accessed via an arched path or a net slope. A slide a the fireman’s pole offer a way to slide down. The side panels of the play centre can be switched for various activity walls or thematic printed panels (animals, birds, fish, trees, berries, etc.). The design of the panels will be finalised with the client during ordering.

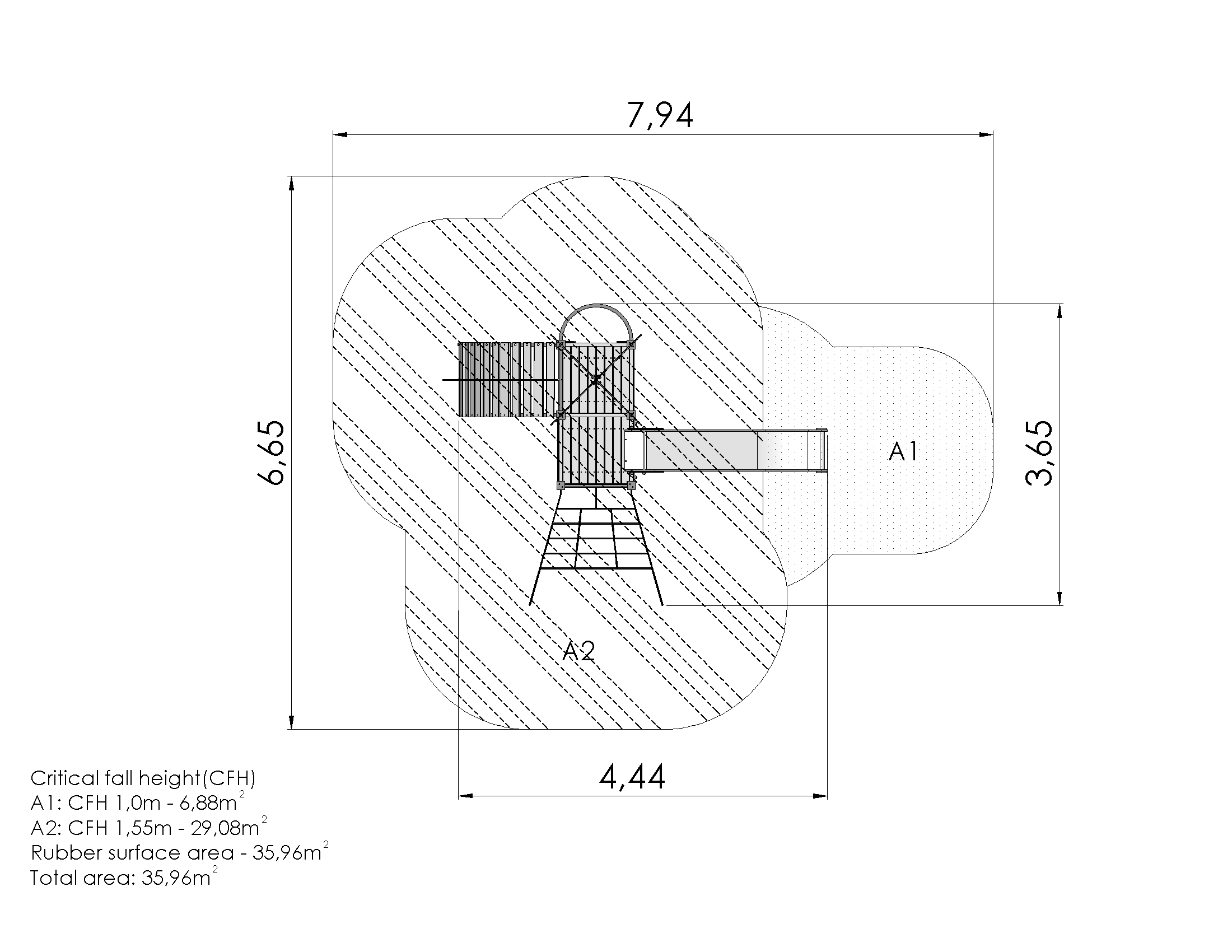

Safety area

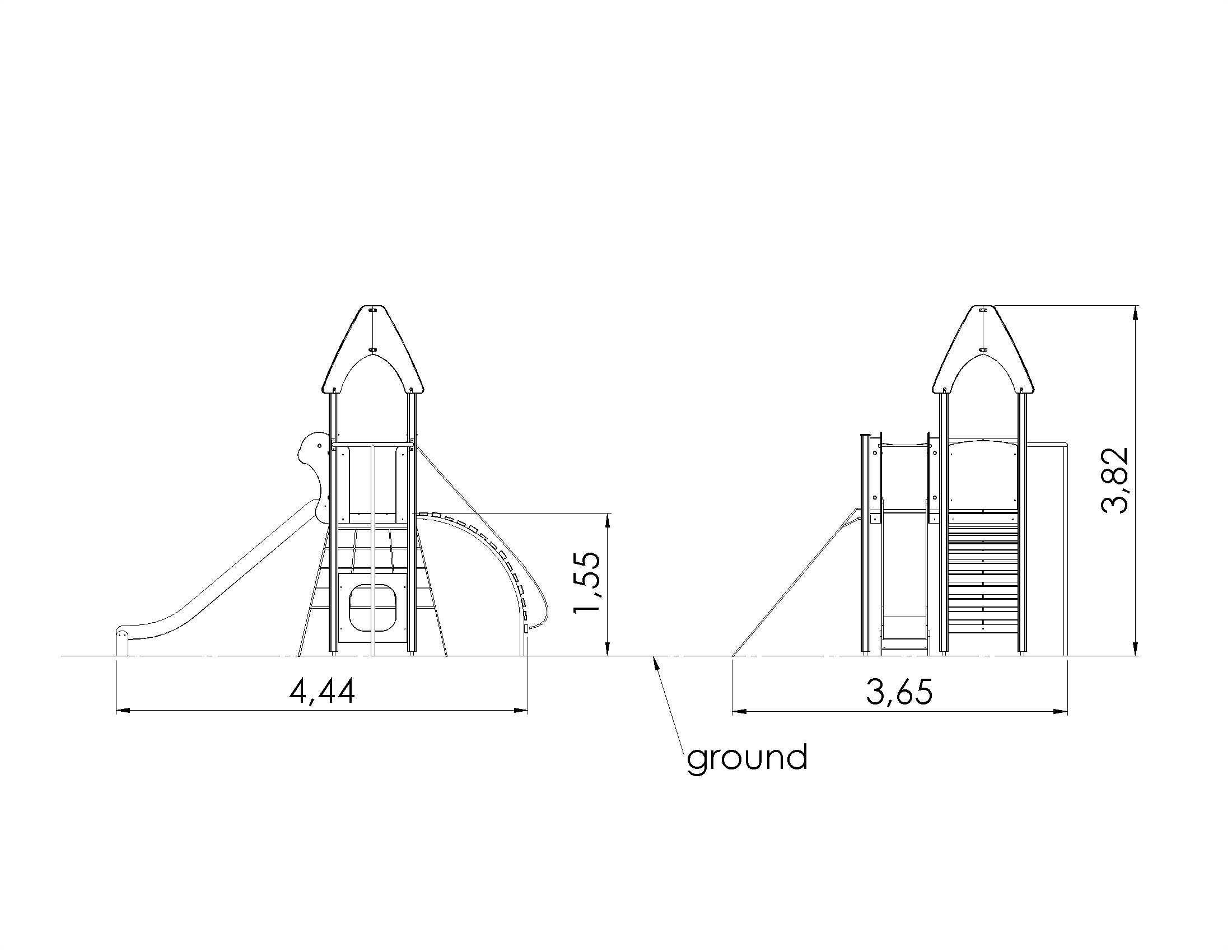

Side view

Downloads+

Material+

Installation info+
