Home / Products / Playgrounds / Play centres / Play Centre HECTOR

Product code:

Play Centre HECTOR

  • 4 y
  • 1.92 m
  • 4.38 m
  • 10.75 m
  • 3.47 m
  • TUV Logo

Colour options

Material

+

    Specifications-

    Technical information

    Safety area width8.24 m
    Safety area length12.19 m
    Width of structure4.38 m
    Length of structure10.75 m
    Height of structure3.47 m
    Max. fall height1.92 m
    Recommended age of children4+
    For simultaneous use by several children4-8

    Product consists of

    Platforms1 pcs with a height 1.55 m
    Platforms1 pcs with a height 1.2 m
    Roofs1 pcs
    Slides1 pcs with a height 1.55 m
    Climbing walls2 pcs
    Climbing nets1 pcs
    Ladders2 pcs
    Bridges1 pcs
    Slopes1 pcs
    Activity panels1 pcs
    Posts15 pcs
    Beams2 pcs
    Panels/Plates2 pcs
    Grips for hands and/or feet7 pcs
    Tubes8 pcs

    Product description

    A versatile play centre with two platforms, a slide and two swing sets. A ladder and a rock climbing slope offer a way up to the platforms, a slide offers a way down from the higher platform. The platforms are connected by a balance bridge with moving steps. A strong metal beam is attached to the play centre, which holds two aluminium reinforced rubber swing seats (swing sets KRK2 are included in the price of this product). An adjoined climbing complex of several net walls, a horizontal ladder, a rock climbing wall and an arched ladder help develop dexterity and climbing skills. The side panels of the play centre can be switched for various activity walls or thematic printed panels (animals, birds, fish, trees, berries, etc.). The design of the panels will be finalised with the client during ordering.

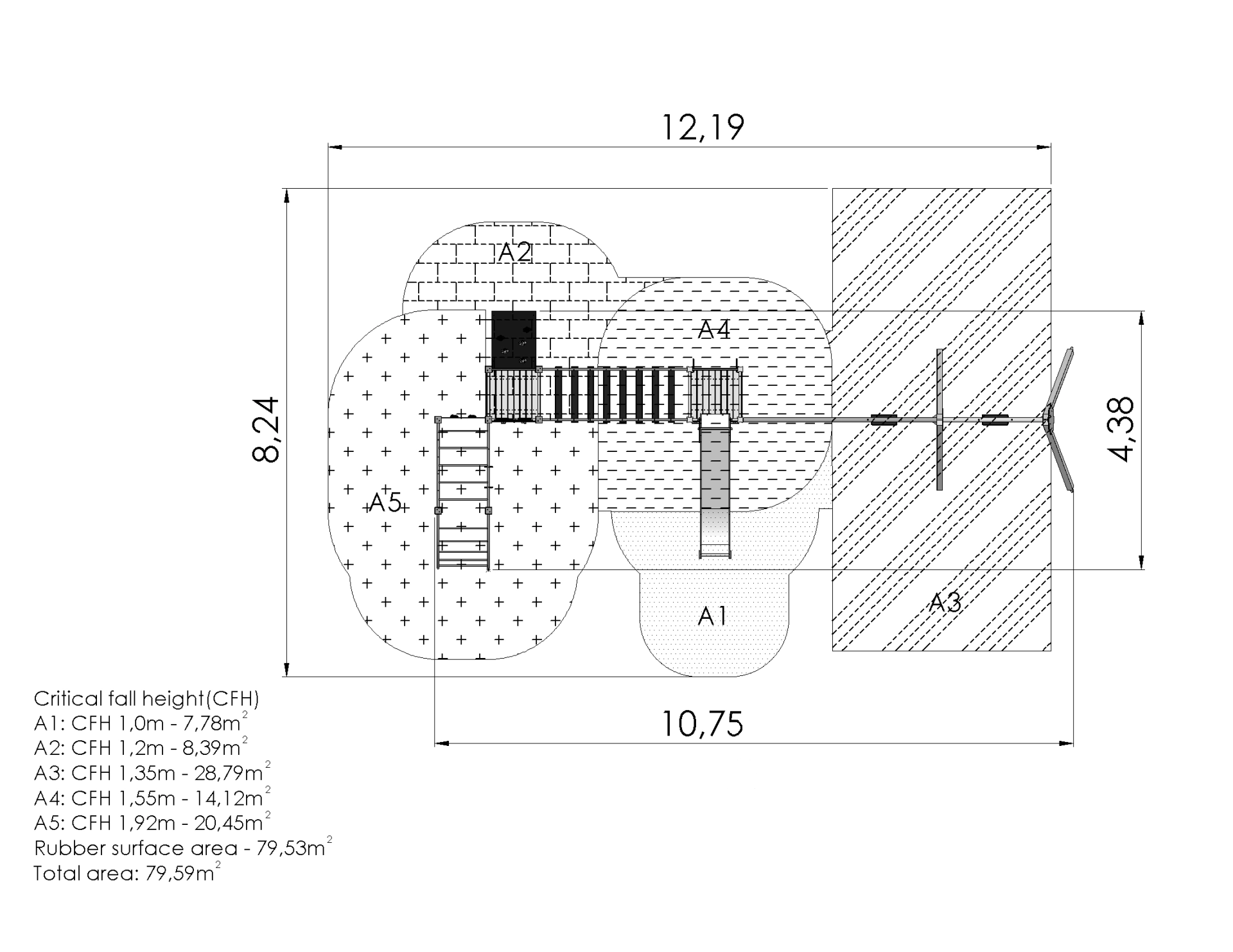

    Safety area

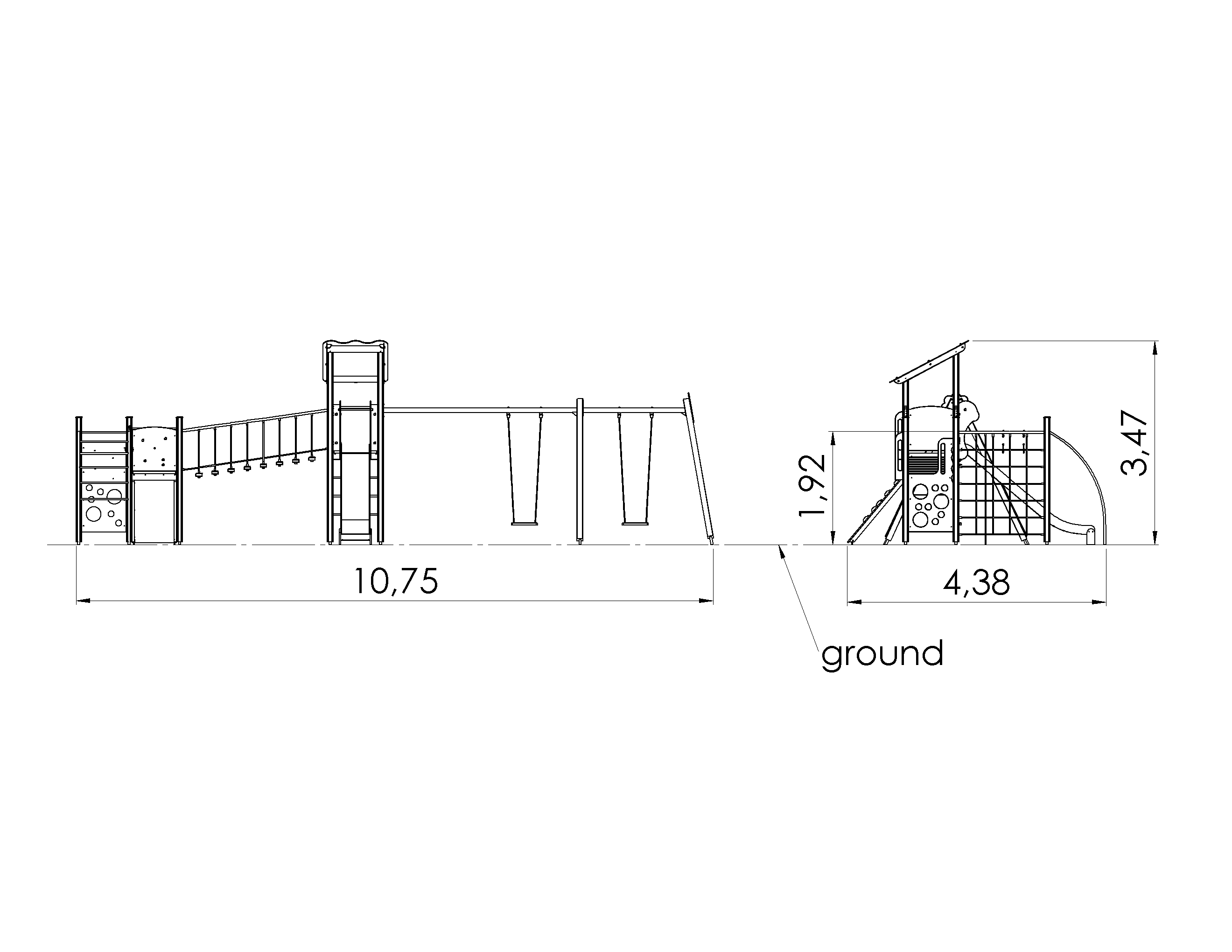

    Side view

    Downloads+

    Material+

    Installation info+
