Play Centre ISABELLA

  • 1 y
  • 0.95 m
  • 4.69 m
  • 4.81 m
  • 3.36 m
  • TUV Logo

Colour options

Material

+

    Specifications-

    Technical information

    Safety area width7.69 m
    Safety area length7.81 m
    Width of structure4.69 m
    Length of structure4.81 m
    Height of structure3.36 m
    Max. fall height0.95 m
    Recommended age of children1+
    For simultaneous use by several children5-10

    Product consists of

    Platforms3 pcs with a height 0.55 m
    Platforms1 pcs with a height 0.95 m
    Roofs1 pcs
    Slides1 pcs with a height 0.95 m
    Slides1 pcs with a height 0.55 m
    Climbing nets1 pcs
    Tunnels1 pcs
    Stairs with handrails1 pcs
    Activity panels1 pcs
    Posts12 pcs
    Panels/Plates7 pcs
    Tubes3 pcs

    Product description

    A play centre with four platforms, a tunnel and two slides. Stairs with handrails lead to the lower platform, which is equipped with an activity panel. A crawl tunnel leads to the next platform where a slide offers a way down. A sloping net bridge leads to the higher platform with a roof, where the other slide provides a way down. The side panels of the play centre can be switched for various activity walls or thematic printed panels (animals, birds, fish, trees, berries, etc.). The design of the panels will be finalised with the client during ordering.

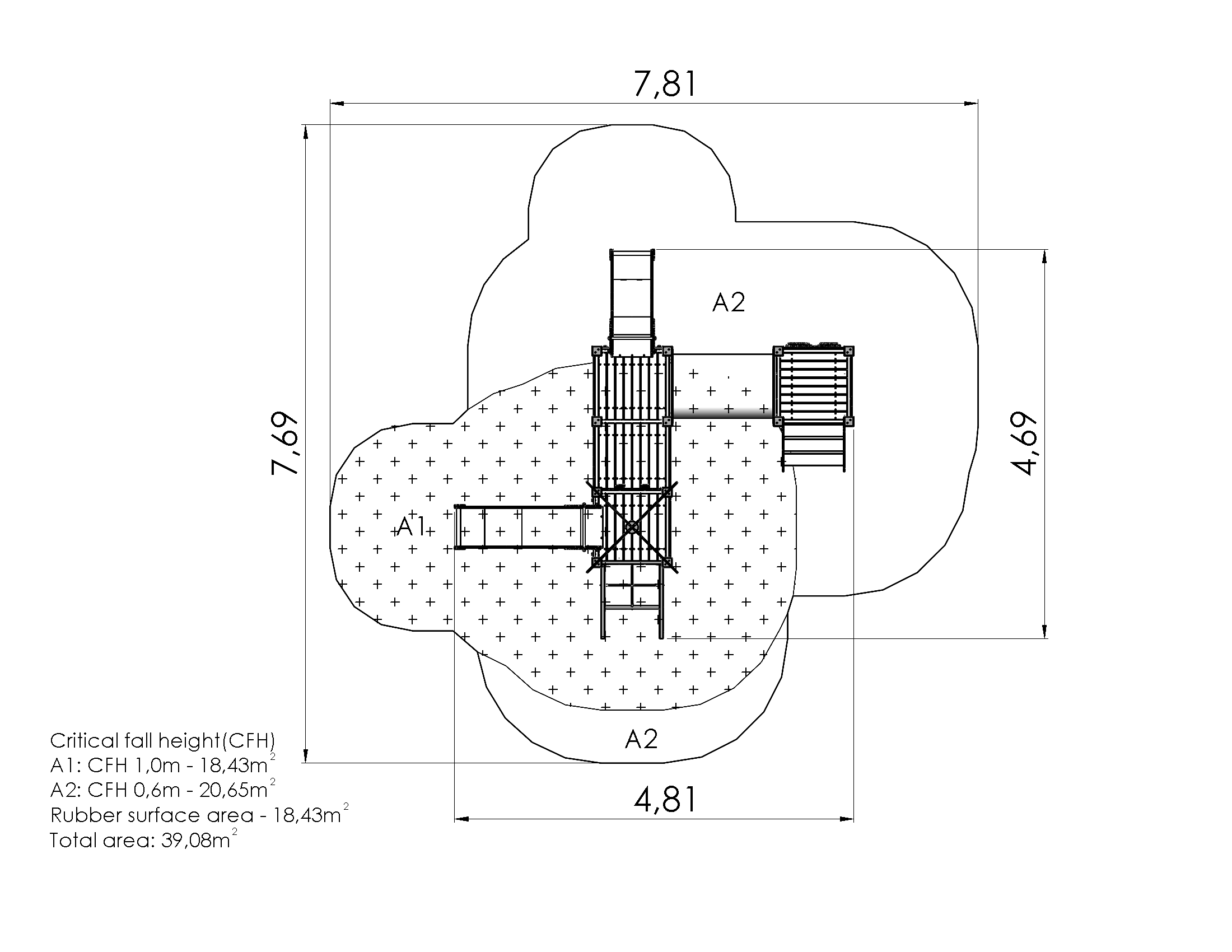

    Safety area

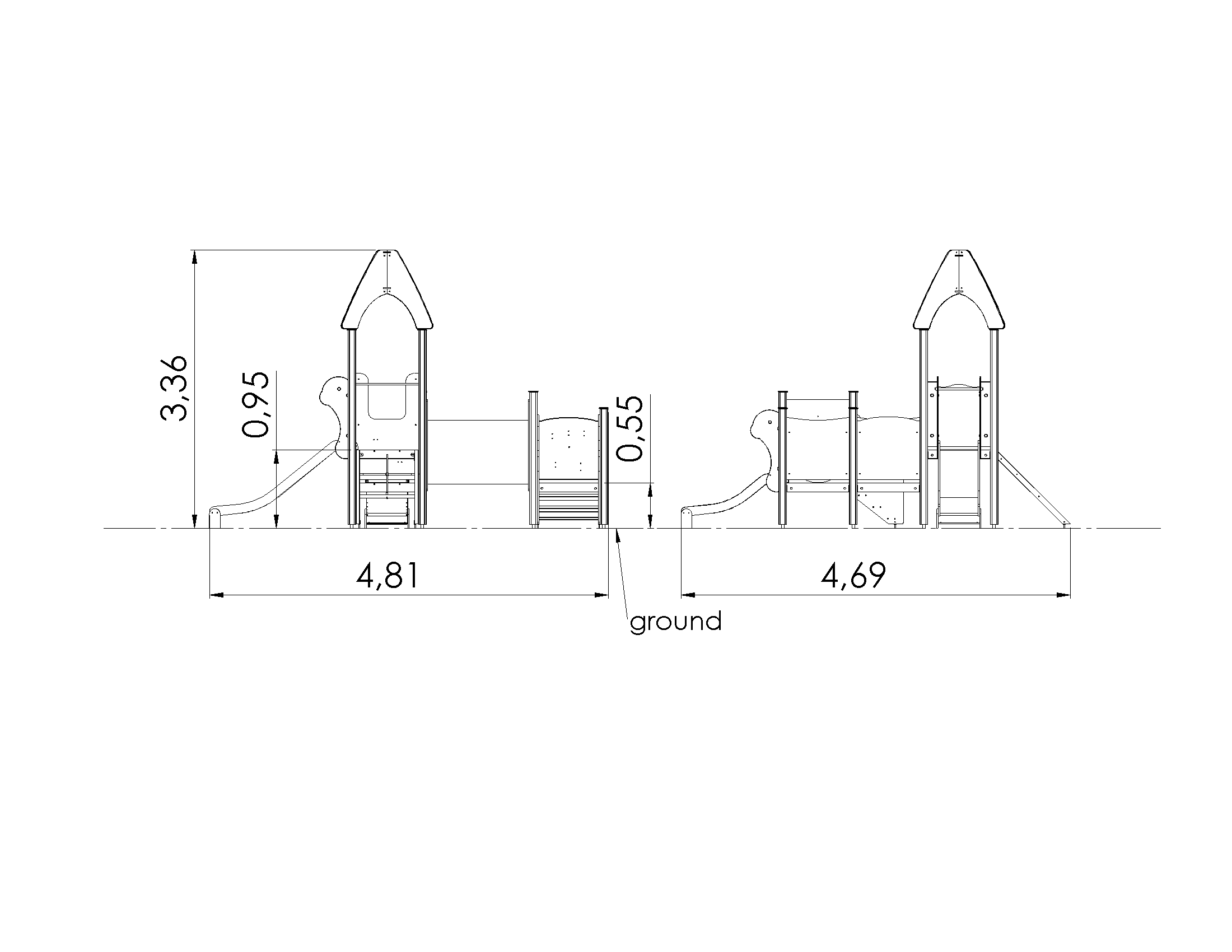

    Side view
