3D Planner
Home / Products / Playgrounds / Play centres / Play Centre JONATHAN

Product code:

Play Centre JONATHAN

  • 1 y
  • 1.92 m
  • 4.95 m
  • 5.17 m
  • 3.35 m
  • TUV Logo

Colour options

Material

+

    Specifications-

    Technical information

    Safety area width8.45 m
    Safety area length8.6 m
    Width of structure4.95 m
    Length of structure5.17 m
    Height of structure3.35 m
    Max. fall height1.92 m
    The product needs a safety surface
    Recommended age of children1+
    For simultaneous use by several children1-20

    Product consists of

    Platforms1 pcs with a height 0.95 m
    Platforms1 pcs with a height 1.2 m
    Platforms1 pcs with a height 1.55 m
    Roofs1 pcs
    Slides1 pcs with a height 0.95 m
    Slides1 pcs with a height 1.55 m
    Climbing walls1 pcs
    Climbing nets3 pcs
    Bridges1 pcs
    Stairs with handrails1 pcs
    Posts12 pcs
    Panels/Plates7 pcs
    Tubes12 pcs

    Product description

    A play centre with three platforms of different heights, two slides, and climbing walls. Stairs with handrails and a climbing net slope lead to the centre. A net bridge with handrails leads to the highest platform. Two net walls, a ladder and a climbing wall with holes offer a chance to practice dexterity and climbing skills. Two slides provide a way down. The side panels of the play centre can be switched for various activity walls or thematic printed panels (animals, birds, fish, trees, berries, etc.). The design of the panels will be finalised with the client during ordering.

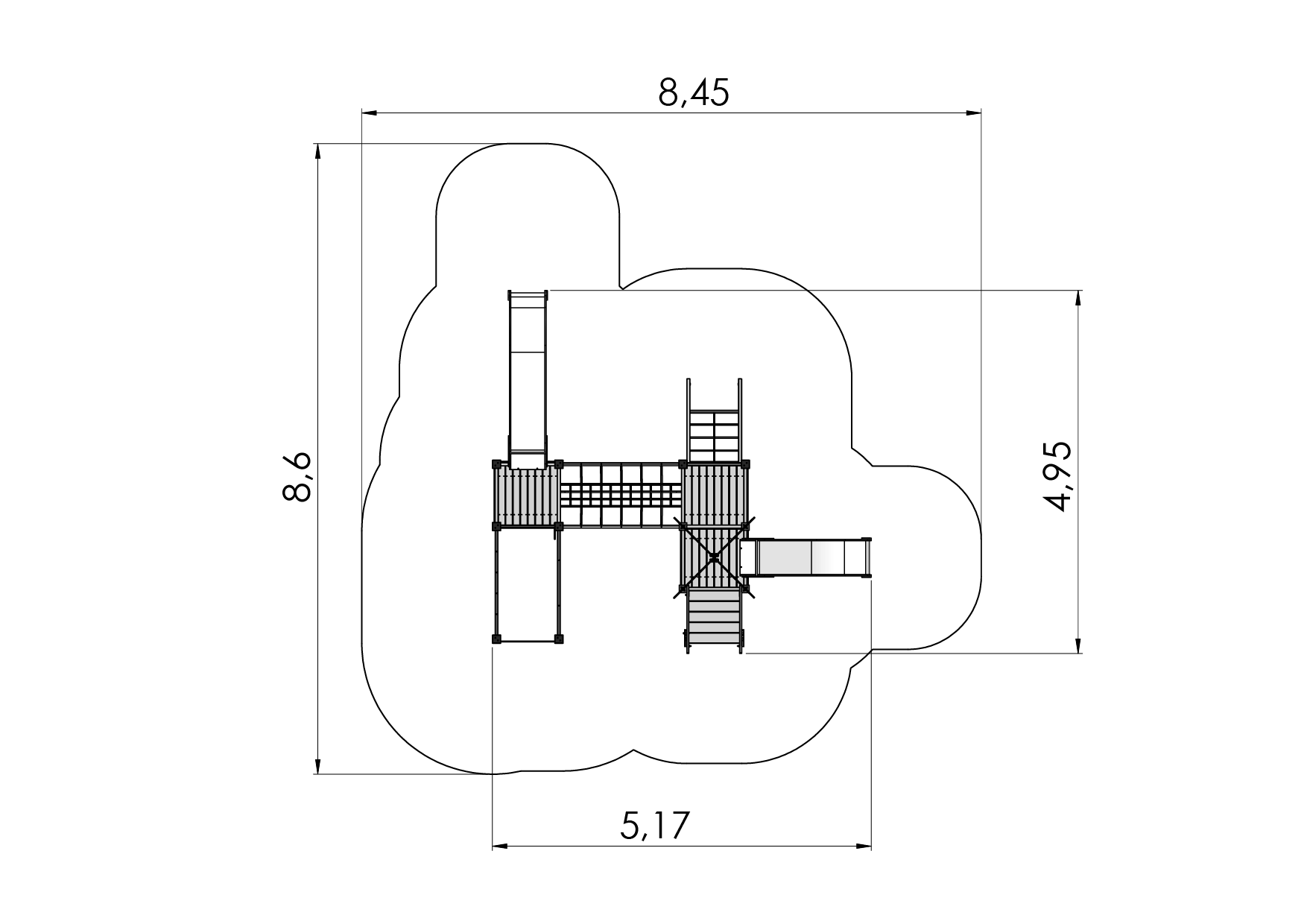

    Safety area

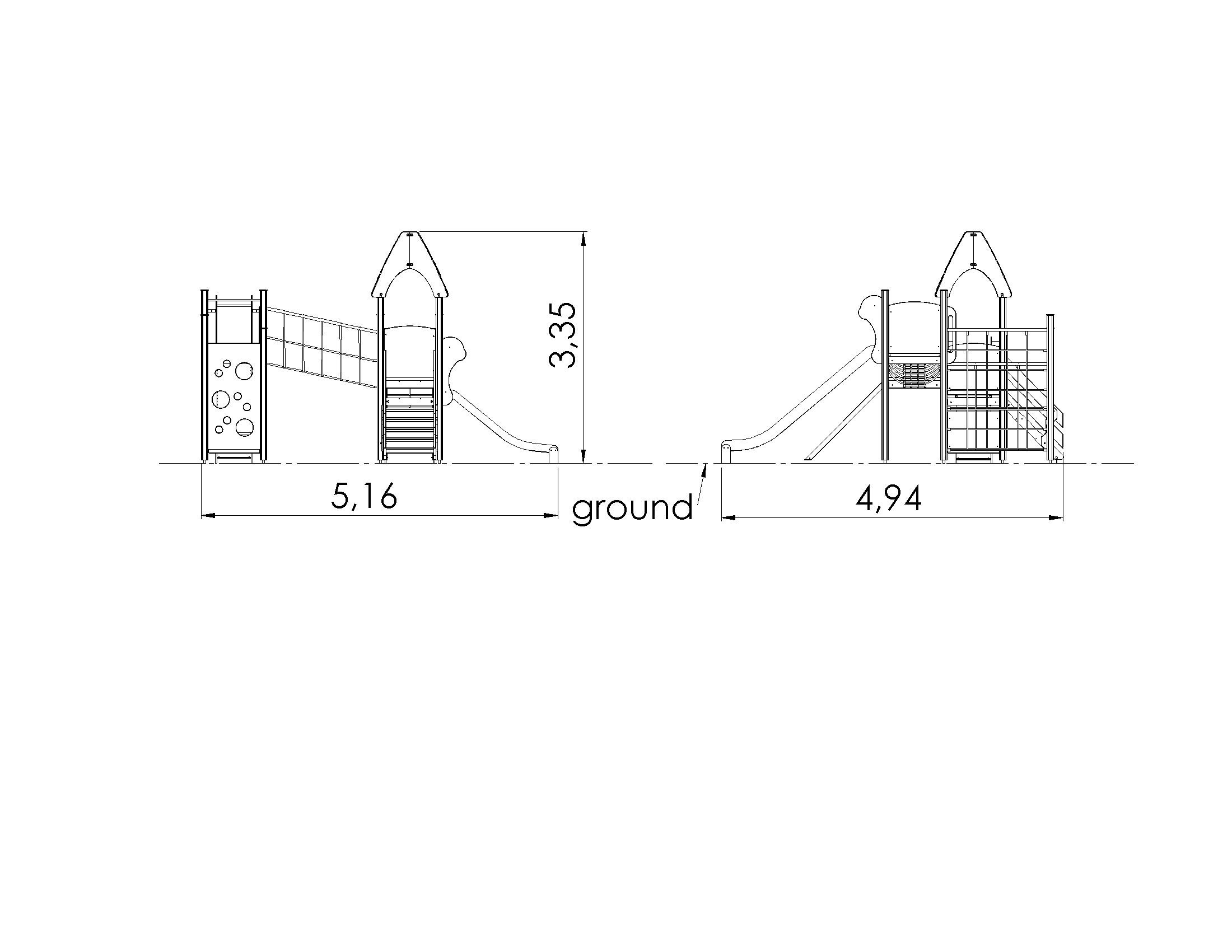

    Side view

    Downloads+

    Material+

    Installation info+
