Home / Products / Playgrounds / Play centres / Play Centre RENATA

Product code:

Play Centre RENATA

  • 4 y
  • 2.15 m
  • 4.92 m
  • 7.06 m
  • 4.57 m
  • TUV Logo

Colour options

Material

+

    Specifications-

    Technical information

    Safety area width8.86 m
    Safety area length10.99 m
    Width of structure4.92 m
    Length of structure7.06 m
    Height of structure4.57 m
    Max. fall height2.15 m
    The product needs a safety surface
    Recommended age of children4+
    For simultaneous use by several children6-12

    Product consists of

    Platforms1 pcs with a height 2.15 m
    Platforms1 pcs with a height 1.55 m
    Platforms1 pcs with a height 1.2 m
    Roofs1 pcs
    Slides1 pcs with a height 2.15 m
    Slides1 pcs with a height 1.55 m
    Climbing walls1 pcs
    Climbing nets1 pcs
    Bridges1 pcs
    Fireman poles2 pcs
    Play corners1 pcs
    Activity panels2 pcs
    Posts10 pcs
    Panels/Plates3 pcs
    Tubes11 pcs

    Product description

    A play centre with three platforms of different heights, two slides and climbing elements. A net climbing slope leads to the lowest platform where a step takes kids to the second platform. There a slide offers a path down and a net bridge with handrails offers a path up, to the highest platform, where a second slide and a fireman’s pole lead down again. The highest platform can also be reached via a vertical ladder with arched rungs or via a rock climbing wall. A moving helm and binoculars, as well as a fun play corner with a bench, which can be equipped with either kitchen or car dashboard elements, satisfy all role playing needs. The side panels of the play centre can be switched for various activity walls or thematic printed panels (animals, birds, fish, trees, berries, etc.). The design of the panels will be finalised with the client during ordering.

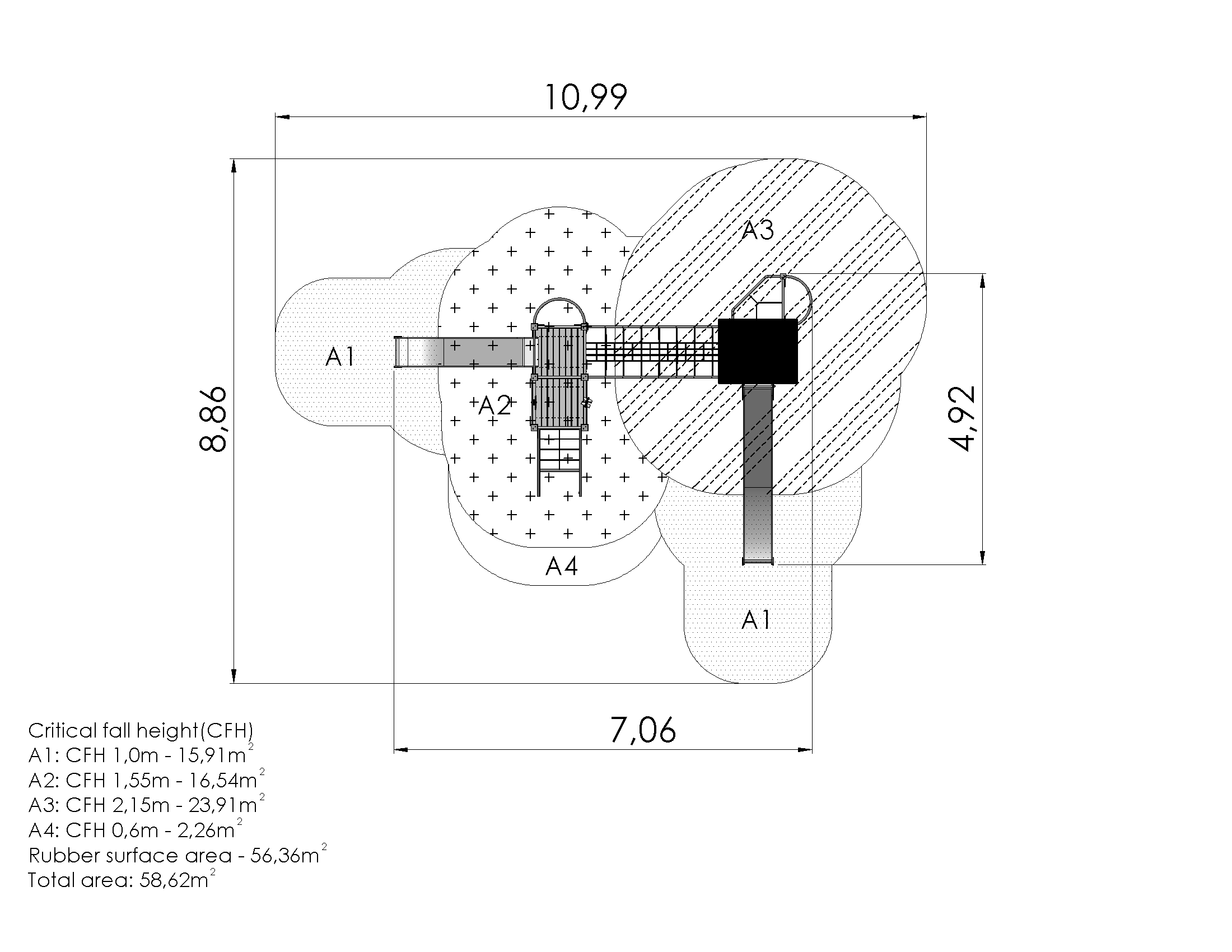

    Safety area

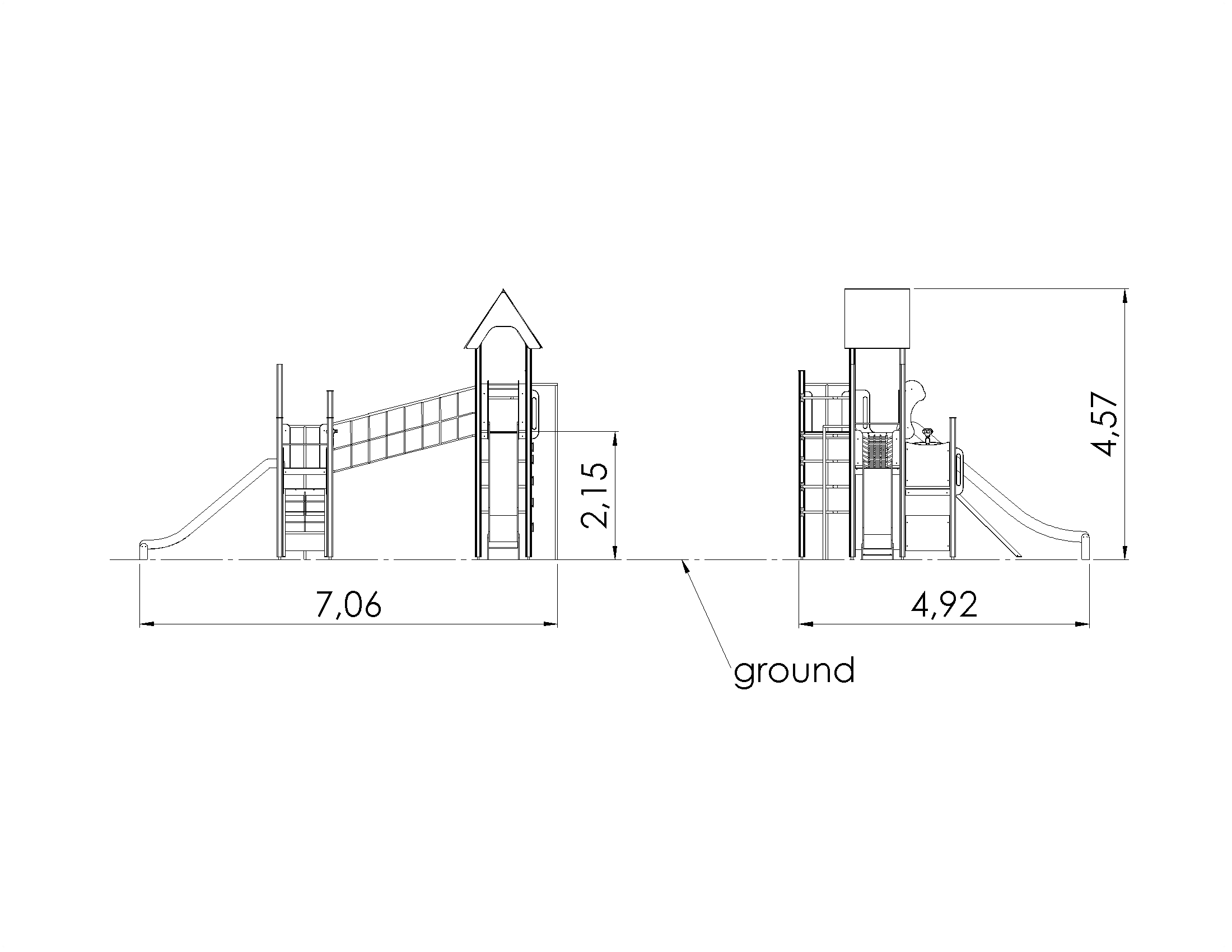

    Side view

    Downloads+

    Material+

    Installation info+
