Home / Products / Playgrounds / Theme play / Playtrain LOCOMOTIVE

Product code:

Playtrain LOCOMOTIVE

  • 1 y
  • 0.95 m
  • 2.57 m
  • 4.58 m
  • 2.9 m
  • TUV Logo

Colour options

Material

+

    Specifications-

    Technical information

    Safety area width6.07 m
    Safety area length7.58 m
    Width of structure2.57 m
    Length of structure4.58 m
    Height of structure2.9 m
    Max. fall height0.95 m
    Recommended age of children1+
    For simultaneous use by several children3-6

    Product consists of

    Platforms1 pcs with a height 0.95 m
    Roofs1 pcs
    Slides1 pcs with a height 0.95 m
    Tunnels1 pcs
    Slopes1 pcs
    Stairs with handrails1 pcs
    Posts6 pcs
    Panels/Plates7 pcs
    Tubes1 pcs

    Product description

    The playtrain with a slide is designed for small children. Children can access the platform using the double handrail stairs or by walking up the ramp with wooden steps and crawling through a tunnel. The platform has a 0.95 m high slide attached to it.

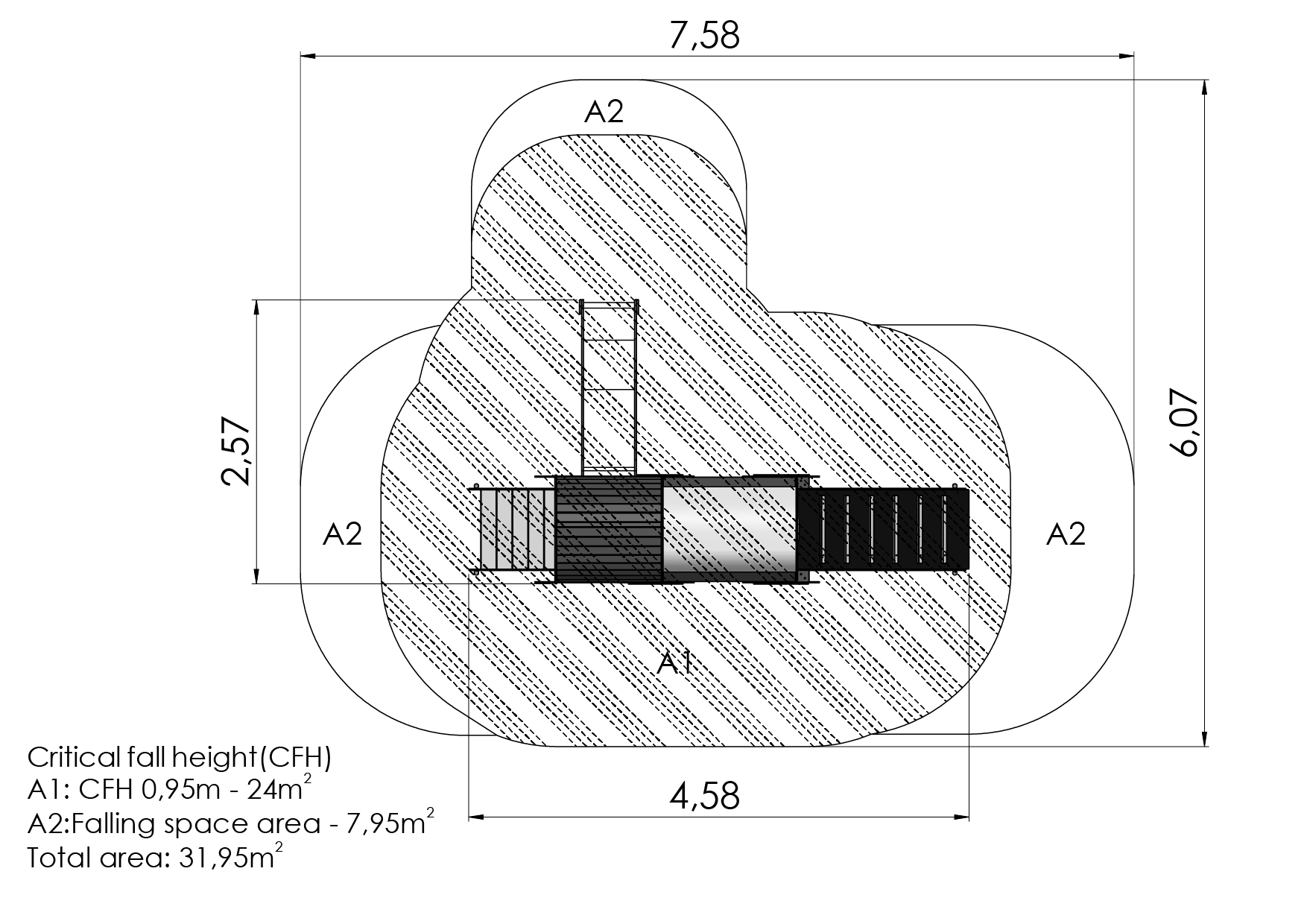

    Safety area

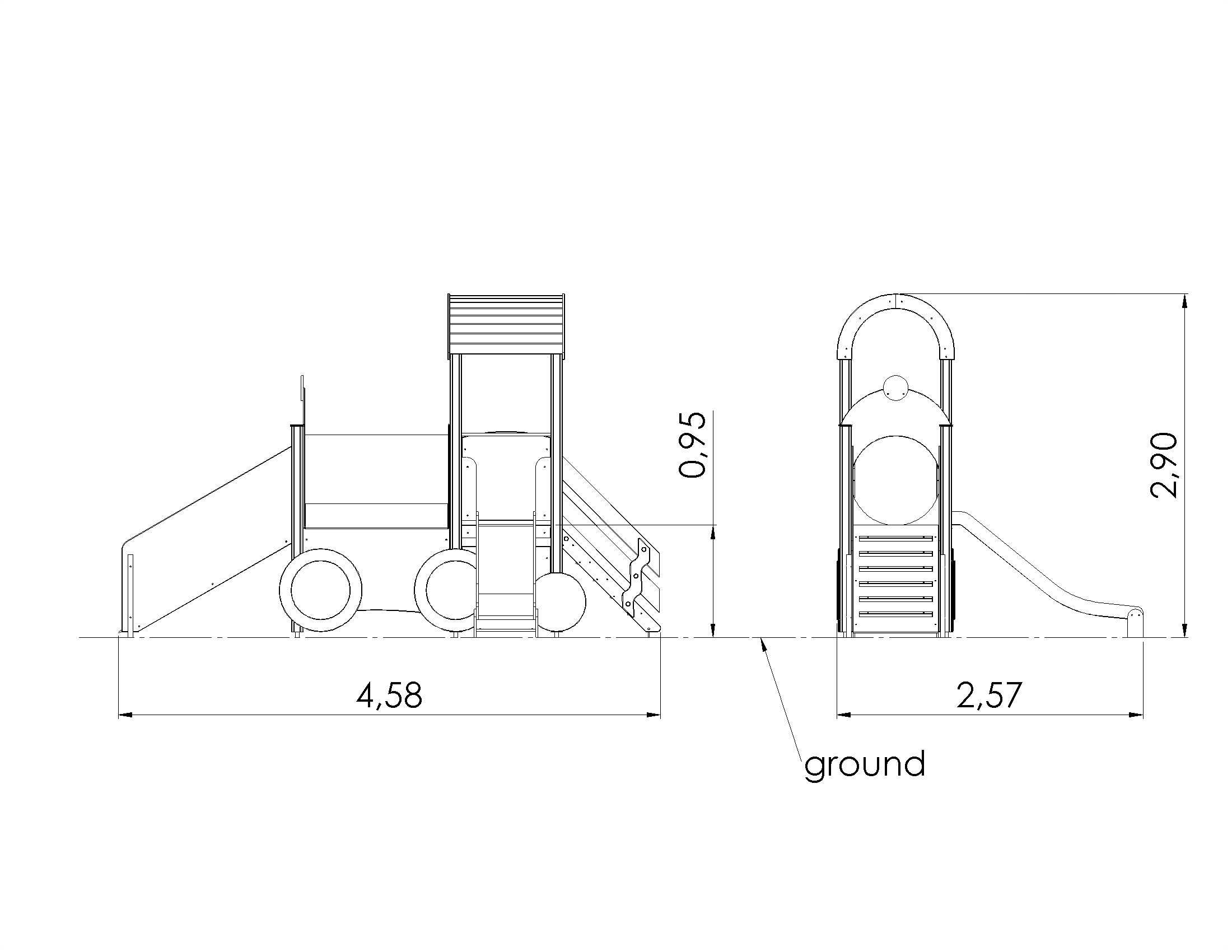

    Side view

    Downloads+

    Material+

    Installation info+
