Product code:

See-saw SEAL

  • 2 y
  • 0.9 m
  • 0.52 m
  • 3.8 m
  • 0.84 m
  • TUV Logo

Material

+

    Specifications-

    Technical information

    Safety area width2.35 m
    Safety area length5.8 m
    Width of structure0.52 m
    Length of structure3.8 m
    Height of structure0.84 m
    Max. fall height0.9 m
    Recommended age of children2+
    For simultaneous use by several children2

    Product consists of

    Beams2 pcs
    Springs2 pcs
    Grips for hands and/or feet8 pcs

    Product description

    Fun and unique see-saw SEAL is designed so that if one end goes up, the other goes down. Thanks to the springs fitted near the pivot point, kids can also use it on their own. The realistic-looking seal shape forms a seat and it is equipped with handles and leg supports.
    The beam of see-saw is made of 2 painted laminated timber beams. Mechanism and springs are made from galvanized and powder coated steel. Seals are made of 15 mm HDPE. Product’s ground fixings are made of hot-dip galvanized metal and as standard solution it is concreted into the ground.

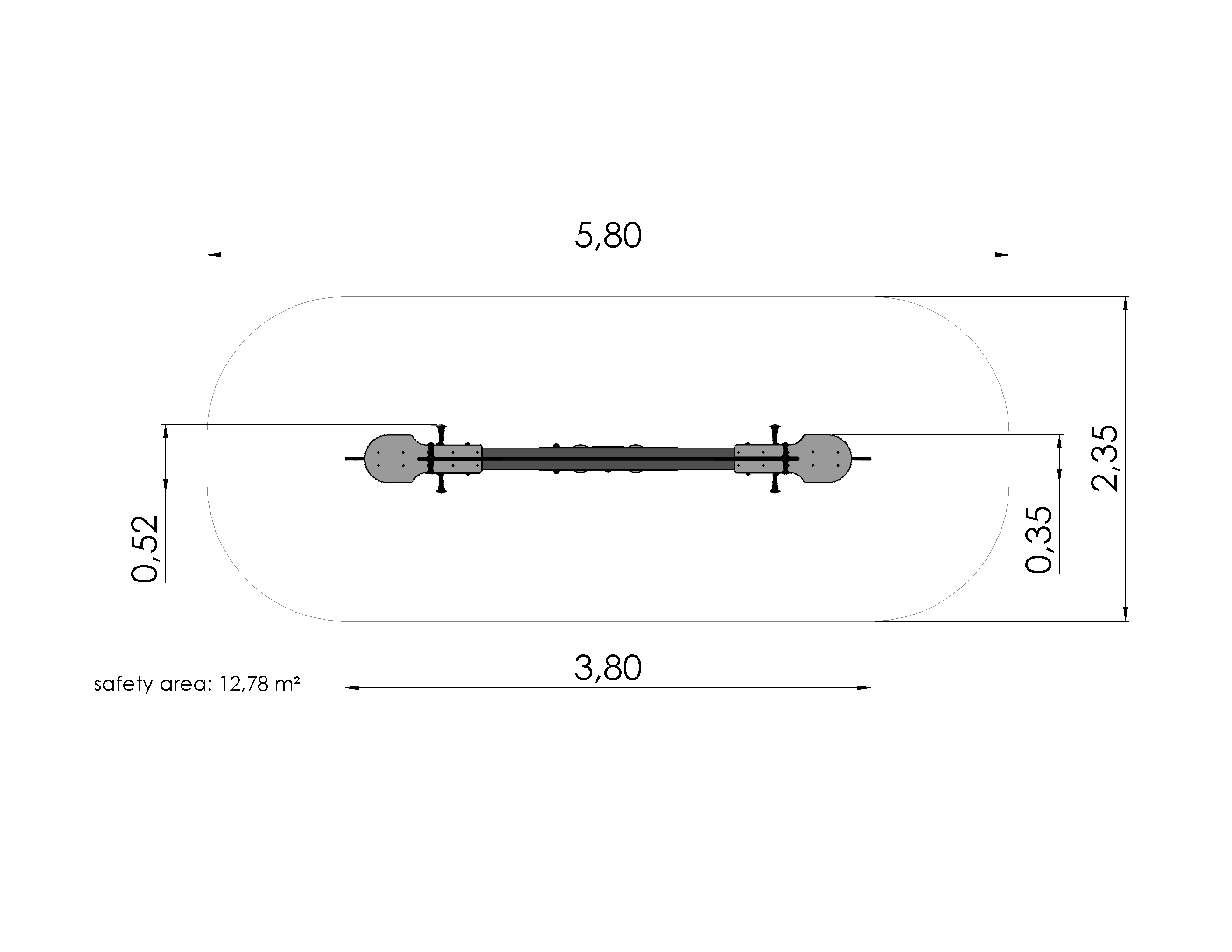

    Safety area

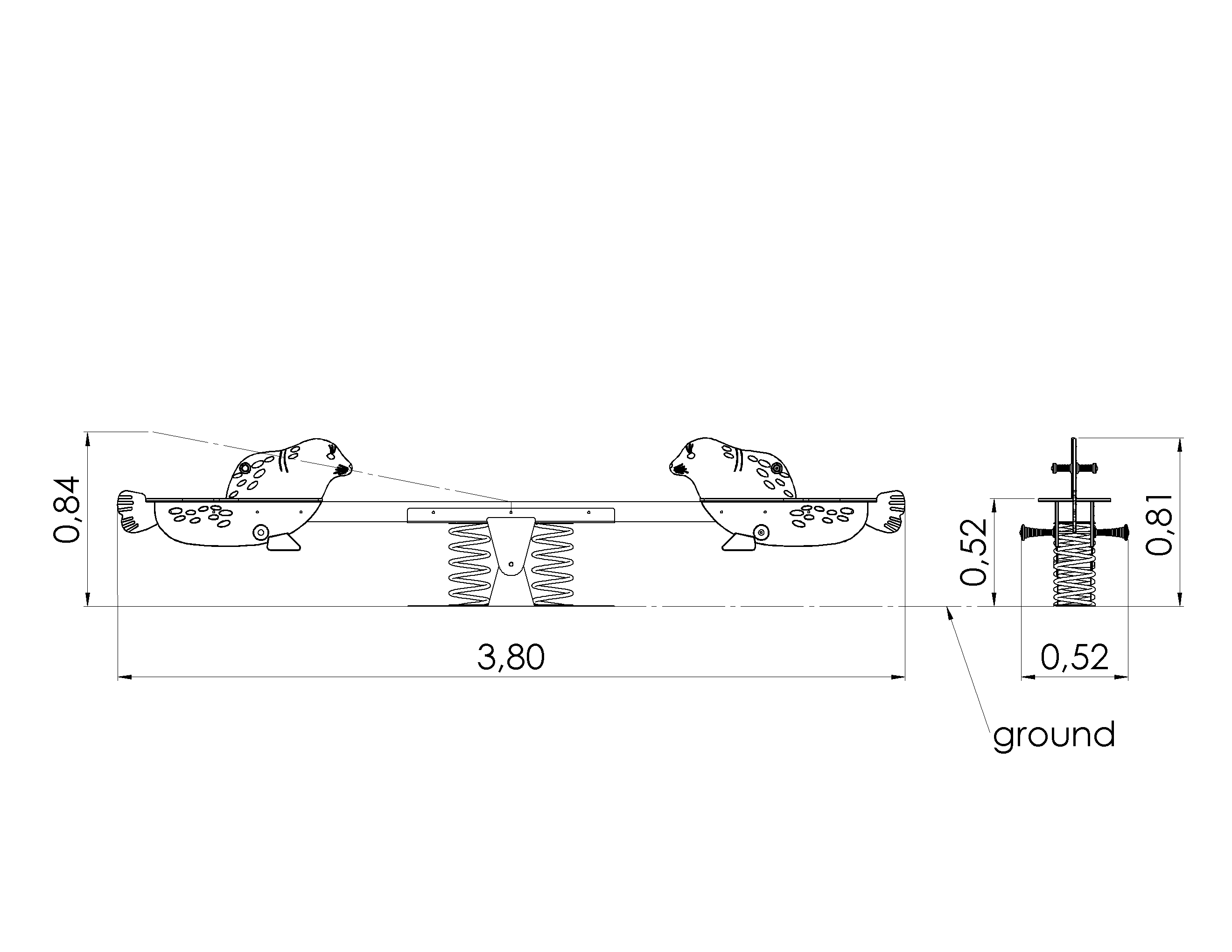

    Side view
