Home / Products / Series / TRIBUTE TO WILDLIFE / Slide BLACKBIRD

Product code:

Slide BLACKBIRD

  • 3 y
  • 1.23 m
  • 1.4 m
  • 3.91 m
  • 2.87 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width4.4 m
    Safety area length7.42 m
    Width of structure1.4 m
    Length of structure3.91 m
    Height of structure2.87 m
    Max. fall height1.23 m
    Recommended age of children3+
    For simultaneous use by several children1-10

    Product consists of

    Platforms1 pcs with a height 1.2 m
    Slides1 pcs with a height 1.2 m
    Ladders1 pcs
    Panels/Plates2 pcs

    Product description

    Climbing and sliding on the slide BLACKBIRD provides engaging activities and joy.
    Product frame, support beams and metal details are made of hot-dipped galvanized steel, all fixing accessories from stainless steel. All side panels are made of 15 mm HDPE. The slide has got a stainless-steel sliding surface, which can be replaced by HDPE in case requested. This slide comes with a hot-dipped galvanized and powder-coated ladder. Product’s ground fixings are made of hot-dip galvanized metal and as standard solution it is concreted into the ground.

    Safety area

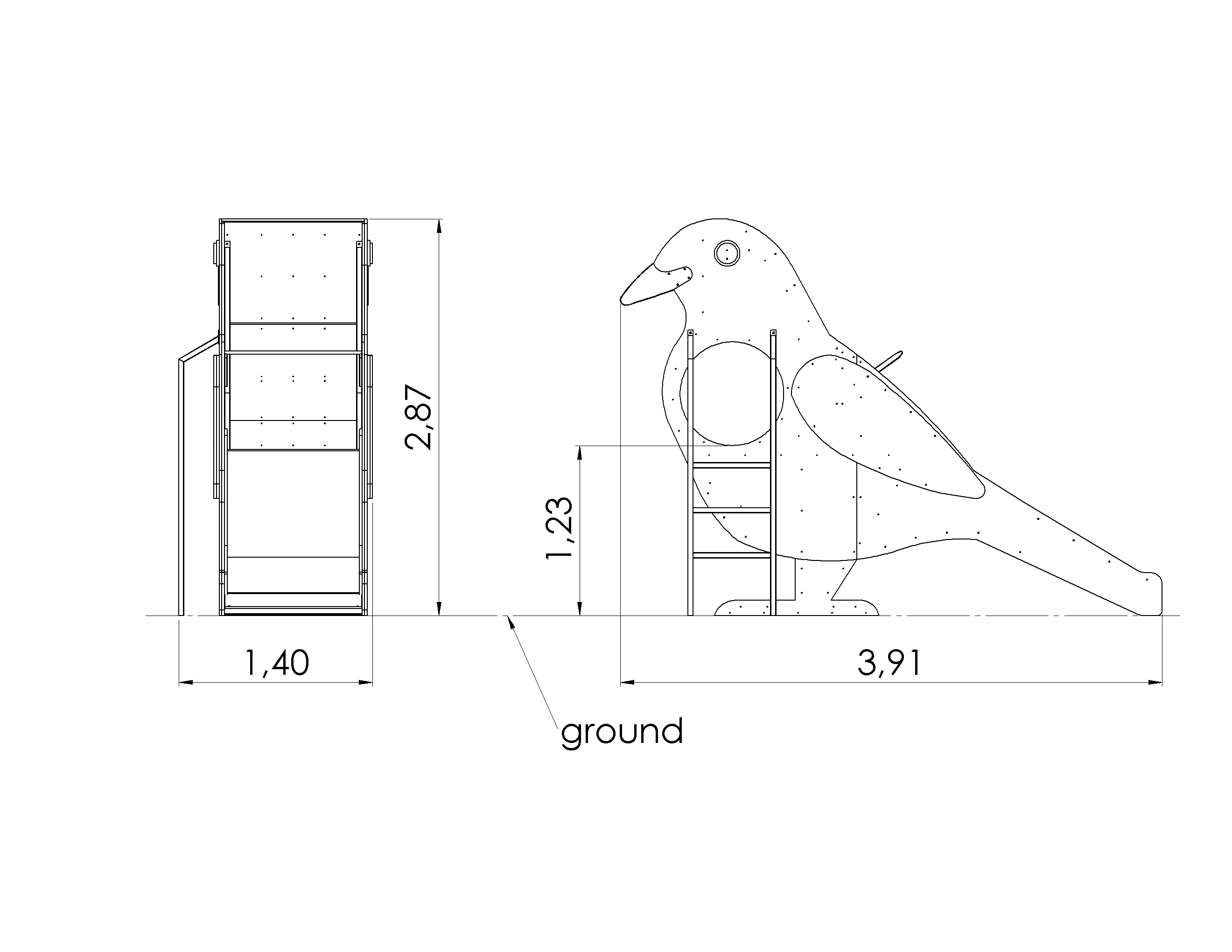

    Side view
