Home / Products / Series / TRIBUTE TO WILDLIFE / Slide CHAFFINCH

Product code:

Slide CHAFFINCH

  • 1 y
  • 0.55 m
  • 0.61 m
  • 2.41 m
  • 1.55 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width3.61 m
    Safety area length5.41 m
    Width of structure0.61 m
    Length of structure2.41 m
    Height of structure1.55 m
    Max. fall height0.55 m
    Recommended age of children1+
    For simultaneous use by several children1-3

    Product consists of

    Slides1 pcs with a height 0.55 m
    Ladders1 pcs
    Panels/Plates2 pcs

    Product description

    A fun and colourful slide CHAFFINCH lets toddlers slide down, test their skills on a ladder and play and discover the world together.
    Product frame, support beams and metal details are made of hot-dipped galvanized steel, all fixing accessories from stainless steel. All side panels are made of 15 mm HDPE. The slide has got a stainless-steel sliding surface, which can be replaced by HDPE in case requested. This slide comes with a hot-dipped galvanized and powder-coated ladder. Product’s ground fixings are made of hot-dip galvanized metal and as standard solution it is concreted into the ground.

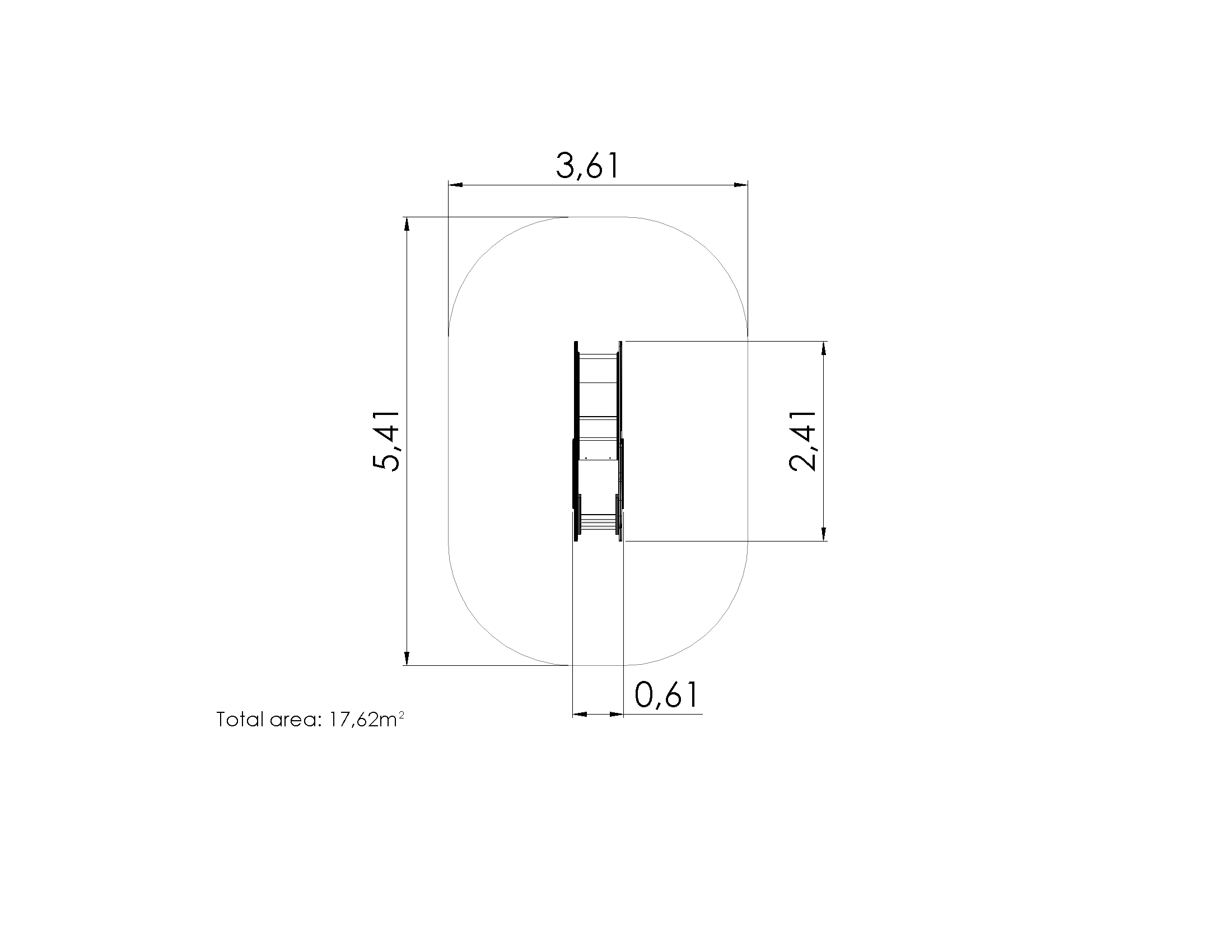

    Safety area

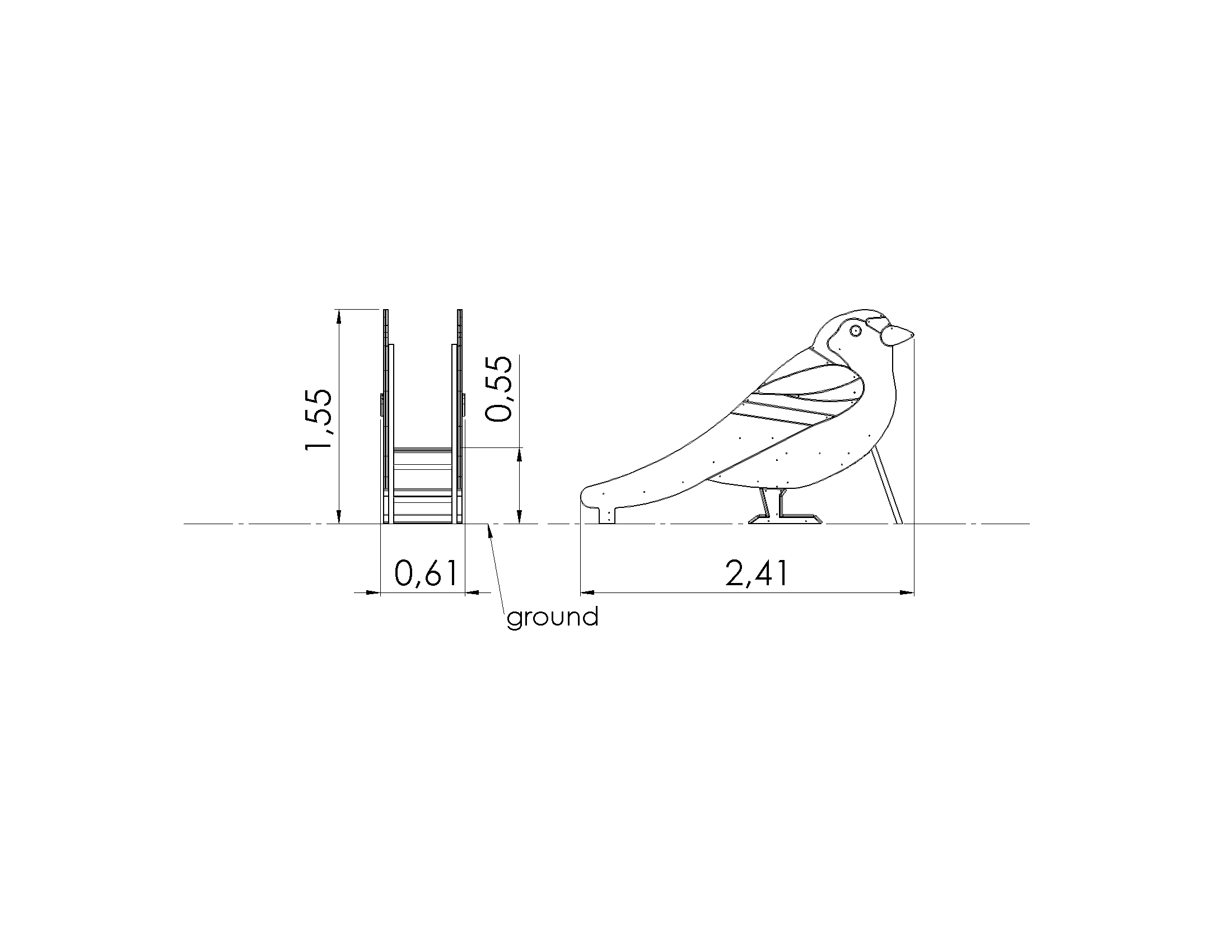

    Side view

    Downloads+

    Material+

    Installation info+
