Home / Products / Playgrounds / Play centres / Slide EMMA

Product code: LM201 FORP PE

Slide EMMA

  • 1 y
  • 1.2 m
  • 1.78 m
  • 3.74 m
  • 2.9 m
  • TUV Logo

Colour options

Material

+

Specifications-

Technical information

Safety area width4.78 m
Safety area length7.24 m
Width of structure1.78 m
Length of structure3.74 m
Height of structure2.9 m
Max. fall height1.2 m
The product needs a safety surface
Recommended age of children1+
For simultaneous use by several children5-10

Product consists of

Platforms1 pcs with a height 1.2 m
Plastic covered laminated wood
Platforms1 pcs with a height 0.95 m
Plastic covered laminated wood
Roofs1 pcs
HDPE plastic
Slides1 pcs with a height 1.2 m
Stainless-steel, HDPE plastic sides
Stairs with handrails1 pcs
Plastic covered laminated wood
Play corners1 pcs
Plastic and wood
Activity panels2 pcs
HDPE plastic
Posts6 pcs
Laminated wood
Panels/Plates5 pcs
HDPE plastic
Tubes1 pcs
Galvanized and powder coated steel

Product description

A slide with a roof and two platforms, a play corner and stairs with handrails. A captain’s helm and binoculars add fun to the lower platform. The play corner beneath the higher platform comes with a bench and can be fitted with either kitchen or car dashboard elements. The side panels of the slide can be switched for various activity walls or thematic printed panels (animals, birds, fish, trees, berries, etc.). The design of the panels will be finalised with the client during ordering.

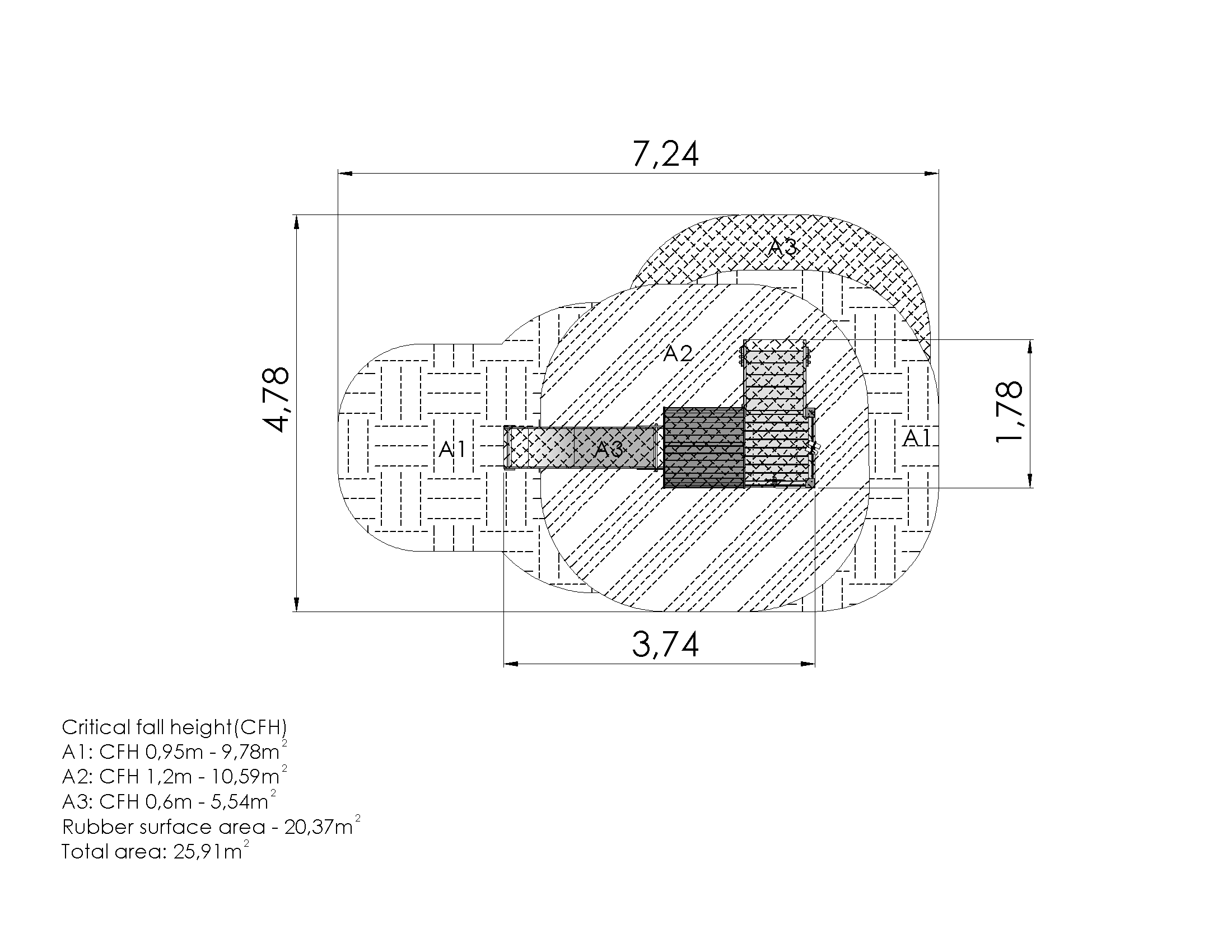

Safety area

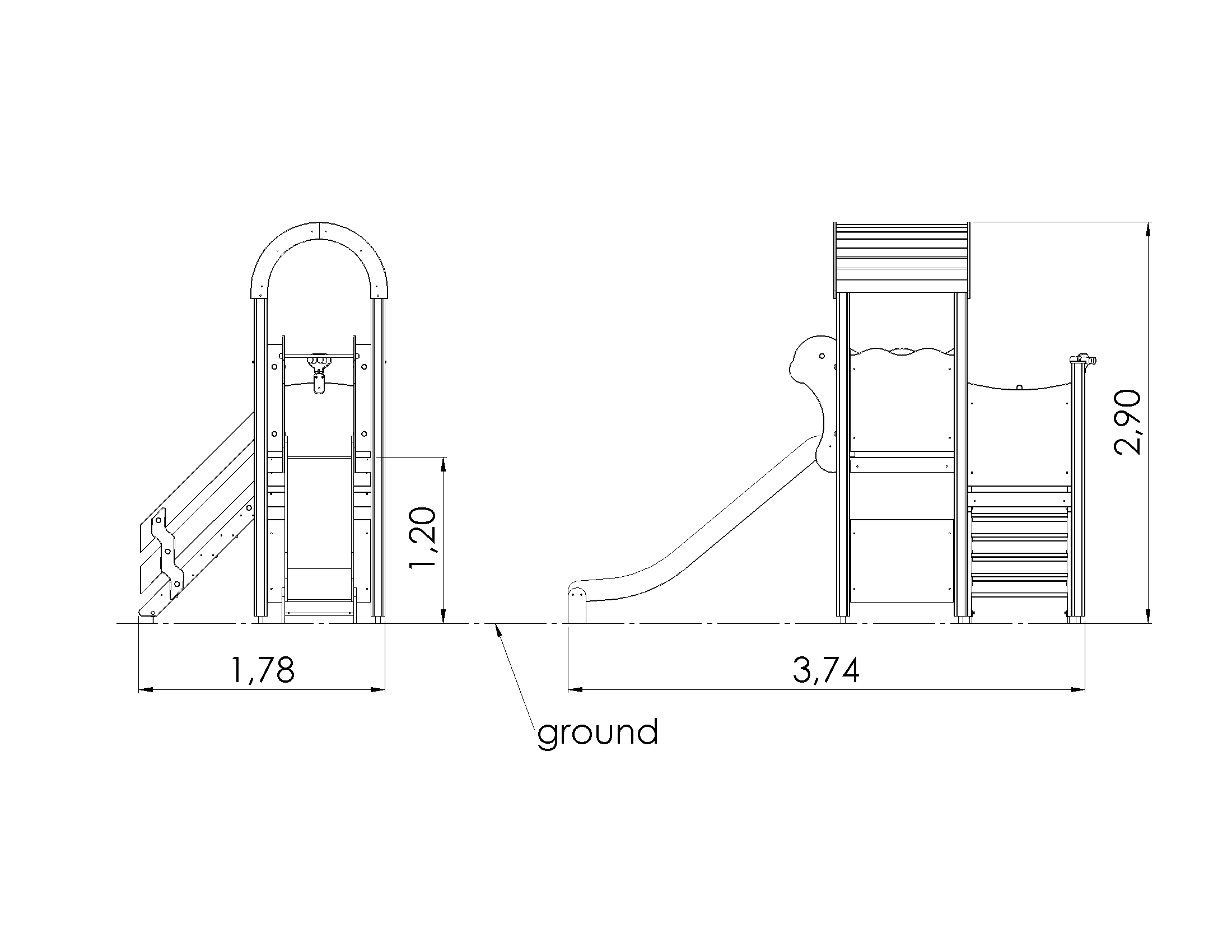

Side view

Downloads+

Material+

Installation info+
