Home / Products / Series / TRIBUTE TO WILDLIFE / Slide RAT

Product code:

Slide RAT

  • 1 y
  • 0.37 m
  • 0.59 m
  • 3.31 m
  • 1.68 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width3.59 m
    Safety area length6.29 m
    Width of structure0.59 m
    Length of structure3.31 m
    Height of structure1.68 m
    Max. fall height0.37 m
    The product needs a safety surface
    Recommended age of children1+
    For simultaneous use by several children1-5

    Product consists of

    Slides1 pcs with a height 0.95 m

    Product description

    Slide for a slope with a platform RAT that is shaped like a rat, provides engaging activities and joy with a 0,95 metres high slide.
    Product frame, support beams and metal details are made of hot-dipped galvanized steel, all fixing accessories from stainless steel. All side panels are made of 15 mm HDPE. The slide has got a stainless-steel sliding surface, which can be replaced by HDPE in case requested. Product’s ground fixings are made of hot-dip galvanized metal and as standard solution it is concreted into the ground.

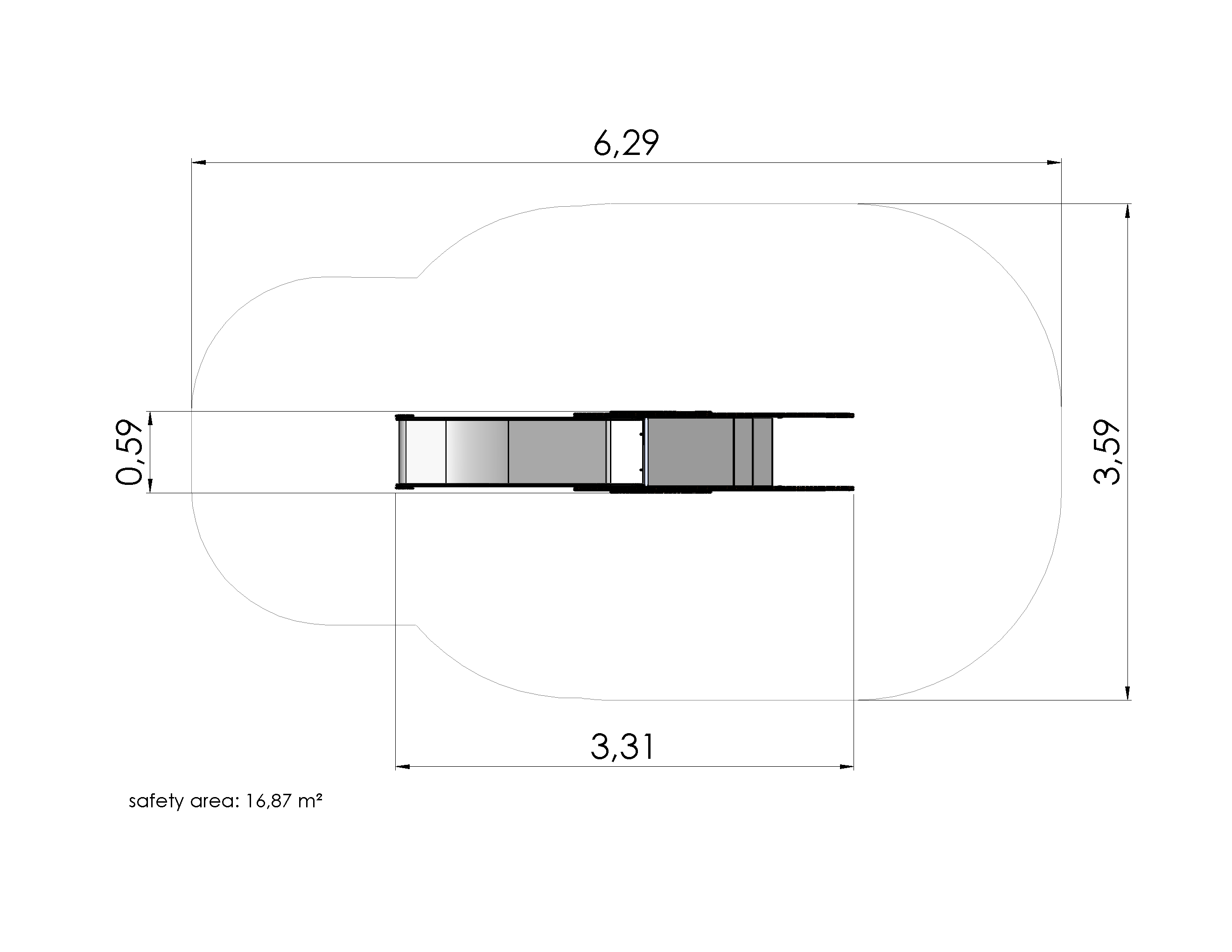

    Safety area

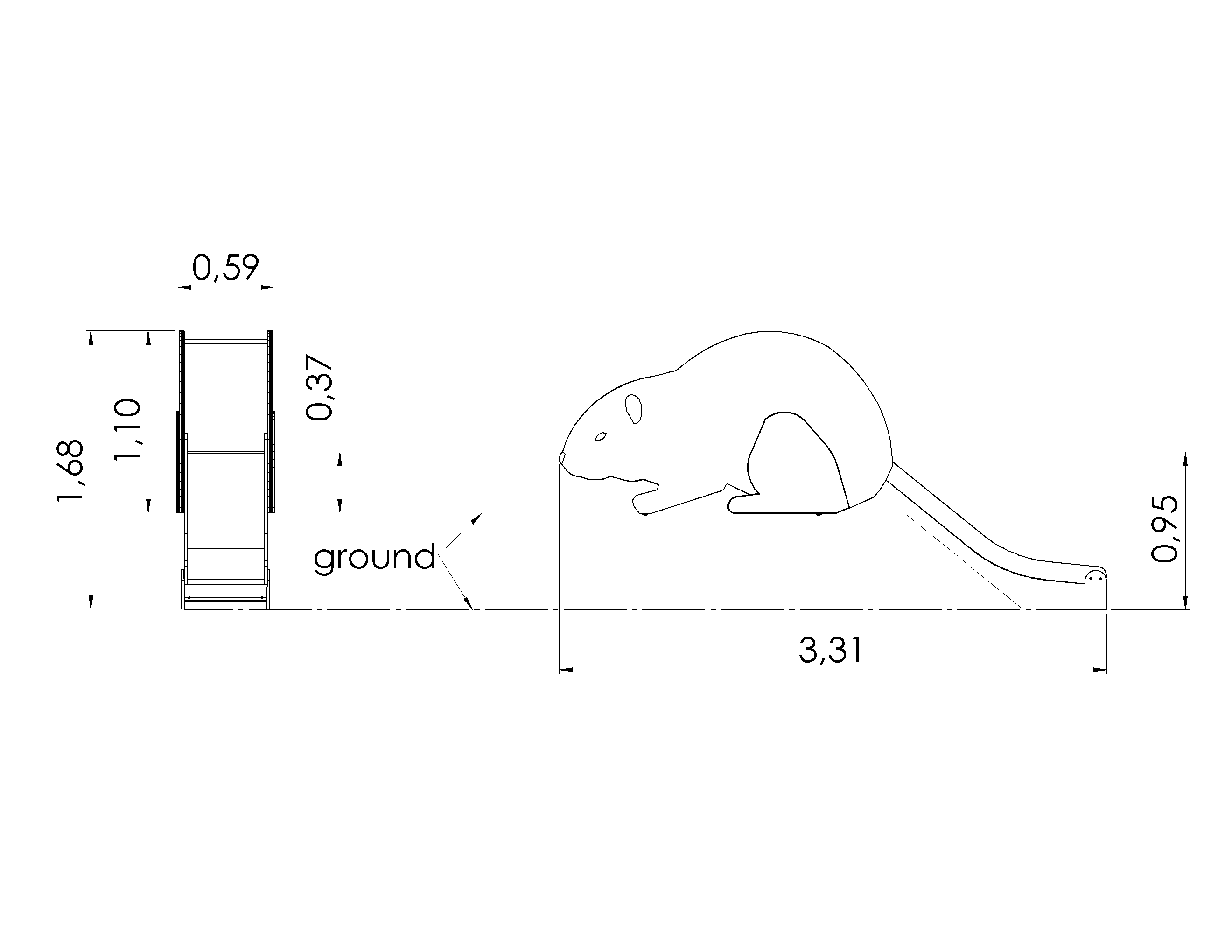

    Side view

    Downloads+

    Material+

    Installation info+
