Product code:

Water game

  • 3 y
  • 0.69 m
  • 1.44 m
  • 3.49 m
  • 1.04 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width4.44 m
    Safety area length6.49 m
    Width of structure1.44 m
    Length of structure3.49 m
    Height of structure1.04 m
    Max. fall height0.69 m
    Recommended age of children3+
    For simultaneous use by several children1-8
    Wheelchair AccessibleYes

    Product description

    The stainless-steel water play set includes:
    Water pump with a height of 87 cm
    Basin with a length of 145 cm
    Basin with a length of 110 cm
    Mud table with a length of 115 cm and a width of 0.72 m
    Material: stainless steel. The product does not include connection to water mains. Product is suitable for wheelchair users.
    Water pump: No power connection or external electricity connection is required. The pump is functioning manually, by turning on the transmission wheel. As soon as the hand wheel is no longer turned, the water flow stops. At some installations it is necessary to reduce the pressure from the public water system. Recommended pressure is 1 to 6 bar. If the pressure is higher, we recommend using water pressure reducer. It’s available on request. If the water tubes are old, it might be possible pumping might transmit some noise to the water tubes. For these cases we recommend using optional water hammer arrestor. Available for additional fee.

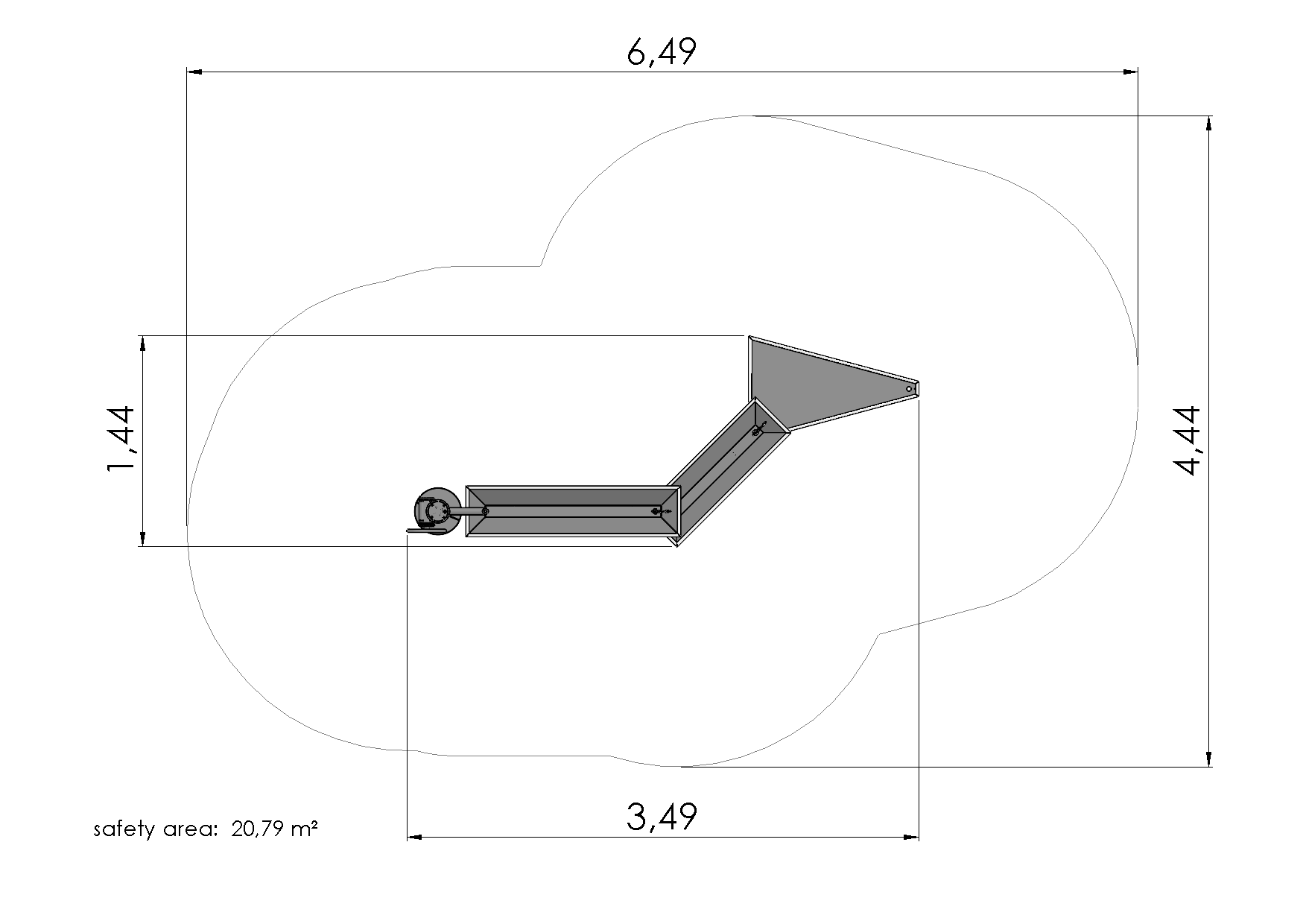

    Safety area

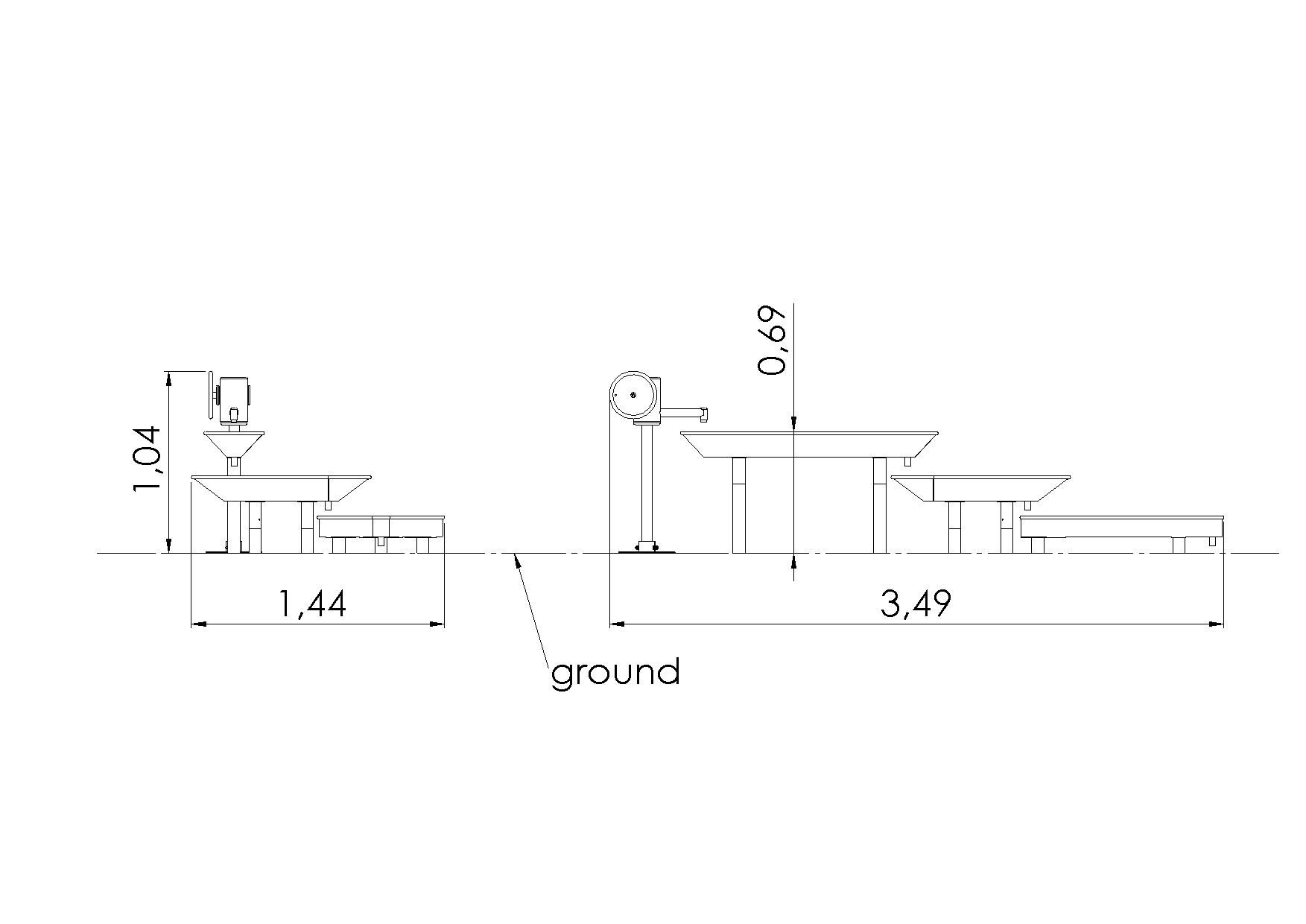

    Side view
