Product code: AM009

AMAZON 9

  • 4 y
  • 2 m
  • 2.21 m
  • 5.5 m
  • 2 m
  • TUV Logo
+

Specifications-

Technical information

Safety area width9.17 m
Safety area length5.88 m
Width of structure2.21 m
Length of structure5.5 m
Height of structure2 m
Max. fall height2 m
The product needs a safety surface
Recommended age of children4+
For simultaneous use by several children5-10

Product description

The AMAZON climbing frame is made of durable laminated timber and it has been awarded the relevant quality certificates. Posts of laminated timber decorated with different ornaments are joined together using the innovative mortise joint. The cross-section of the posts is 105x210mm and the nets between them are made of extremely durable 16mm steel rope designed for climbing which is coated with polyester and features plastic joints. The climbing wall with climbing rocks is made of waterproof birch plywood. This functional climbing frame offers various climbing, balancing and crawling opportunities. Rock climbing walls connect the separate elements. The laminated and painted timber posts are concreted to the ground using hot-dipped galvanized metal fittings.

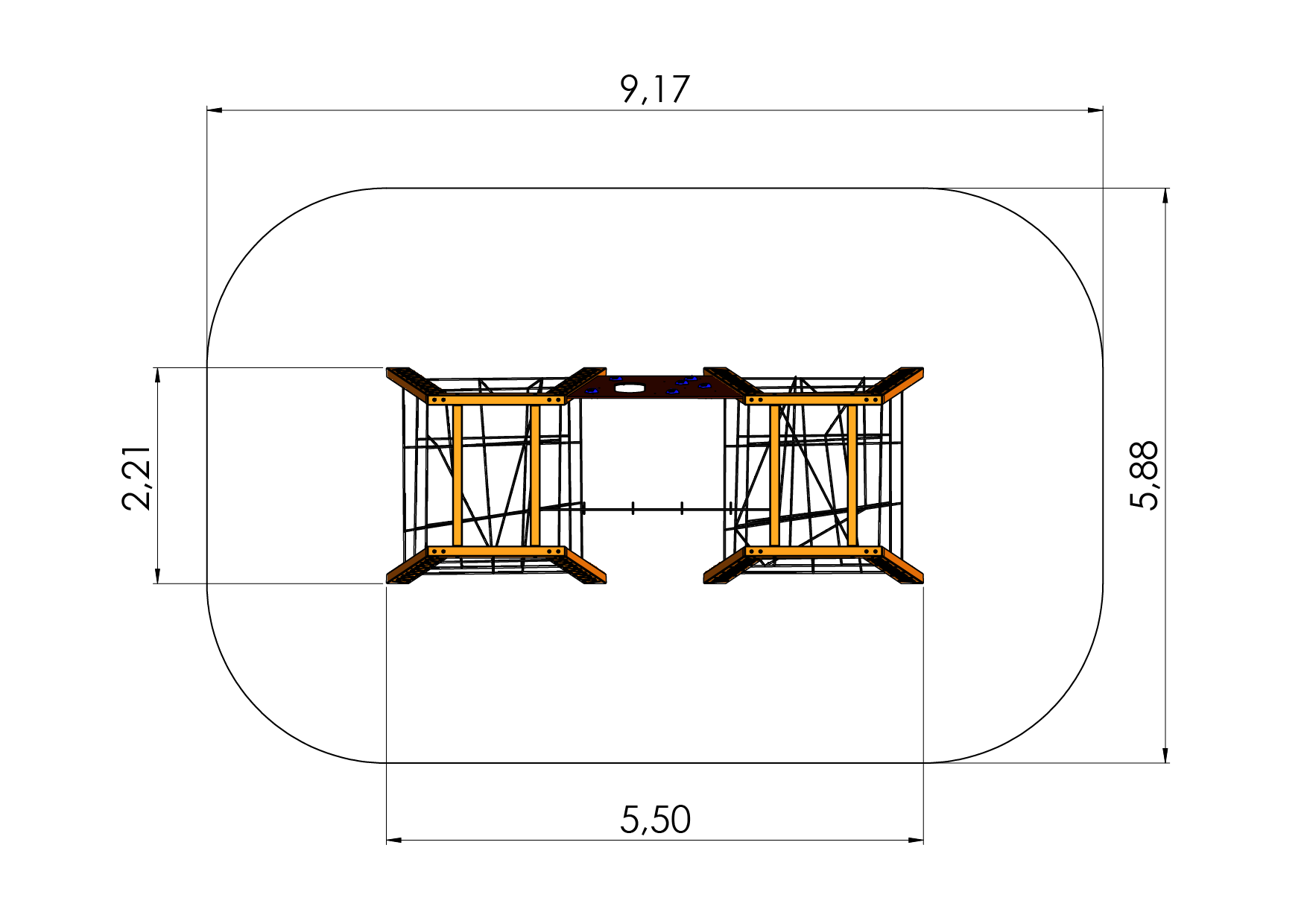

Safety area
