Home / Products / Series / TRIBUTE TO WILDLIFE / Climbing frame-slide CROW

Product code:

Climbing frame-slide CROW

  • 5 y
  • 1.55 m
  • 3.44 m
  • 9.15 m
  • 4 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width6.44 m
    Safety area length12.65 m
    Width of structure3.44 m
    Length of structure9.15 m
    Height of structure4 m
    Max. fall height1.55 m
    Recommended age of children5+
    For simultaneous use by several children1-16

    Product consists of

    Platforms1 pcs with a height 1.55 m
    Slides1 pcs with a height 1.55 m
    Climbing nets1 pcs
    Panels/Plates2 pcs

    Product description

    Climbing frame and slide CROW lets kids slide down, climb, chase each other and hide. These activities help develop children’s intelligence, physique and coordination. Materials: The frame, support beams and metal details are made of hot-dipped galvanized metal. The side panels are made of 19 mm thick single colour HDPE plastic. The chute has HDPE plastic sides and stainless steel base. The net has pressed aluminium connectors and the fixings are made of stainless steel. The product CROW comes with a white play house “Milk carton”. This slide is set in ground with concrete.

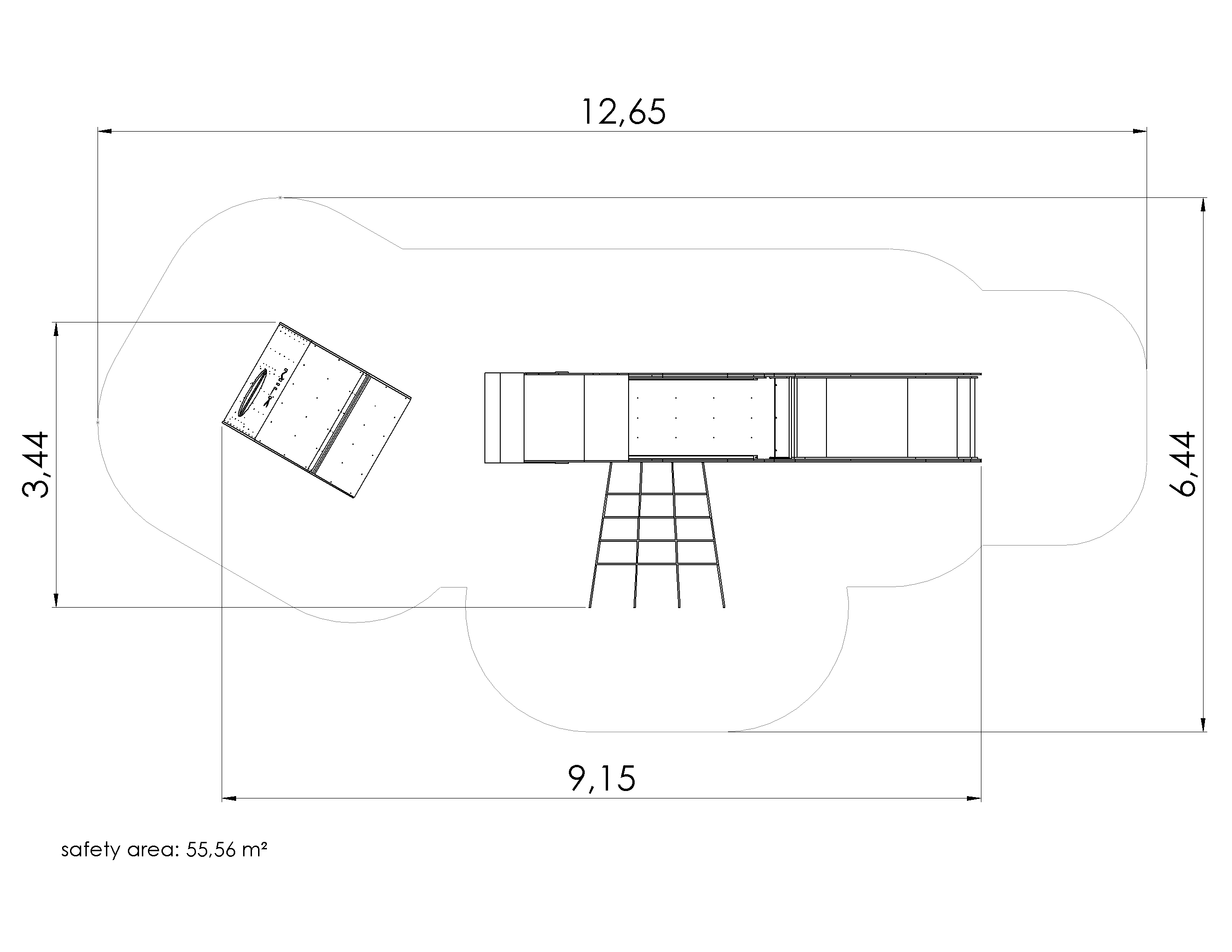

    Safety area

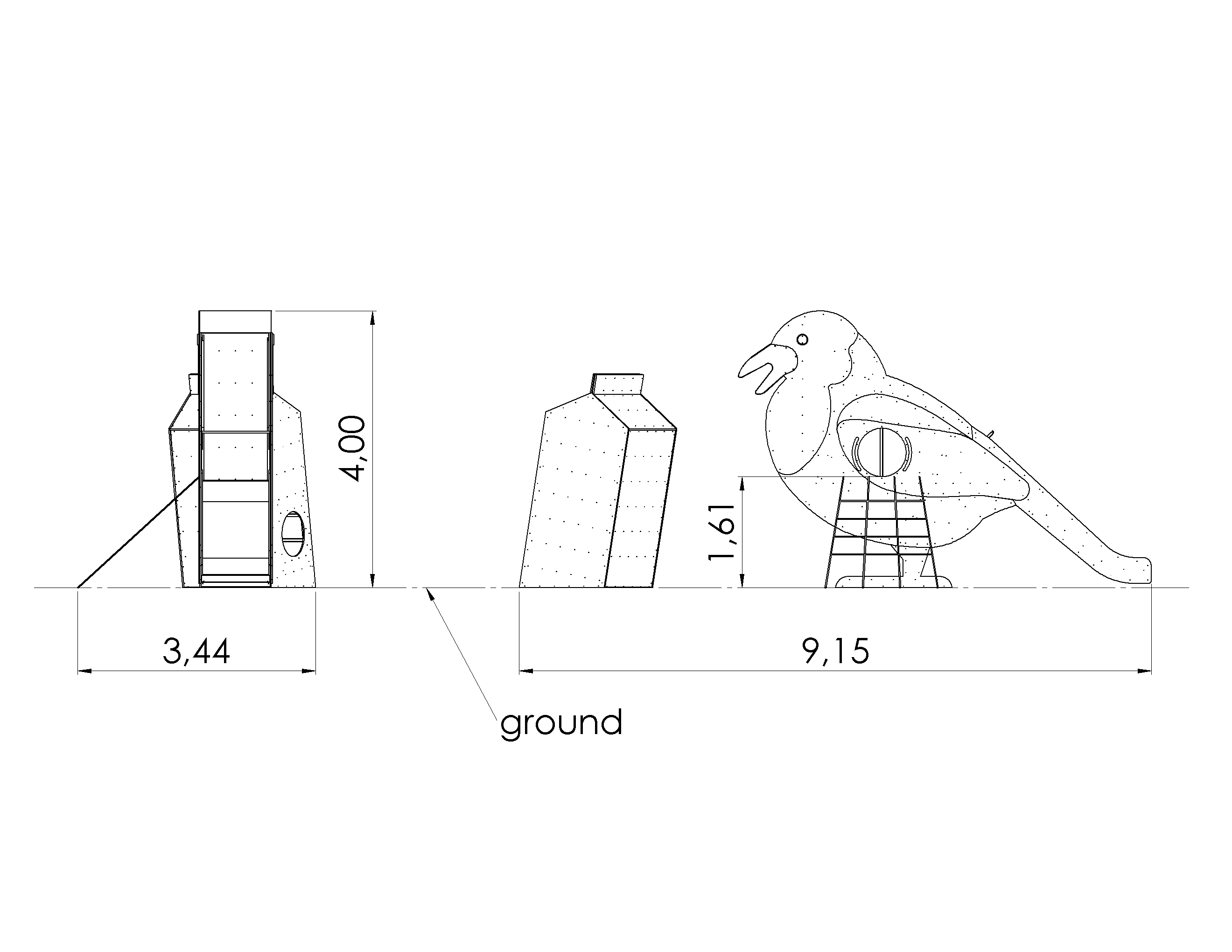

    Side view
