Home / Products / Series / TRIBUTE TO WILDLIFE / Deer trail

Product code:

Deer trail

  • 1 y
  • 0.5 m
  • 1.73 m
  • 14.15 m
  • 2.2 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width4.73 m
    Safety area length17.15 m
    Width of structure1.73 m
    Length of structure14.15 m
    Height of structure2.2 m
    Max. fall height0.5 m
    Recommended age of children1+
    For simultaneous use by several children1-20

    Product description

    Balance and activity track DEER TRAIL includes a balance net, balancing steps shaped like leaves, a slackline and a balancing beam with handrails. There are 8 different deers with activity boards on them like tic-tac-toe, four-in-row, illuminator window and geometric shapes. The first two deers are surrounded by metal poles in different heights that look like they are in a forest. There are talk tubes on either side of the forest.
    Product frame, support beams and metal details are made of hot-dipped galvanized steel, all fixing accessories from stainless steel. Animals are made of 15 mm HDPE. Leaf shaped steps are made from painted laminated wood. Balancing net and slackline are made of 16 mm six-strand PES cover braided steel rope. The net has pressed aluminum connectors. Balancing beam is made of laminated painted wood. Product’s ground fixings are made of hot-dip galvanized metal and as standard solution it is concreted into the ground.

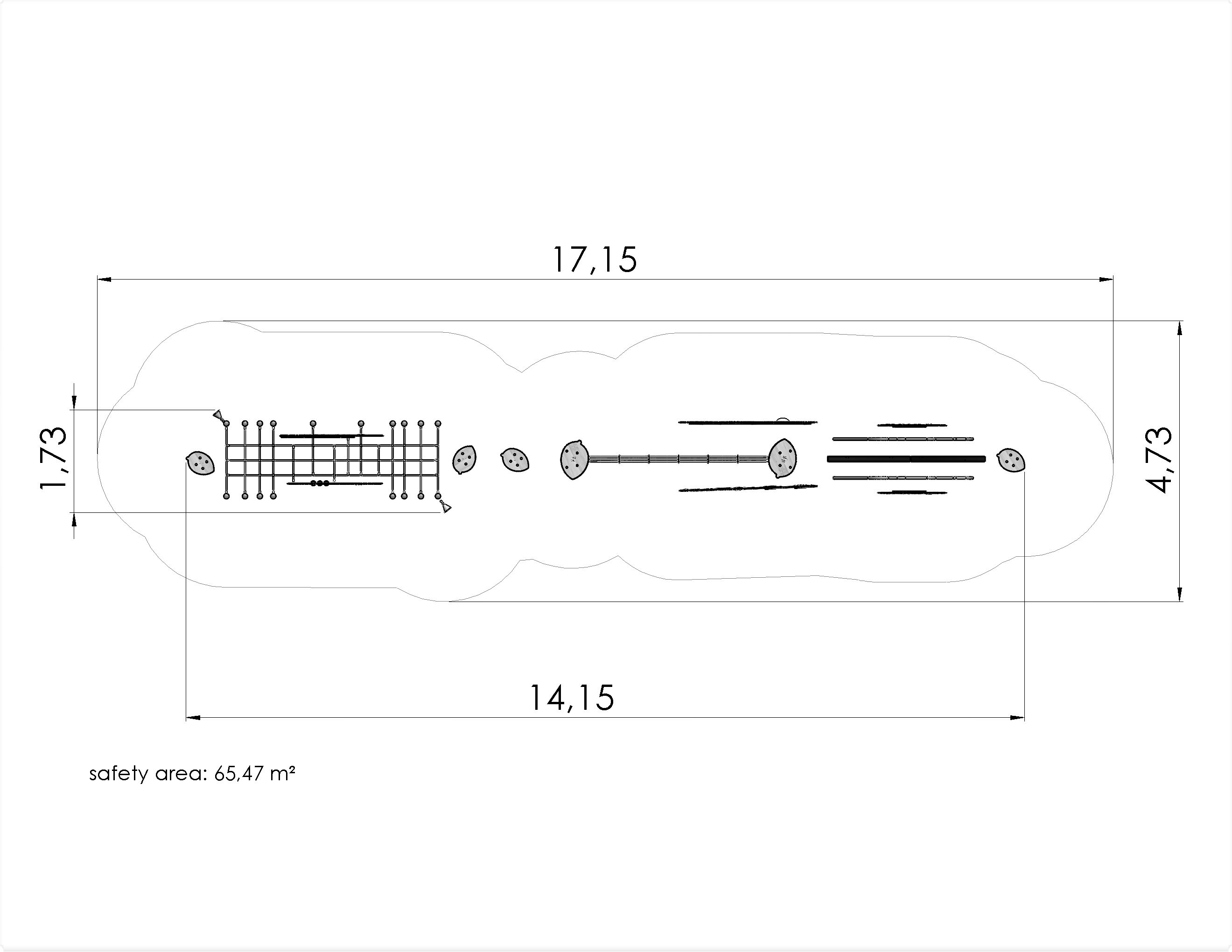

    Safety area

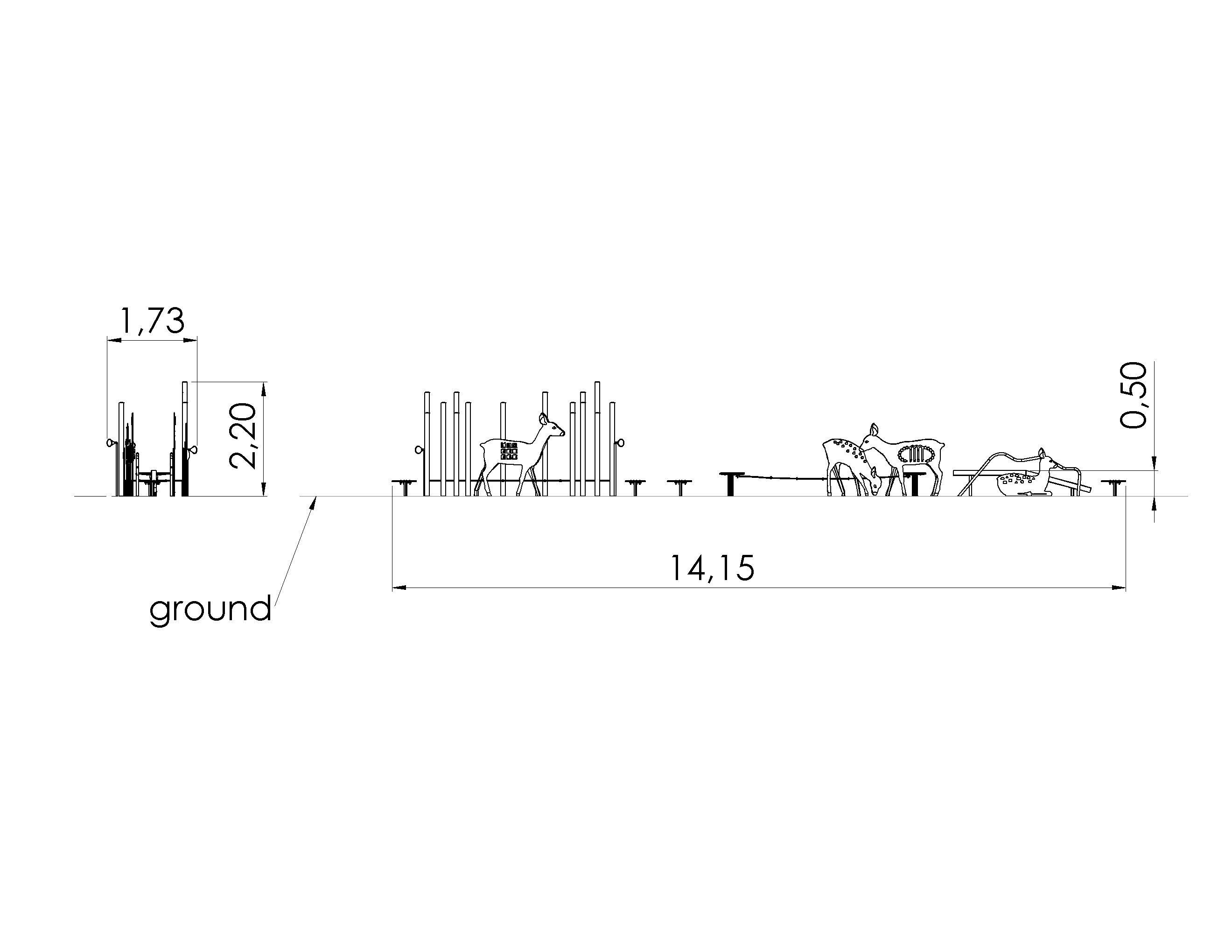

    Side view
