Home / Products / Playgrounds / Play centres / Play Centre ALBERTO

Product code:

Play Centre ALBERTO

  • 1 y
  • 1.65 m
  • 5.54 m
  • 6.39 m
  • 2.85 m
  • TUV Logo

Colour options

Material

+

    Specifications-

    Technical information

    Safety area width8.57 m
    Safety area length9.89 m
    Width of structure5.54 m
    Length of structure6.39 m
    Height of structure2.85 m
    Max. fall height1.65 m
    The product needs a safety surface
    Recommended age of children1+
    For simultaneous use by several children10-15

    Product consists of

    Platforms2 pcs with a height 1.55 m
    Platforms2 pcs with a height 1.2 m
    Platforms1 pcs with a height 0.95 m
    Slides1 pcs with a height 1.2 m
    Slides1 pcs with a height 0.95 m
    Climbing walls2 pcs
    Ladders1 pcs
    Bridges2 pcs
    Tunnels2 pcs
    Fireman poles1 pcs
    Play corners2 pcs
    Activity panels1 pcs
    Posts16 pcs
    Panels/Plates13 pcs
    Tubes12 pcs

    Product description

    This play centre with four platforms provides a selection of diverse elements which are suited for many different activities. The centre can be accessed via a vertical or an arched ladder. A net tunnel, a crawl tunnel and a sloping net bridge connect the platforms. The play centre is equipped with two slides and climbing walls, a fireman’s pole and an activity game Tic-Tac-Toe. The side panels of the play centre can be switched for various activity walls or thematic printed panels (animals, birds, fish, trees, berries, etc.). The design of the panels will be finalised with the client during ordering.

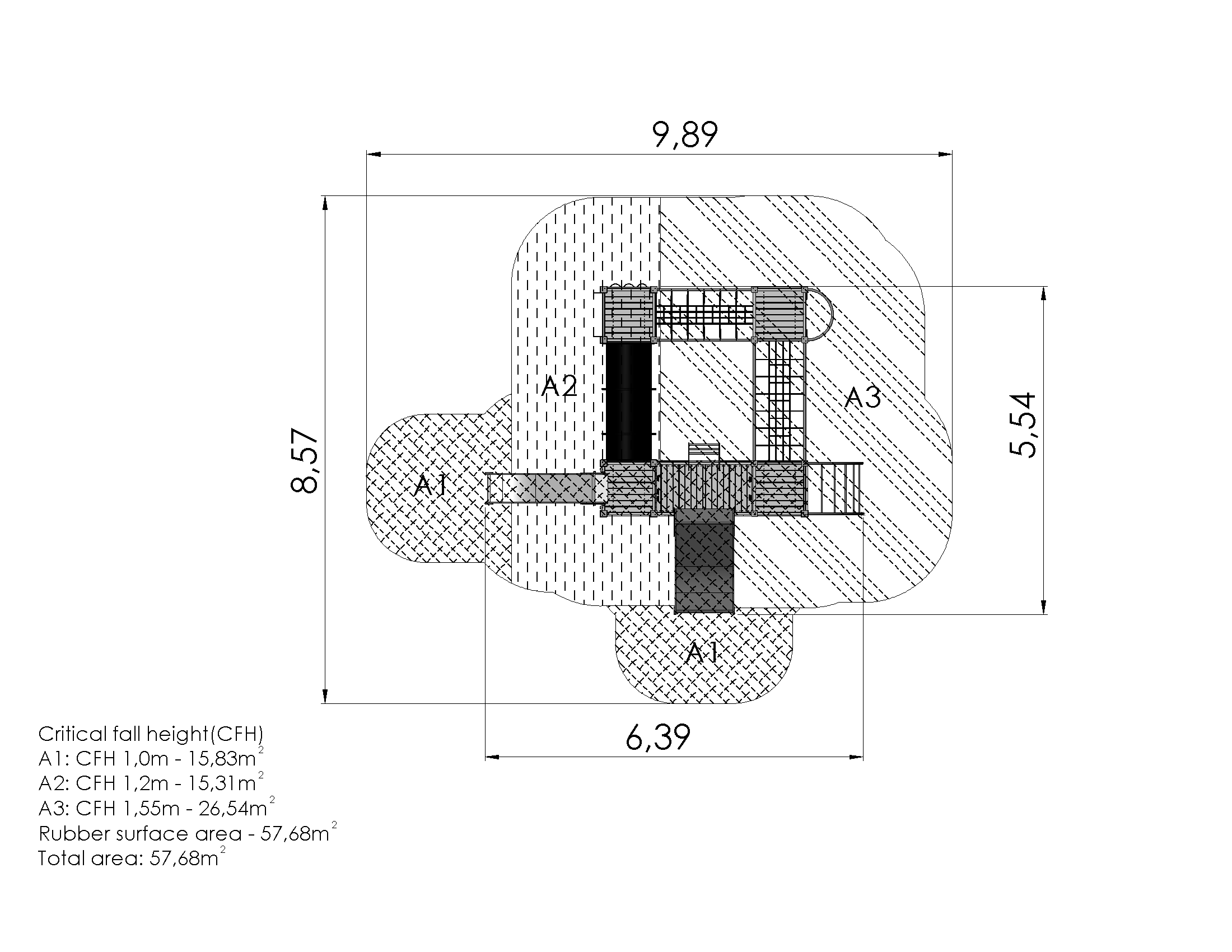

    Safety area

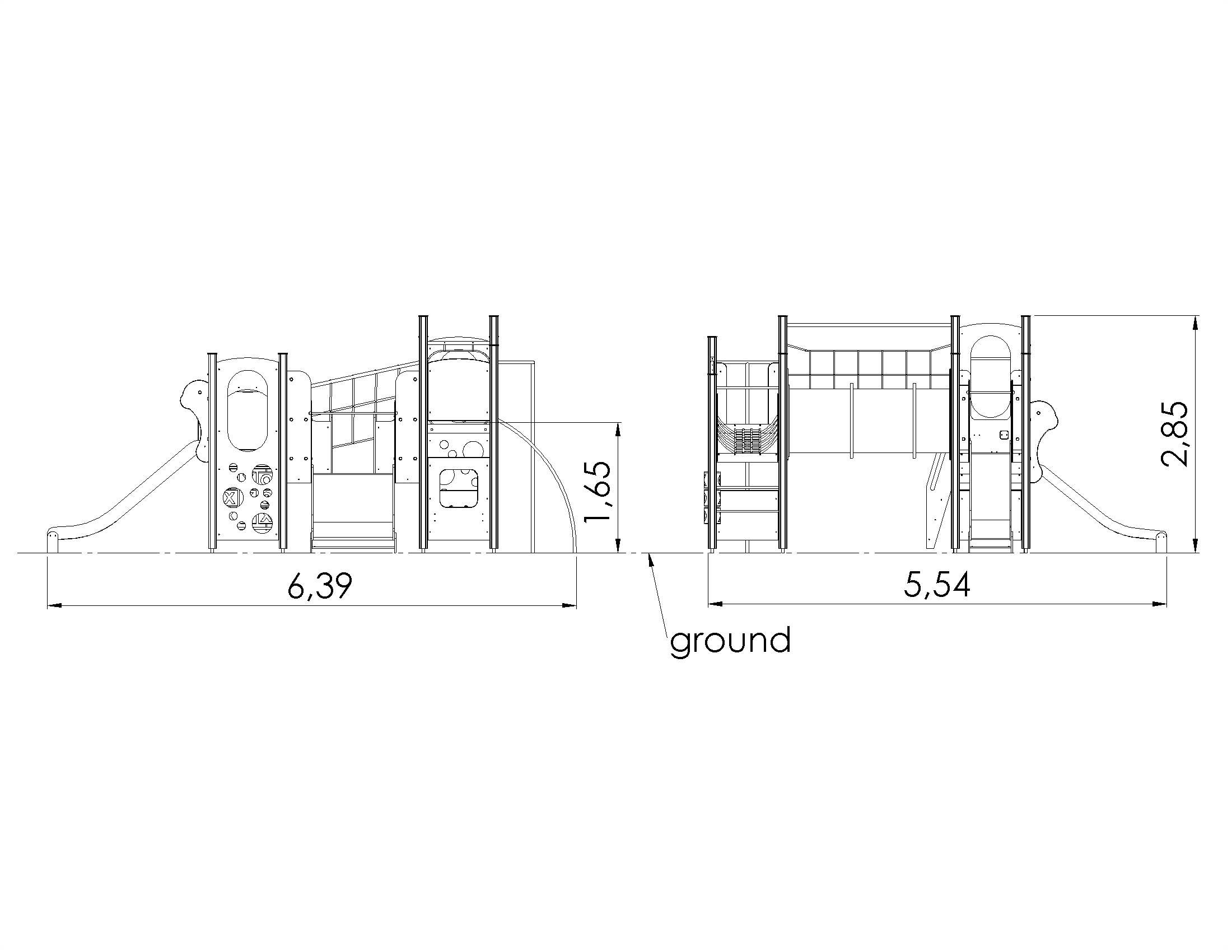

    Side view

    Downloads+

    Material+

    Installation info+
