Home / Products / Playgrounds / Play centres / Play Centre CONRAD

Product code:

Play Centre CONRAD

  • 4 y
  • 1.55 m
  • 3.65 m
  • 4.44 m
  • 3.82 m
  • TUV Logo

Colour options

Material

+

    Specifications-

    Technical information

    Safety area width6.65 m
    Safety area length7.94 m
    Width of structure3.65 m
    Length of structure4.44 m
    Height of structure3.82 m
    Max. fall height1.55 m
    The product needs a safety surface
    Recommended age of children4+
    For simultaneous use by several children4-8

    Product consists of

    Platforms2 pcs with a height 1.55 m
    Roofs1 pcs
    Slides1 pcs with a height 1.55 m
    Climbing nets1 pcs
    Bridges1 pcs
    Fireman poles1 pcs
    Posts6 pcs
    Panels/Plates3 pcs
    Tubes3 pcs

    Product description

    Play centre with two platforms, accessed via an arched path or a net slope. A slide a the fireman’s pole offer a way to slide down. The side panels of the play centre can be switched for various activity walls or thematic printed panels (animals, birds, fish, trees, berries, etc.). The design of the panels will be finalised with the client during ordering.

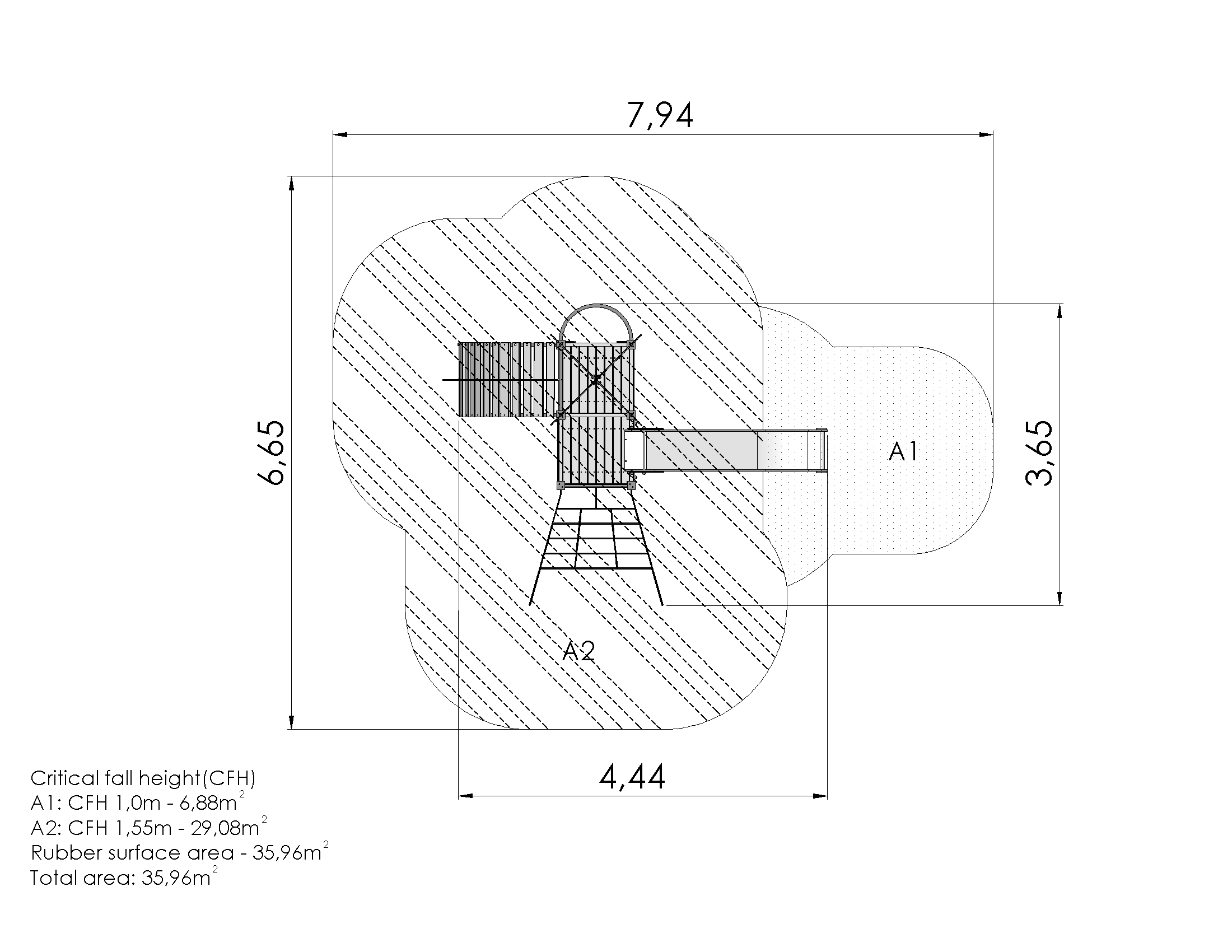

    Safety area

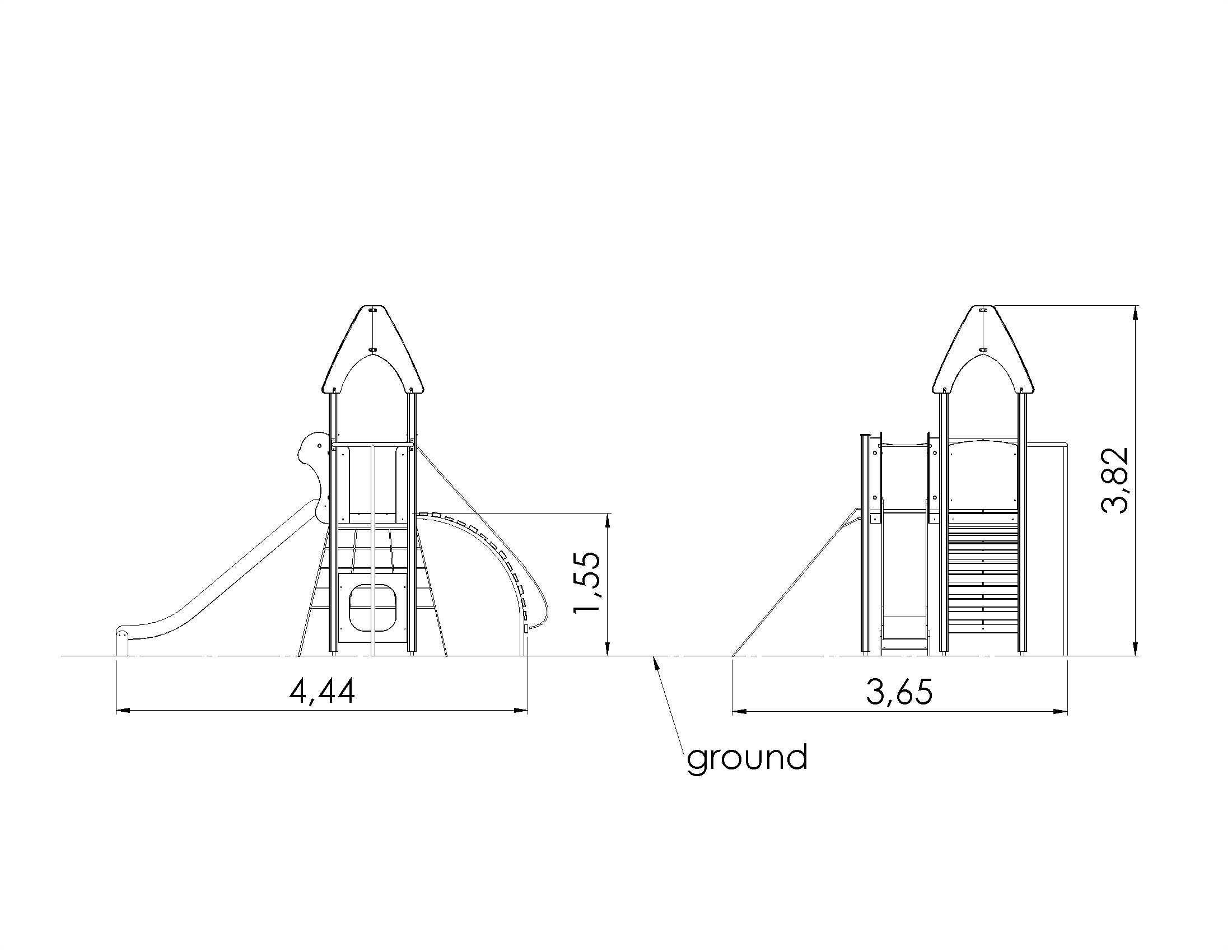

    Side view

    Downloads+

    Material+

    Installation info+

    Creating a world of fun
