Product code: LM213 FORP PE

Play Centre DANIEL

  • 4 y
  • 1.55 m
  • 3.51 m
  • 4.74 m
  • 3.82 m
  • TUV Logo

Colour options

Material

+

Specifications-

Technical information

Safety area width6.58 m
Safety area length8.24 m
Width of structure3.51 m
Length of structure4.74 m
Height of structure3.82 m
Max. fall height1.55 m
The product needs a safety surface
Recommended age of children4+
For simultaneous use by several children4-8

Product consists of

Platforms2 pcs with a height 1.55 m
Plastic covered laminated wood
Roofs2 pcs
HDPE plastic
Slides1 pcs with a height 1.55 m
Stainless-steel, HDPE plastic sides
Climbing nets1 pcs
16 mm six-strand PES cover braided steel ropes
Bridges1 pcs
Slopes1 pcs
Plywood
Fireman poles1 pcs
Galvanized and powder-coated steel
Play corners1 pcs
Plastic and wood
Activity panels1 pcs
HDPE plastic
Posts8 pcs
Laminated wood
Panels/Plates3 pcs
HDPE plastic
Tubes6 pcs
Galvanized and powder coated steel

Product description

A play centre with two platforms, a net bridge with handrails, a rock climbing slope, a net ramp, a fireman’s pole and a slide. The centre has a fun play corner with a bench, which can be fitted with kitchen or car dashboard elements. The side panels of the play centre can be switched for various activity walls or thematic printed panels (animals, birds, fish, trees, berries, etc.). The design of the panels will be finalised with the client during ordering.

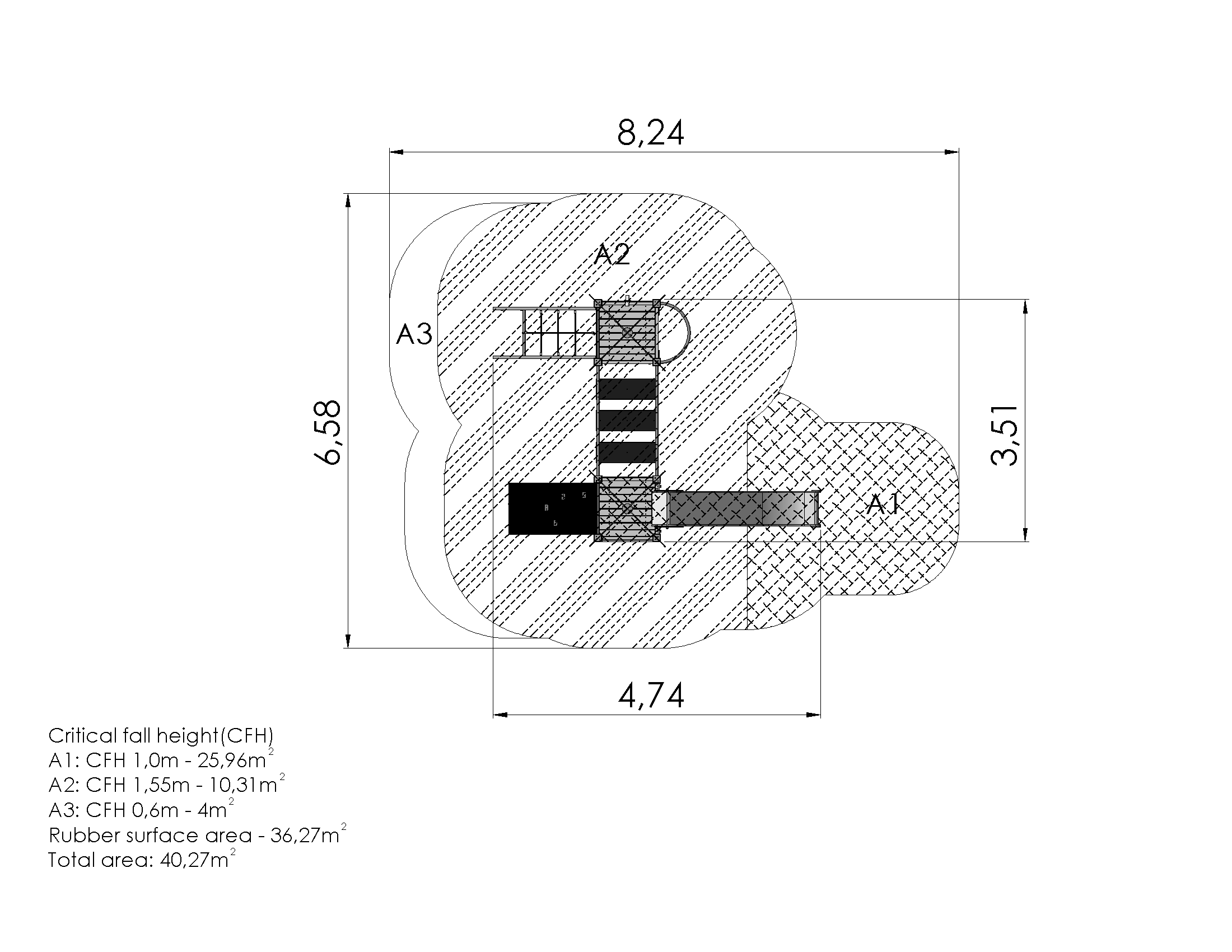

Safety area

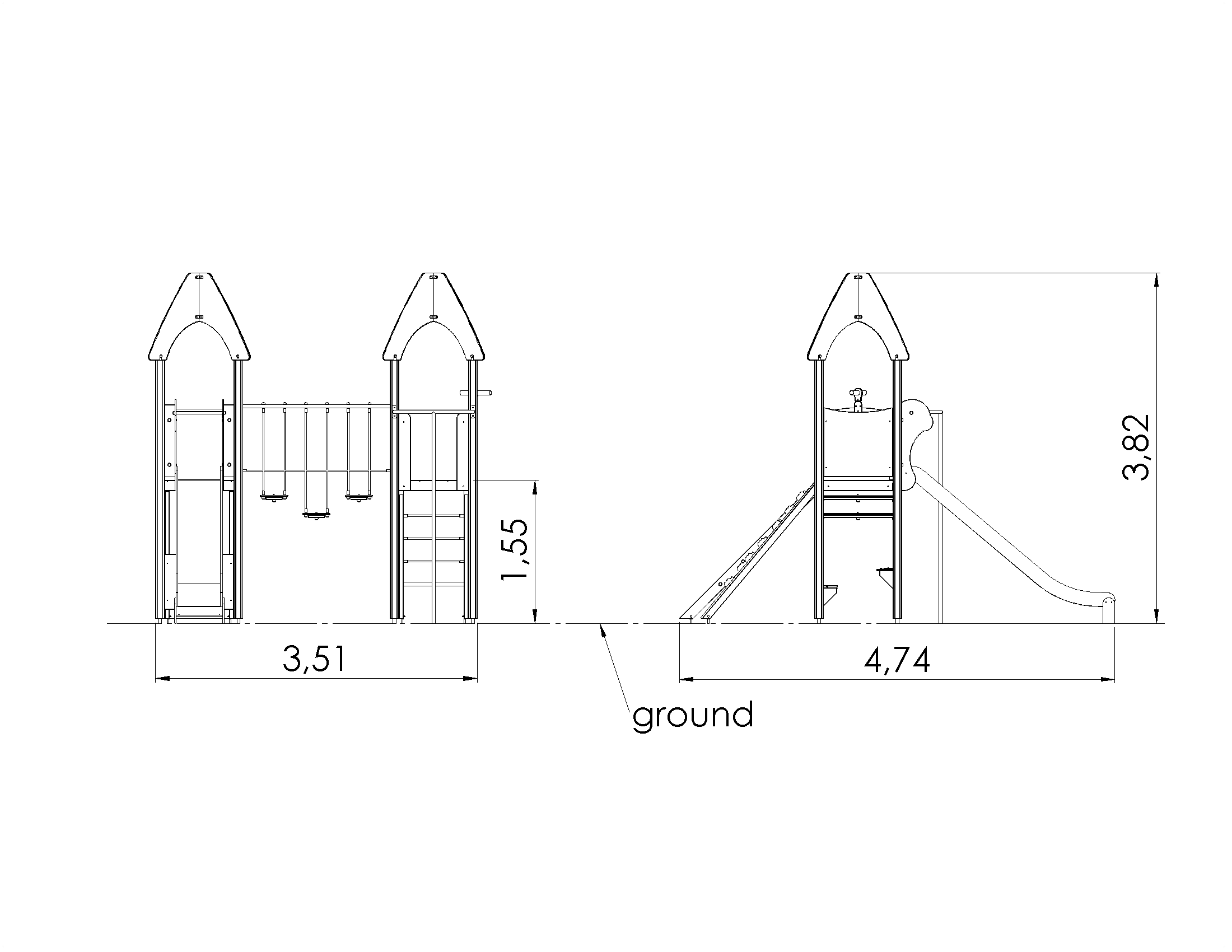

Side view
