Home / Products / Playgrounds / Play centres / Play Centre ELISABETH

Product code:

Play Centre ELISABETH

  • 4 y
  • 1.92 m
  • 7.47 m
  • 8.21 m
  • 3.92 m
  • TUV Logo

Colour options

Material

+

    Specifications-

    Technical information

    Safety area width10.47 m
    Safety area length12.04 m
    Width of structure7.47 m
    Length of structure8.21 m
    Height of structure3.92 m
    Max. fall height1.92 m
    The product needs a safety surface
    Recommended age of children4+
    For simultaneous use by several children10-20

    Product consists of

    Platforms2 pcs with a height 1.55 m
    Platforms2 pcs with a height 1.2 m
    Roofs3 pcs
    Slides1 pcs with a height 1.55 m
    Climbing walls2 pcs
    Climbing nets3 pcs
    Bridges4 pcs
    Tunnels1 pcs
    Slopes2 pcs
    Fireman poles1 pcs
    Posts24 pcs
    Panels/Plates9 pcs
    Tubes31 pcs

    Product description

    This fun and versatile play centre with four platforms and several additional elements is every kids dream. The centre can be accessed via a ramp with rungs, a ladder or an arched path with a rope support. A suspension bridge with moving steps, a net bridge and a net tunnel that connect the platforms help practice balance and coordination. The centre offers three climbing walls of varying difficulty. A slide or a fireman’s pole make sliding down fun. The side panels of the play centre can be switched for various activity walls or thematic printed panels (animals, birds, fish, trees, berries, etc.). The design of the panels will be finalised with the client during ordering.

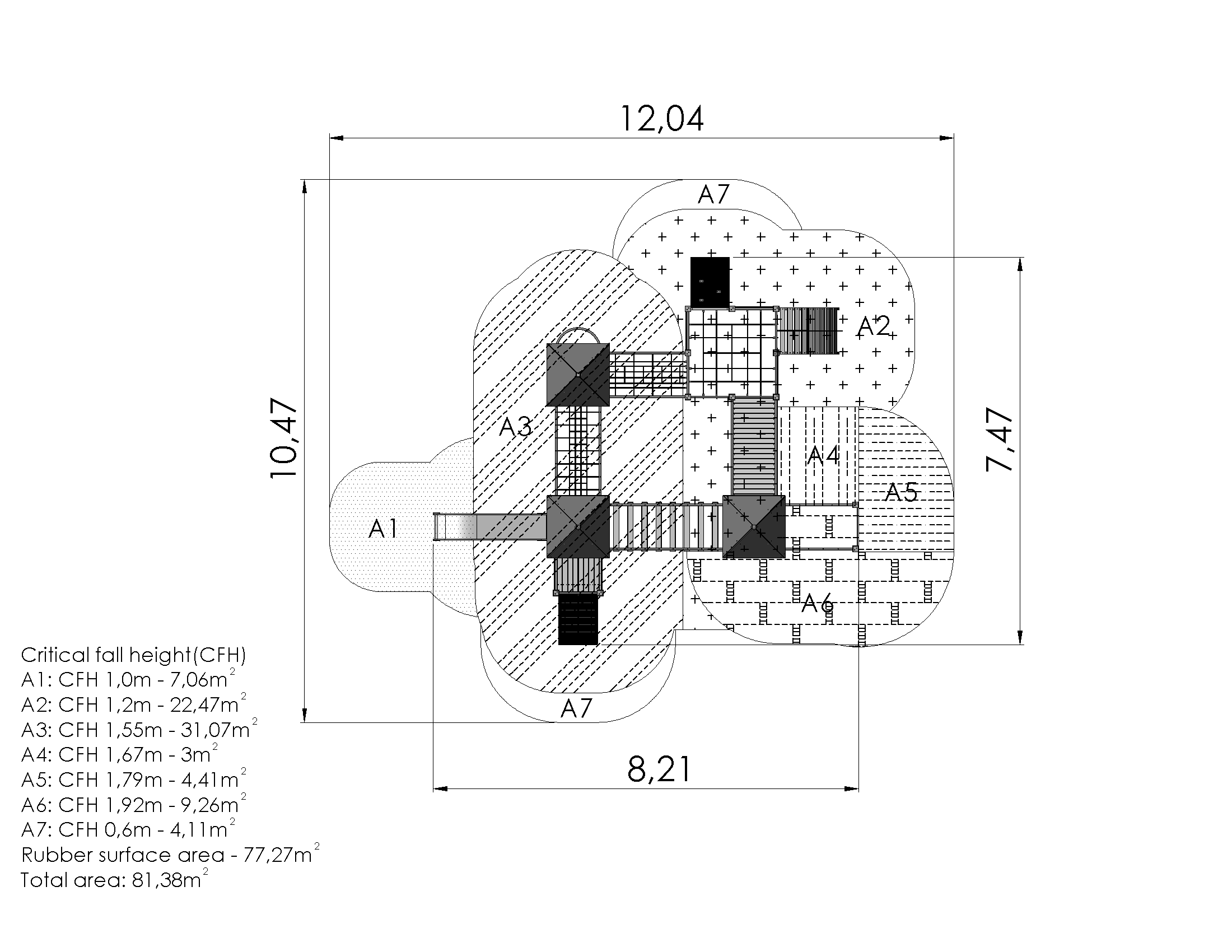

    Safety area

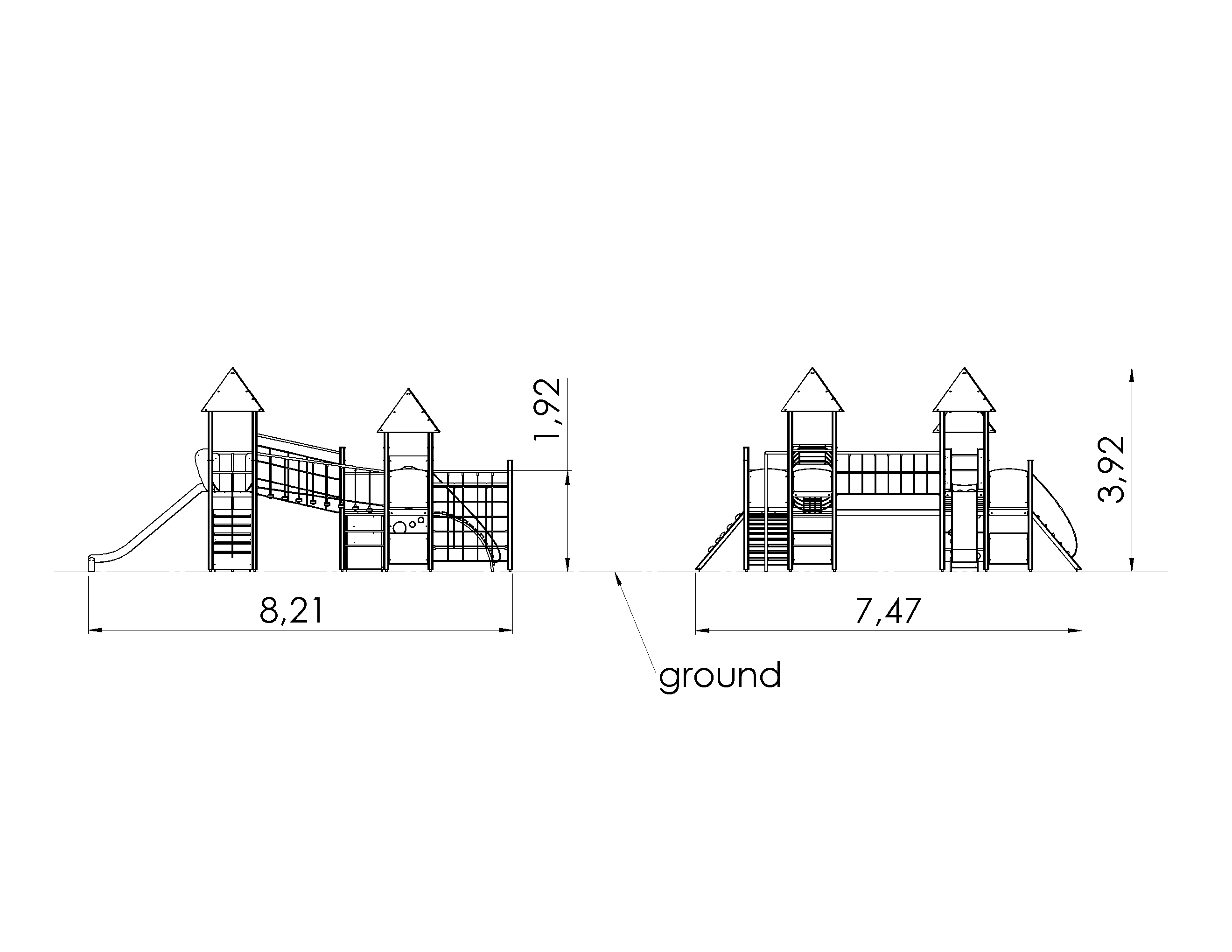

    Side view
