Home / Products / Playgrounds / Play centres / Play Centre KATARIINA

Product code: LM311 FORP PE

Play Centre KATARIINA

  • 1 y
  • 1.55 m
  • 6.64 m
  • 15.96 m
  • 5.57 m
  • TUV Logo

Colour options

Material

+

Specifications-

Technical information

Safety area width9.98 m
Safety area length18.57 m
Width of structure6.64 m
Length of structure15.96 m
Height of structure5.57 m
Max. fall height1.55 m
Recommended age of children1+
For simultaneous use by several children20-30

Product consists of

Platforms1 pcs with a height 2.85 m
Plastic covered laminated wood
Platforms4 pcs with a height 2.1 m
Plastic covered laminated wood
Platforms1 pcs with a height 1.55 m
Plastic covered laminated wood
Roofs1 pcs
HDPE plastic
Slides1 pcs with a height 0.95 m
Stainless-steel, HDPE plastic sides
Tunnel slides1 pcs with a height 2.85 m
Plastic
Climbing walls4 pcs
HDPE plastic
Climbing nets1 pcs
16 mm six-strand PES cover braided steel ropes
Bridges3 pcs
Tunnels3 pcs
Plastic
Stairs with handrails1 pcs
Plastic covered laminated wood
Fireman poles1 pcs
Galvanized and powder-coated steel
Activity panels19 pcs
HDPE plastic
Posts28 pcs
Laminated wood
Panels/Plates10 pcs
HDPE plastic
Tubes9 pcs
Galvanized and powder coated steel

Product description

Two-tiered play centre with five platforms and a large castle tower is fully suited for developmental play and offers activities for children of various age groups. The lower tier is created for toddlers and contains many elements that help develop their physical and motor skills. Stairs with handrails lead to the lower platform. To move on a balance bridge with moving steps, a net bridge, a sloping bridge or a rock climbing wall have to be crossed. The path is lined with moving and rotating activity walls, a clock, binoculars and several fine motor skills panels. A small and sturdy slide offers a way down. The platforms, tunnels and portholes for older children are housed on the higher tier and can be accessed via a ladder or a climbing wall with holes. The big, roofed platform offers two ways for sliding down: a tunnel slide or a fireman’s pole. Activity walls offer an abundance of fun activities and an extra level of joy. The two floors of the castle tower are connected by a rope climbing element, which provides a challenging climb between the two levels.

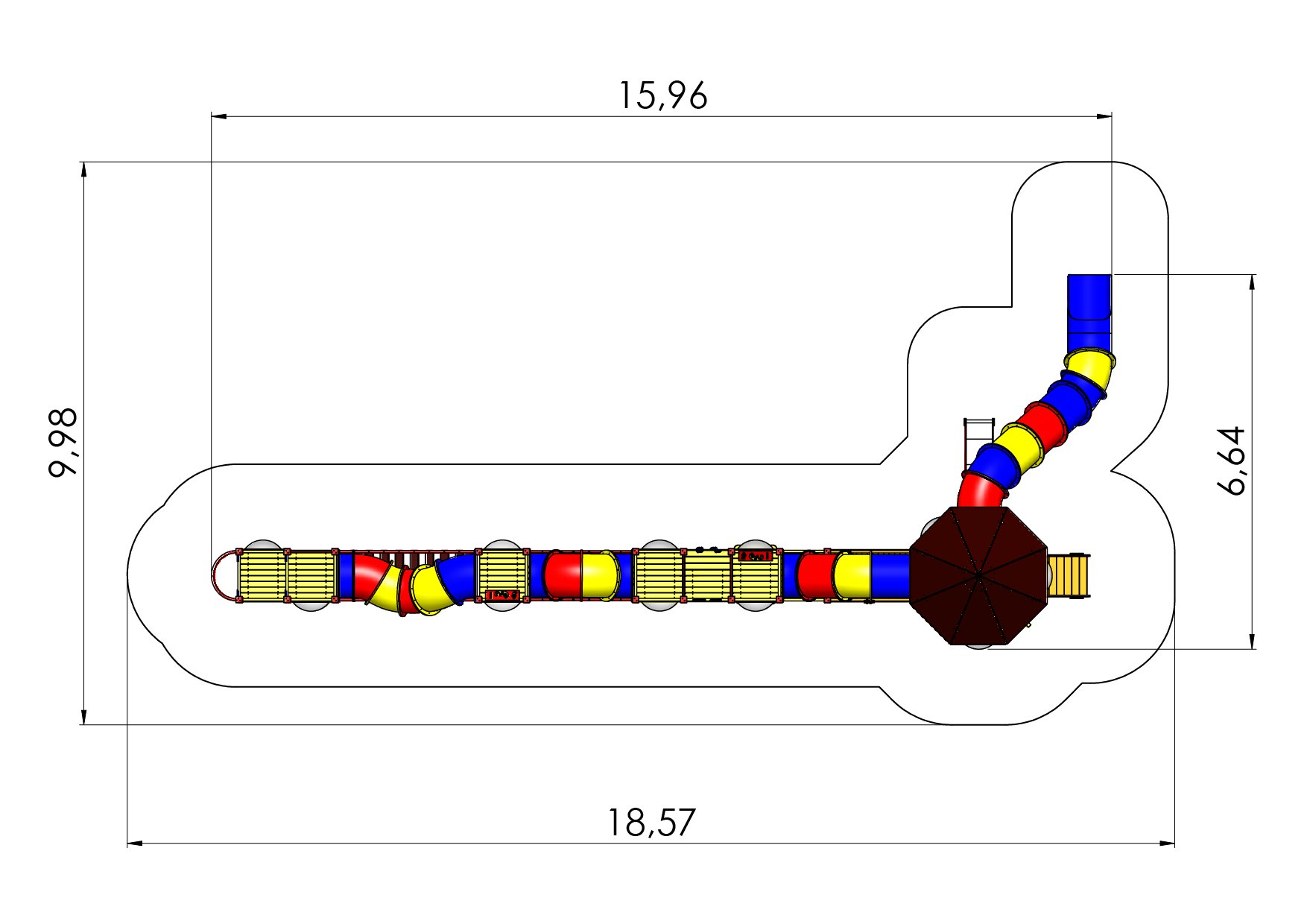

Safety area

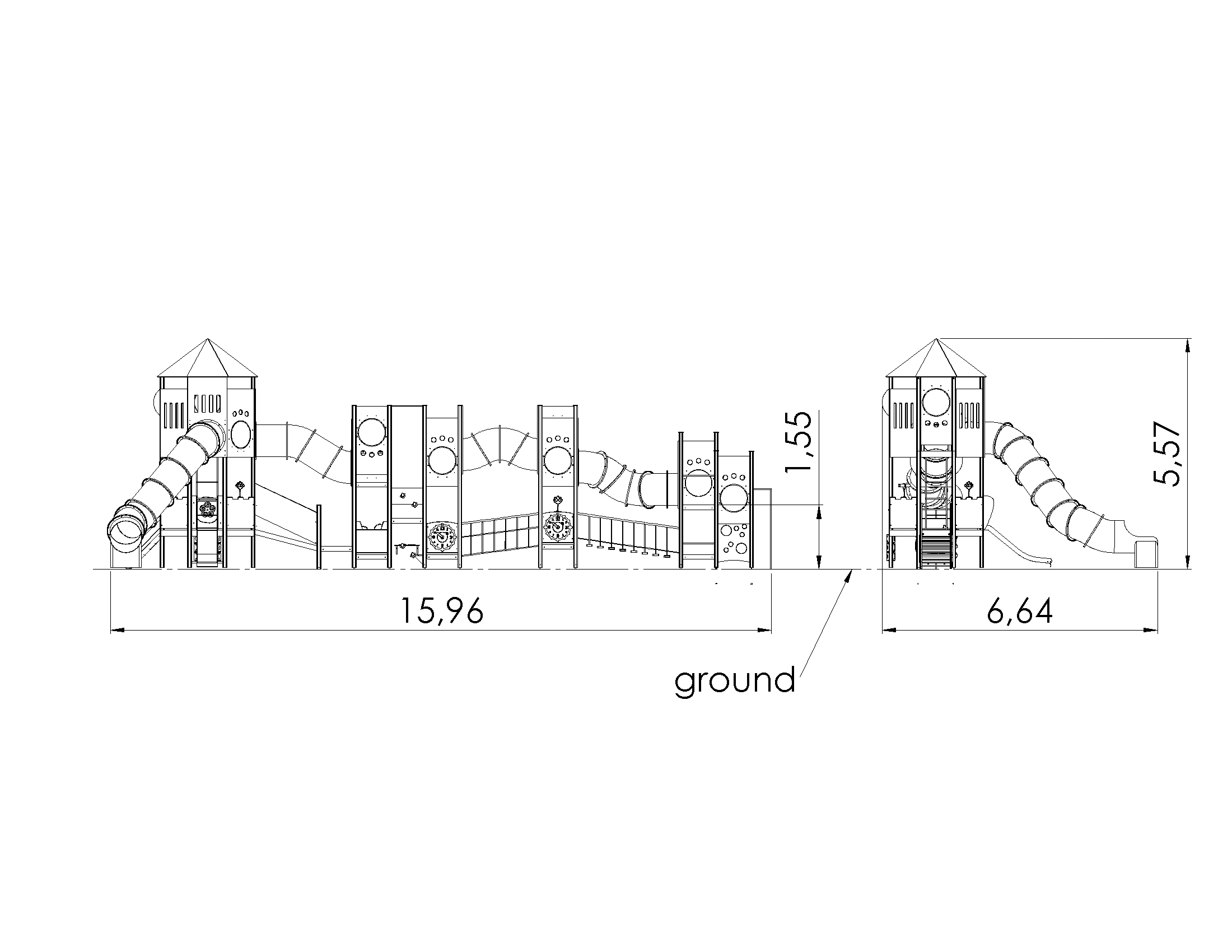

Side view

Downloads+

Material+

Installation info+

Creating a world of fun
