Home / Products / Series / TRIBUTE TO WILDLIFE / Slide GIRAFFE

Product code:

Slide GIRAFFE

  • 1 y
  • 2.17 m
  • 0.97 m
  • 5.45 m
  • 5.14 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width3.97 m
    Safety area length9.36 m
    Width of structure0.97 m
    Length of structure5.45 m
    Height of structure5.14 m
    Max. fall height2.17 m
    The product needs a safety surface
    Recommended age of children1+
    For simultaneous use by several children1-6

    Product consists of

    Platforms1 pcs with a height 2.15 m
    Slides1 pcs with a height 2.15 m
    Climbing walls1 pcs

    Product description

    Slide for a slope with a platform GIRAFFE that is shaped like a giraffe, provides engaging activities and joy with a 2,15 metres high slide.
    Product frame, support beams and metal details are made of hot-dipped galvanized steel, all fixing accessories from stainless steel. All side panels are made of 15 mm HDPE. The slide has got a stainless-steel sliding surface, which can be replaced by HDPE in case requested. Product’s ground fixings are made of hot-dip galvanized metal and as standard solution it is concreted into the ground.

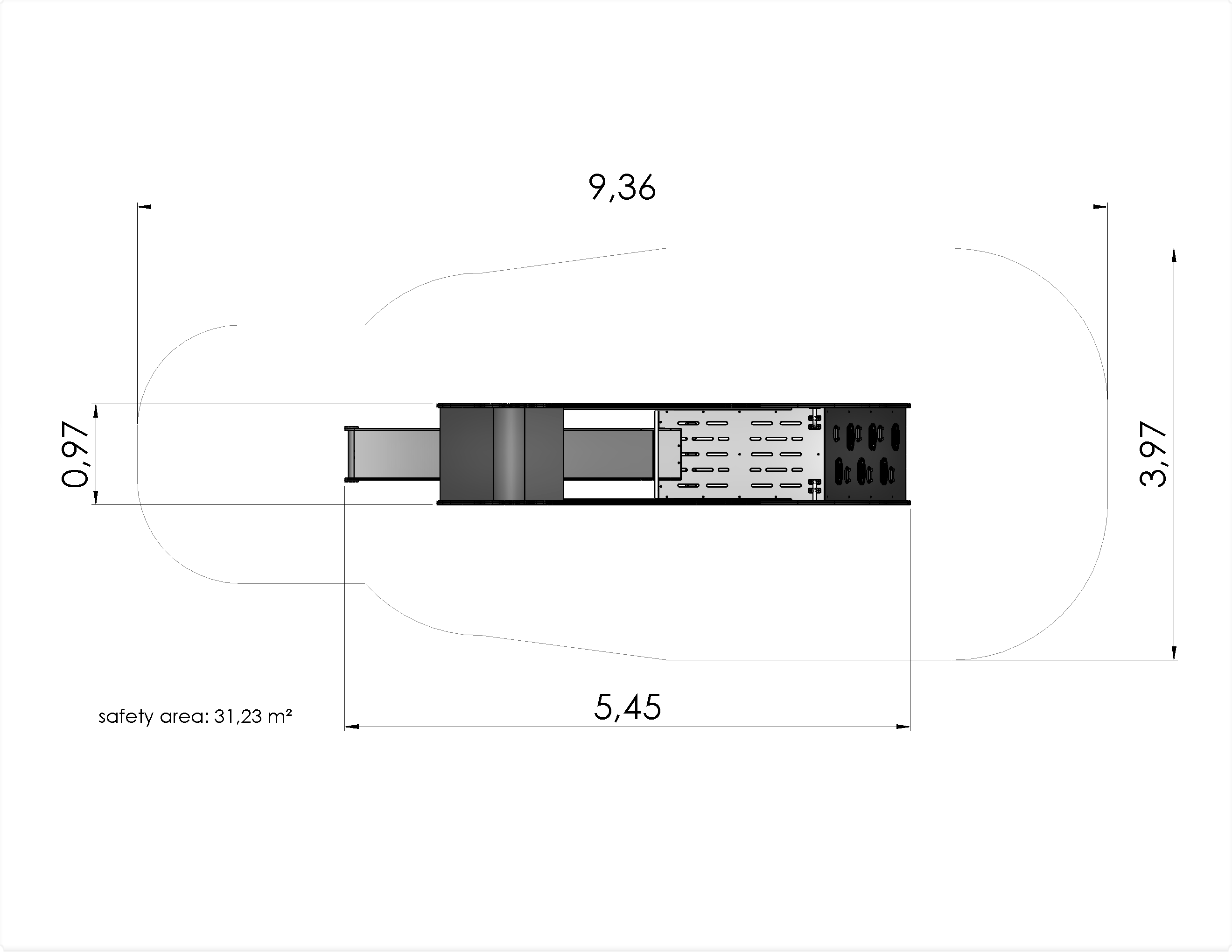

    Safety area

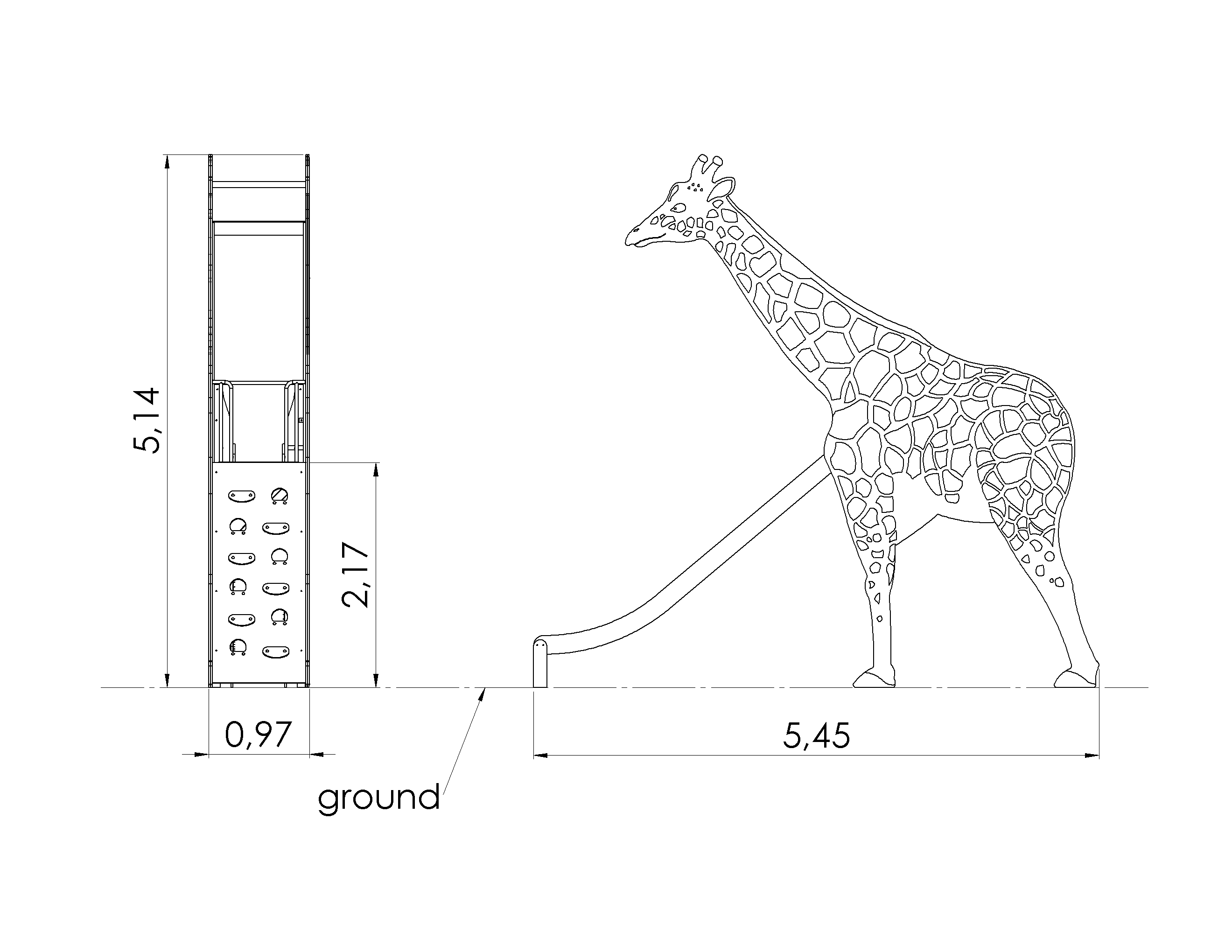

    Side view
