3D Planner
Home / Products / Sport and fitness / Street workout / STREET WORKOUT SET

Product code:

STREET WORKOUT SET

  • 12 y
  • 2.2 m
  • 1.29 m
  • 4.69 m
  • 2.5 m
  • TUV Logo
+

    Specifications-

    Technical information

    Width of structure1.29 m
    Length of structure4.69 m
    Height of structure2.5 m
    Max. fall height2.2 m
    Recommended age of children12+
    For simultaneous use by several children3-6

    Product description

    The product consists of: parallel bars, bars and tubes of different heights, a vertical ladder, a monkey bar. The construction of the device is made of vertical steel profiles measuring 80 x 80 mm with a wall thickness of 5 mm, and the training devices are attached to it with a bolt connection. Material: Powder-coated metal; hot-dip galvanised and powder-coated on request. The equipment is fixed to the ground by concreting, and an anchor bolt connection is available as a special solution. The set is TÜV certified according to the standard EN 16630: 2015.

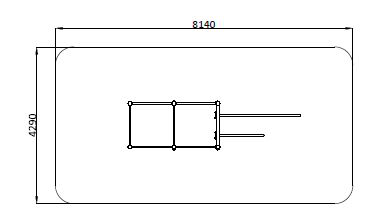

    Safety area

    Downloads+

    Material+

    Installation info+
